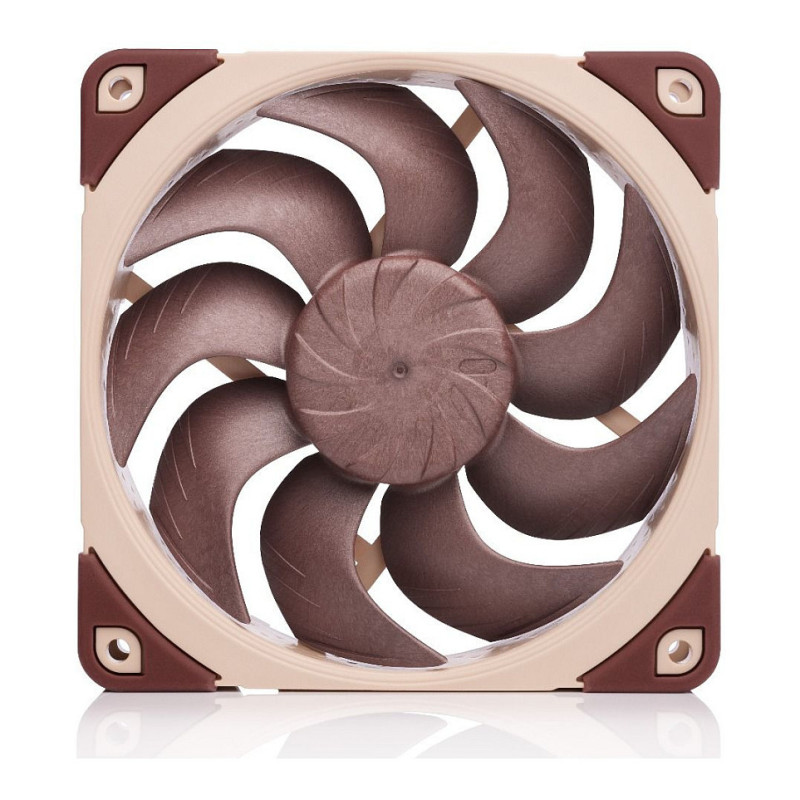

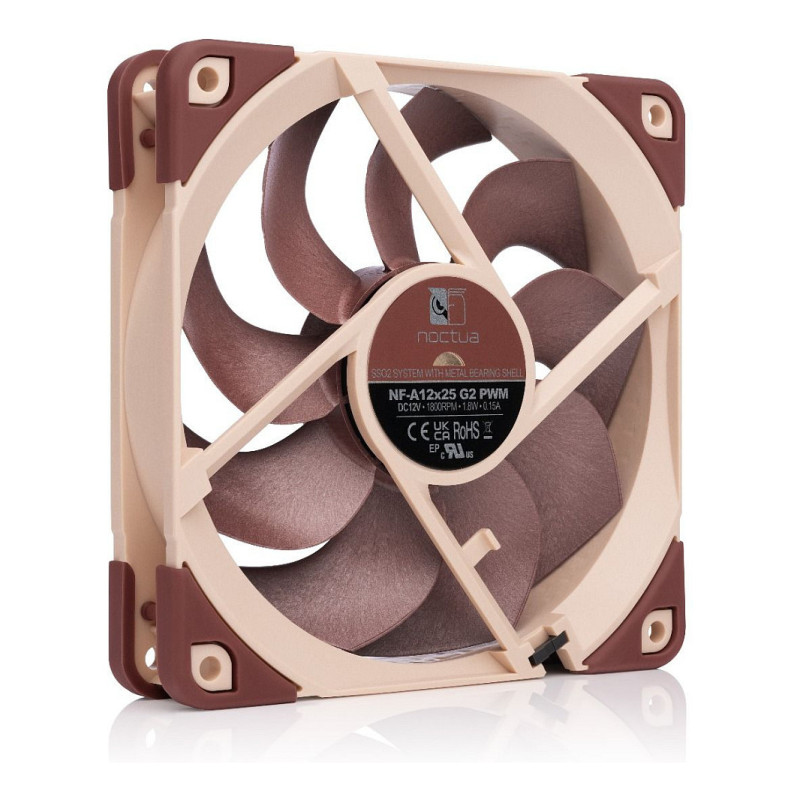

Noctua NF-A12x25 G2 PWM

Noctua NF-A12x25 G2 PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 1800 RPM, Airflow: 107.3 m³/h, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Voltage: 12 V. Width: 120 mm, Depth: 25 mm, Height: 120 mm. Product colour: Beige

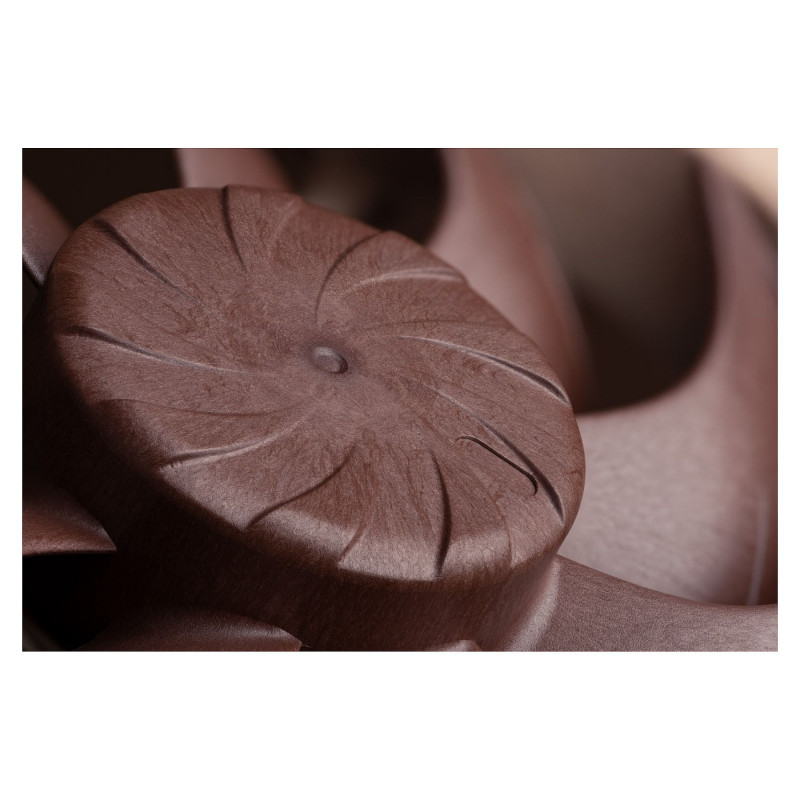

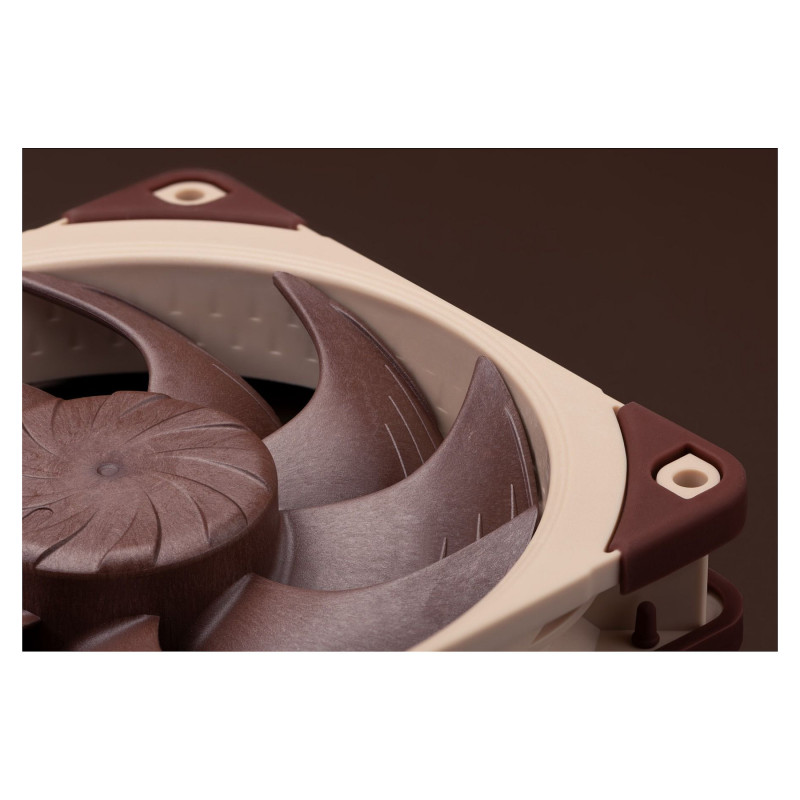

The NF-A12x25 G2 is the second-generation, further improved successor to the groundbreaking NF-A12x25 and 120mm sister model to the award-winning 140mm NF-A14x25 G2: Like its much-acclaimed predecessor, it is made from Sterrox® LCP and features an extremely tight tip-clearance of only 0.5mm. At the same time, its further optimised Progressive-Bend impeller with winglets, Flow Acceleration Channels and the new Centrifugal Turbulator Hub enable the G2 version to surpass the original NF-A12x25's performance, making it Noctua's undisputed new flagship in the 120mm range. Just like its predecessor and the 140mm version, the NF-A12x25 G2 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, static pressure demanding scenarios such as on heatsinks and water cooling radiators. For application-specific optimisation, the NF-A12x25 G2's AAO (Advanced Acoustic Optimisation) frame can be combined with the included NA-AVG1 anti-vibration gasket for a tighter seal on radiators or the optional NA-IS1-12 inlet side spacer frame, which can help to achieve superior suction acoustics and flow rates in challenging "pull" configurations. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 1800 to 1500rpm. Its ultra-low-loss etaPERF™ motor with Smooth Commutation Drive 2 technology doesn't only provide unprecedented energy efficiency and running smoothness, but thanks to the new SupraTorque™ feature, it can also leverage extra torque headroom to keep the fan at its desired speed when working against back pressure, thereby ensuring even better performance on heatsinks and radiators. Topped off with Noctua's reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer's warranty, the NF-A12x25 G2 is a premium-quality product through and through. Its superior performance, comprehensive feature set, cutting-edge construction and state-of-the-art materials set a new standard within Noctua's portfolio and make it an elite choice for the most discerning demands.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 1800 RPM
Noise level (high speed): 22.5 dB
Airflow: 107.3 m³/h
Feature: Pulse-width modulation (PWM) support
Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Quantity per pack: 1 pc(s)
Fan static pressure: 3.14 mmH2O
Pump's mean time to failure (MTTF): 15000 h

Design

Product colour: Beige
Material: Liquid Crystal Polymer (LCP)
Fan connector: 4-pin

Power

Power supply: 1.8 W
Voltage: 12 V
Maximum current: 0.15 A

Weight & dimensions

Width: 120 mm
Depth: 25 mm
Height: 120 mm
Cable length: 0.5 m

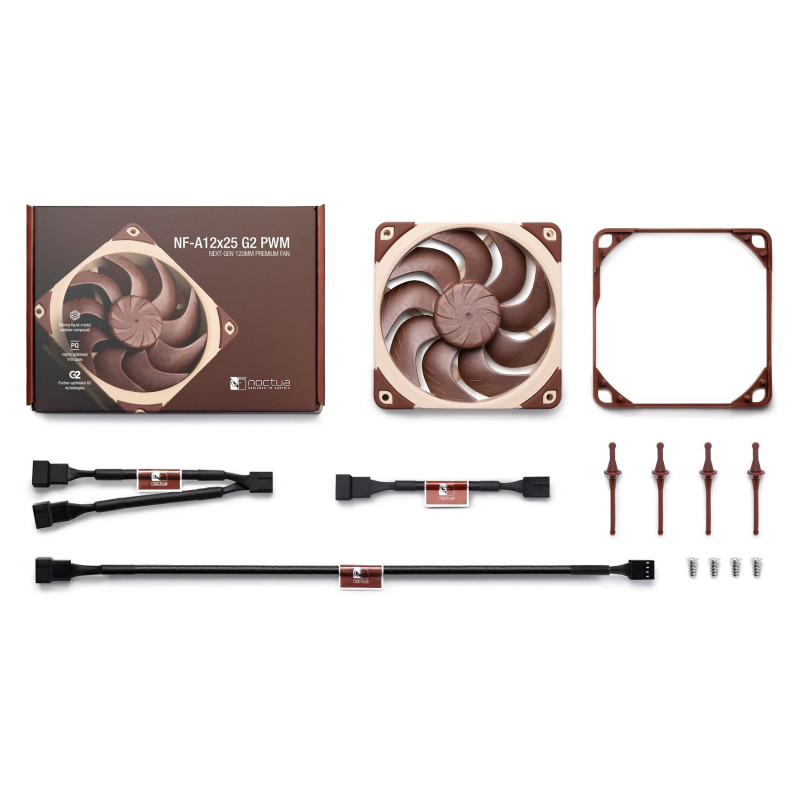

Packaging content

Cables included: 4-pin
Feature: Mounting kit
