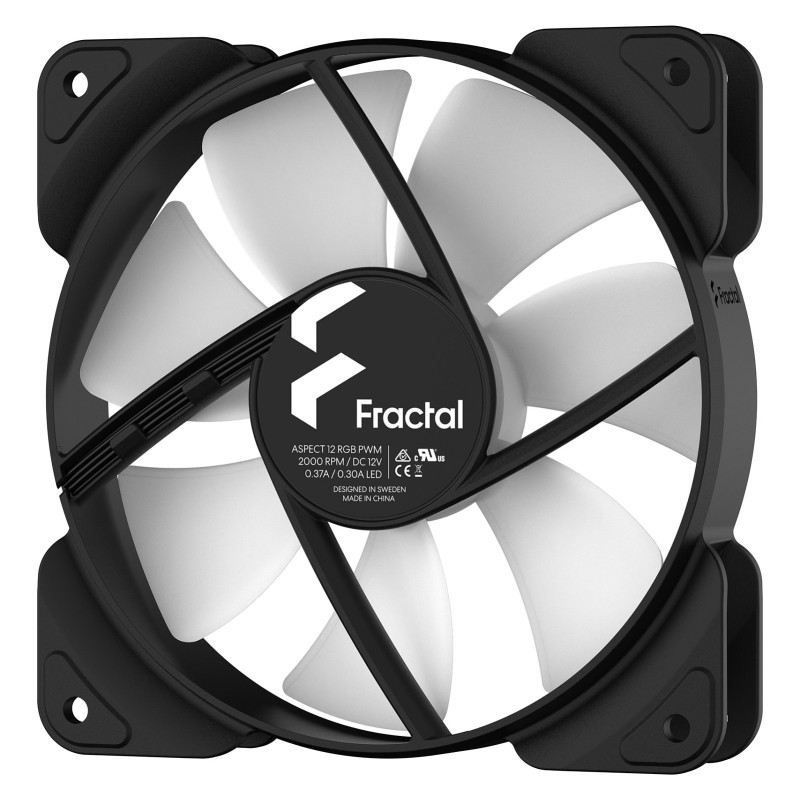

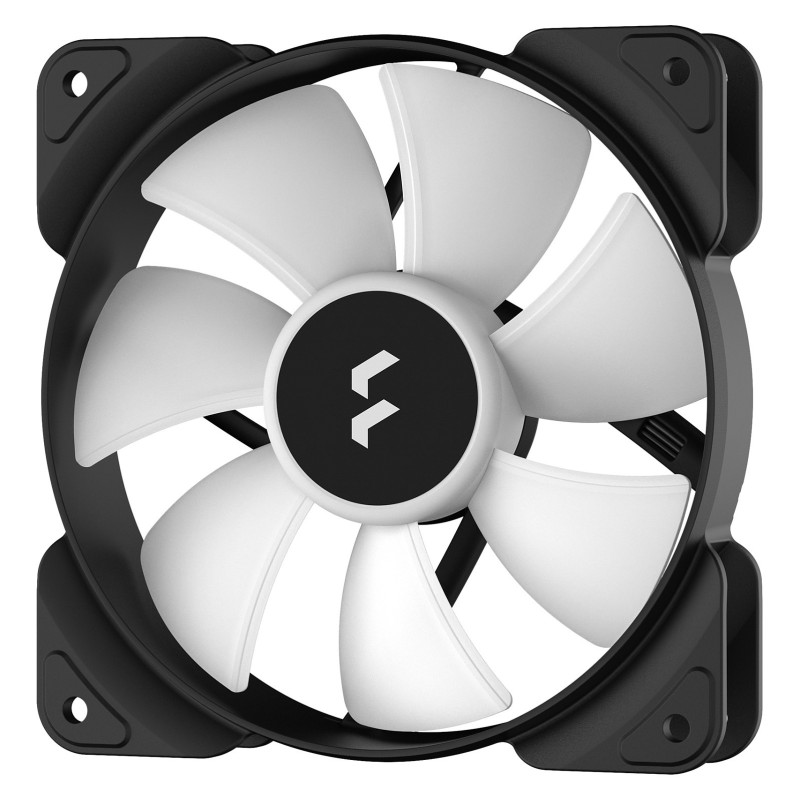

Fractal Design Aspect 12 RGB PWM

Fractal Design Aspect 12 RGB PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Airflow: 95.1 m³/h, Minimum air pressure: 0.23 mmH2O, Maximum air pressure: 2.34 mmH2O, Bearing type: Rifle bearing. Voltage: 12 V. Product colour: Black
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color

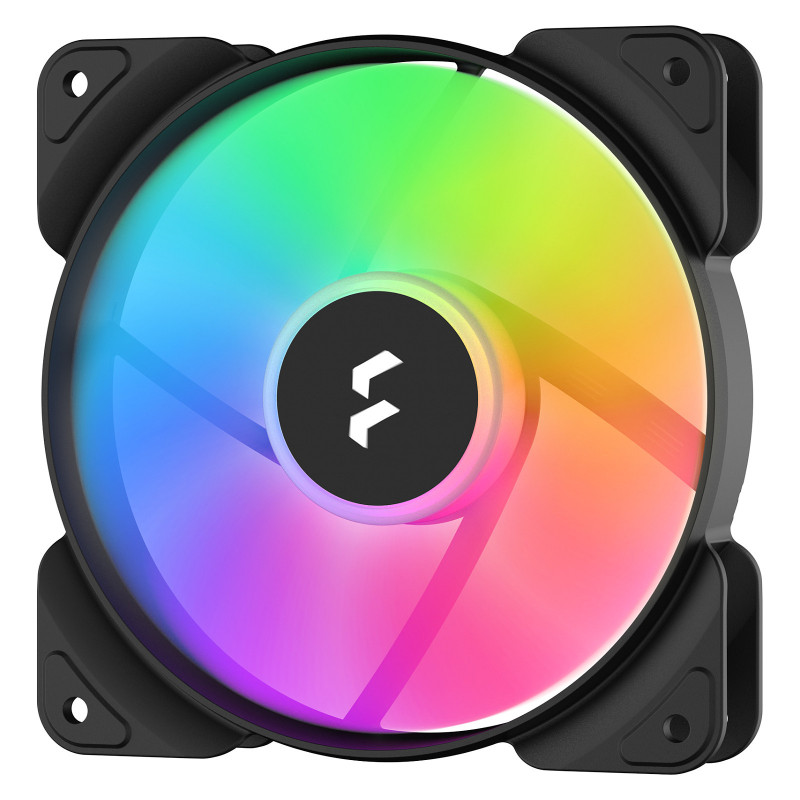

- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

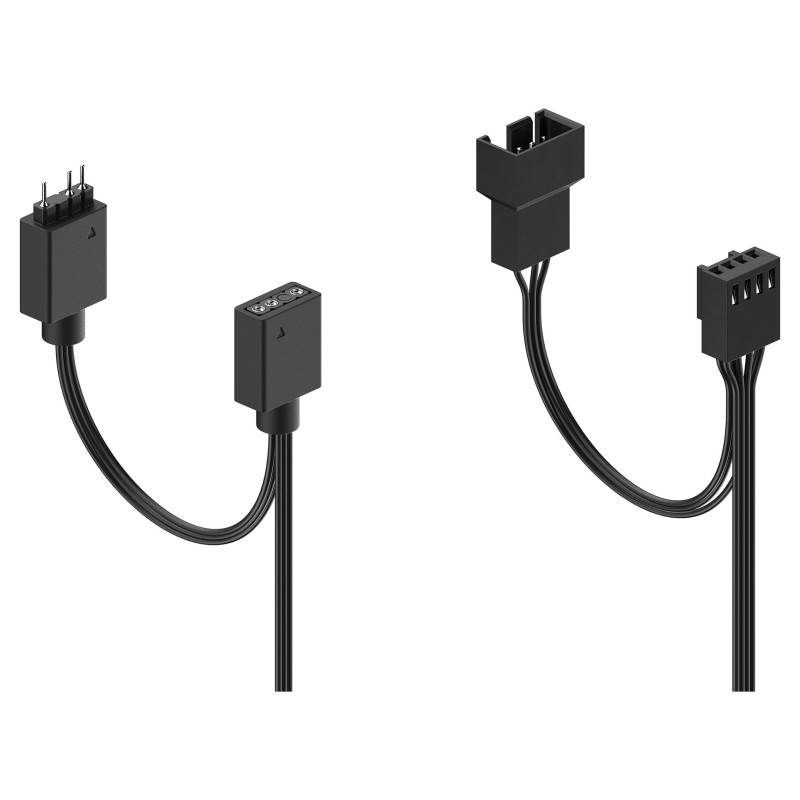

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (min): 500 RPM
Rotational speed (max): 2000 RPM
Noise level (low speed): 10 dB
Noise level (high speed): 33.2 dB
Minimum airflow (imperial): 13 cfm
Maximum airflow: 56 cfm
Airflow: 95.1 m³/h
Minimum air pressure: 0.23 mmH2O
Maximum air pressure: 2.34 mmH2O
Bearing type: Rifle bearing
Quantity per pack: 3 pc(s)
Mean time between failures (MTBF): 90000 h

Design

Product colour: Black
Number of fans: 3 fan(s)
Number of fan blades: 7
Feature: Illumination LED
Illumination colour: Multi
Fan connector: 4-pin

Power

Power consumption (typical): 1.68 W
Voltage: 12 V
Rated voltage: 5 V
Starting voltage: 7 V
Maximum current: 0.37 A

Weight dimensions

Weight: 135 g
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Cable length: 0.5 m
Package width: 123 mm
Package depth: 192 mm
Package height: 87 mm
Package weight: 408 g

Packaging content

Feature: Screws included
Number of screws: 12

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 84733080
