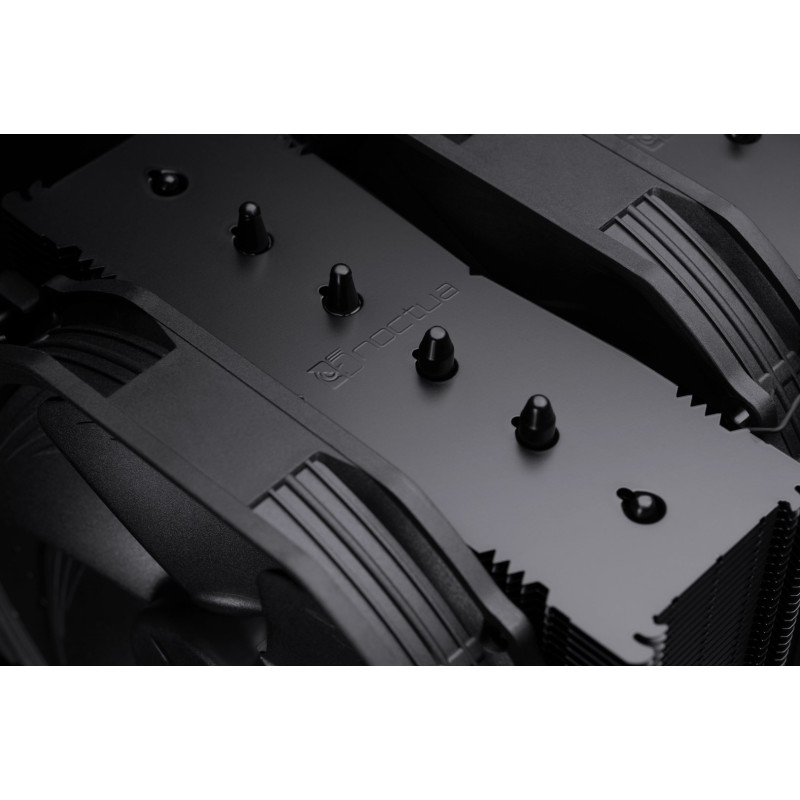

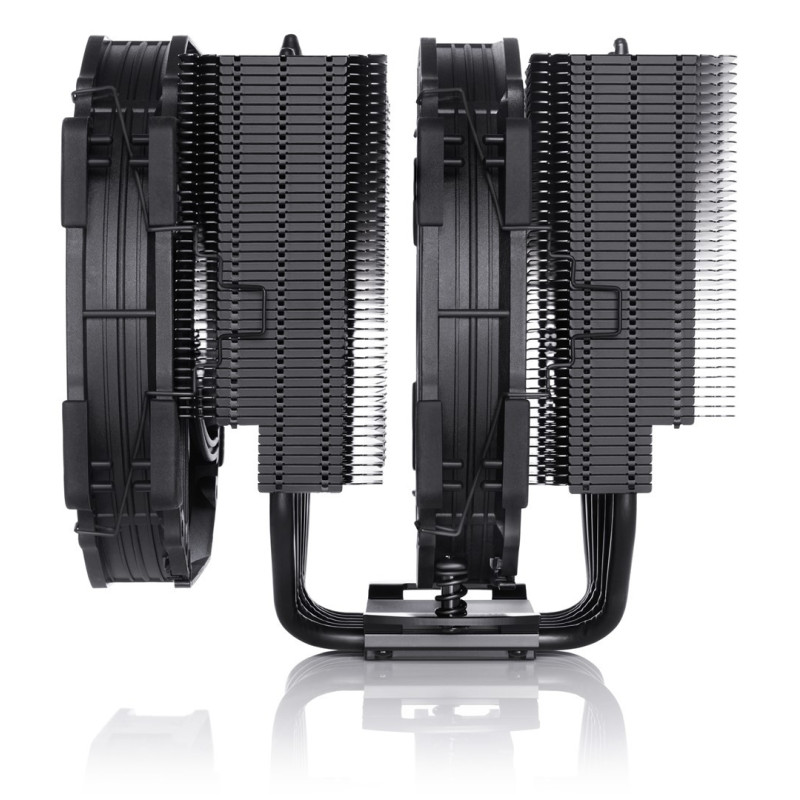

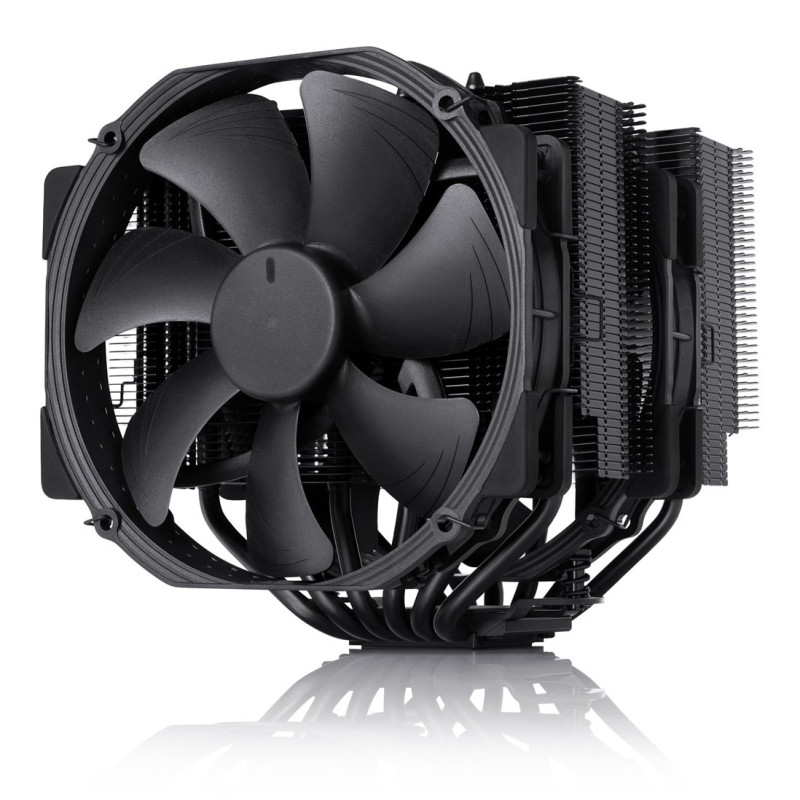

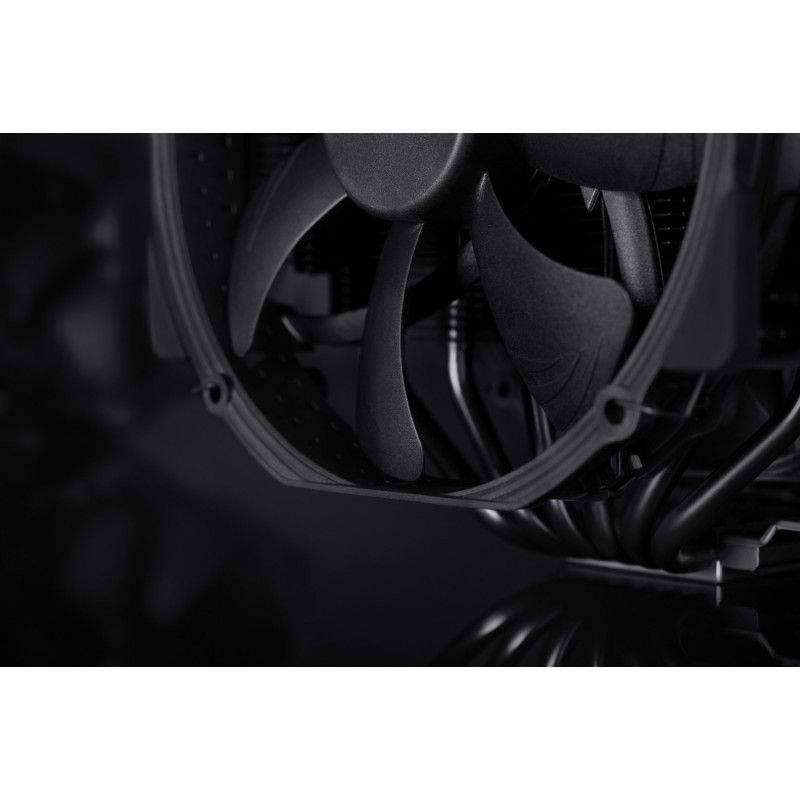

Noctua NH-D15 chromax.black has a dual-fan design with a 15 cm diameter and a copper base plate. It supports multiple processor sockets and has a maximum airflow of 140.2 m³/h with a noise level of up to 24.6 dB.
Design | |
|---|---|
| Product color | Black |
| Shoulder material | Aluminum |
| Number of fans | 2 fans |
| Fan connection | 4-pin |
| Base plate material | Copper |
Power | |
| Rated voltage | 12V |
| Rear power | 1.56W |
Weight and dimensions | |
| Package weight | 2.22 kg |
| Width | 150mm |
| Package width | 190 mm |
| Package height | 235 mm |
| Package depth | 268 mm |
| Depth | 161 mm |
| Weight | 1.32 kg |
| Height | 165 mm |
| Cooler weight | 980g |
Performance | |
| Compatible processor models | AMD A, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Pentium® |
| Supported processor sockets | Socket AM4, LGA 2011 (Socket R), Socket AM3+, Socket FM2+, Socket FM2, Socket AM2, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), Socket AM2+, LGA 1156 (Socket H), LGA 2066, Socket FM1, LGA 1155 (Socket H2), Socket AM3 |
| Maximum air pressure | 2.08 mmH2O |
| Minimum rotation speed | 300 RPM |
| Suitable location | Processor |
| Maximum rotation speed | 1500 RPM |
| Air flow | 140.2 m³/h |
| Fan diameter | 15 cm |
| Bearing type | Self-stabilizing oil pressure bearing (SSO) |
| PWM support | Yes |
Other features | |
| Cooler dimensions (W x D x H) | 150 x 135 x 160 mm |
| Mean Time to Failure (MTTF) | 150000 hours |
| Height | 235 mm |
| Length | 268 mm |
| Weight | 2220 grams |
| Width | 190 mm |
