Corsair RS120-R ARGB

Corsair RS120-R ARGB. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 420 RPM, Rotational speed (max): 2100 RPM, Minimum air pressure: 0.14 mmH2O, Maximum air pressure: 2.81 mmH2O, Bearing type: Magnetic levitation bearing. Height: 120 mm. Product colour: Black

VIBRANT VISIBILITY
FLAWLESS INTAKE LIGHTING

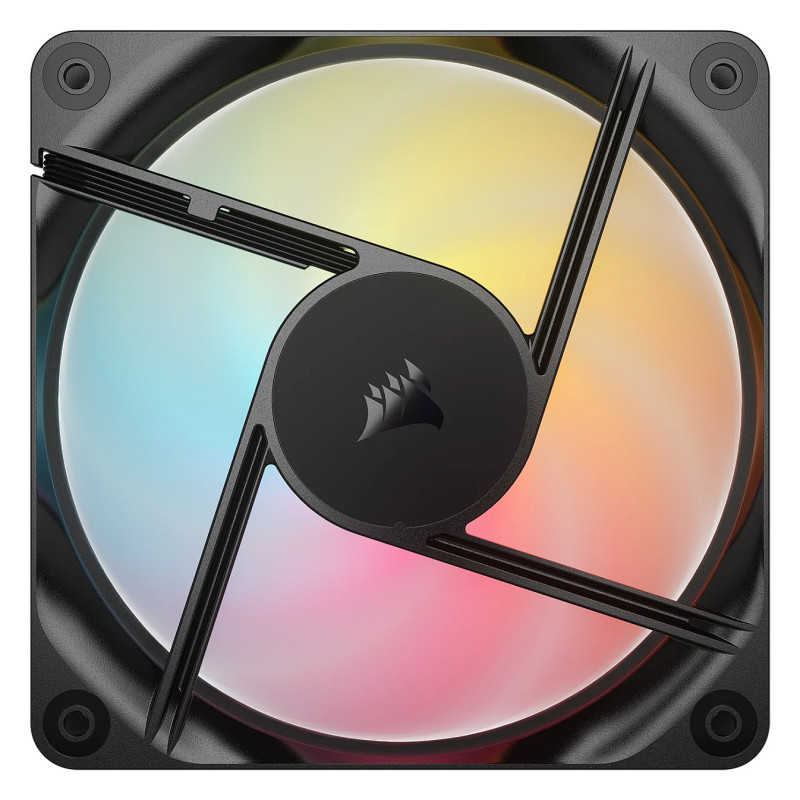

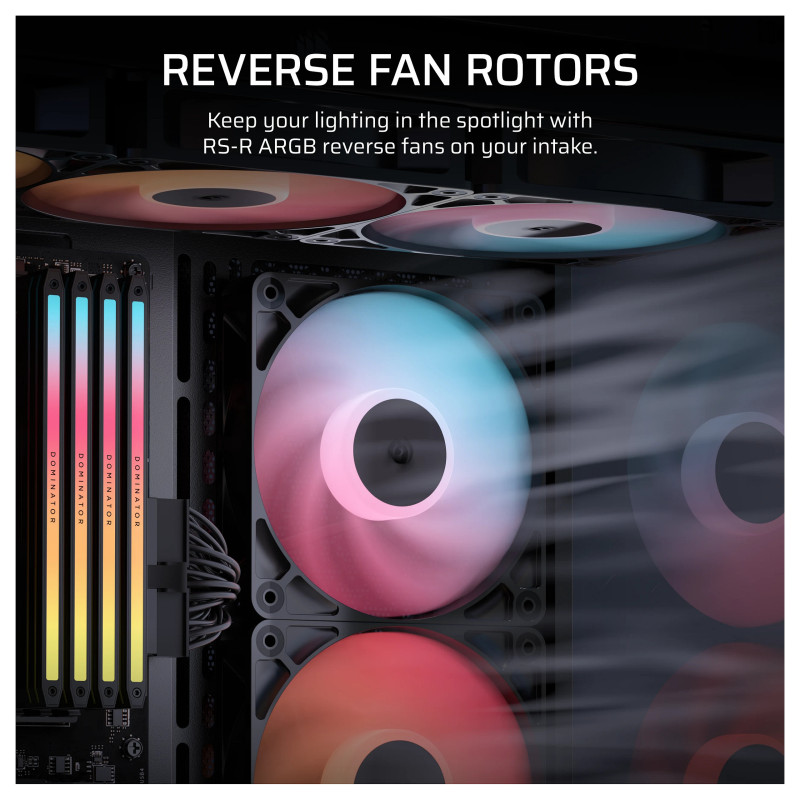

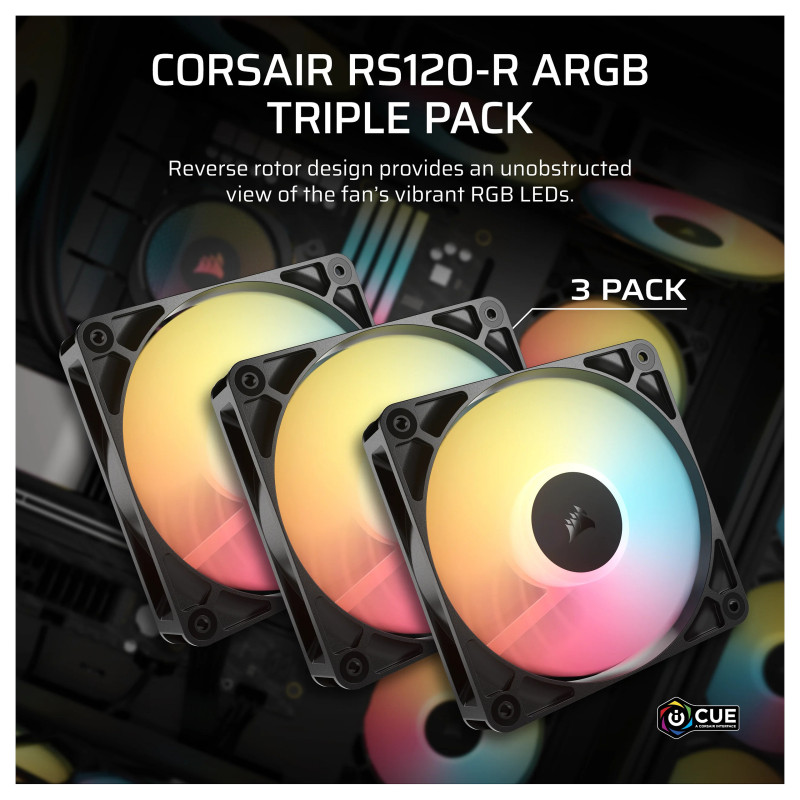

The reverse rotor fan design ensures your RGB lighting remains clearly visible when mounted as intake fans, with eight customizable RGB LEDs per fan creating dynamic, vibrant lighting.

STREAMLINED FAN CONNECTIONS

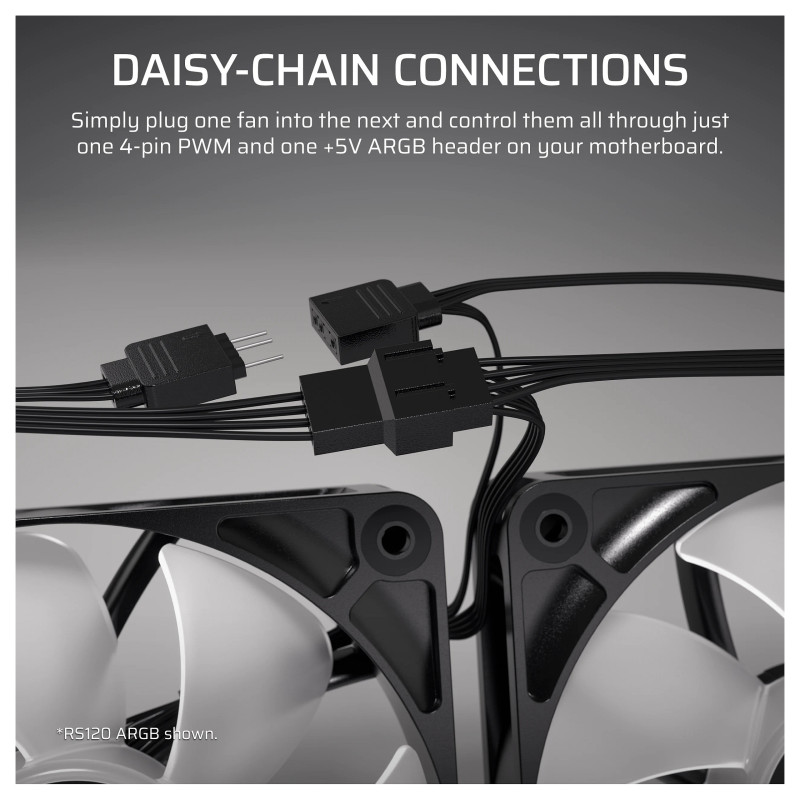

Skip the fan hubs and cable clutter by daisy chaining your RS-R ARGB Series fans in sequence, controlling them all through just one 4-pin PWM connector and one +5V ARGB connector on your motherboard.

LIGHTING MADE EASY

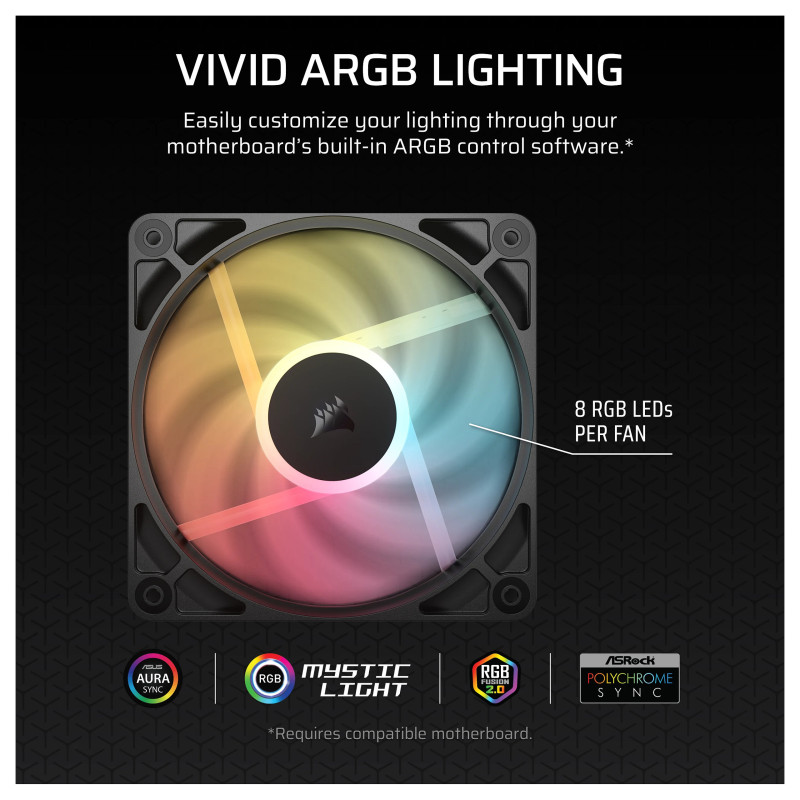

Simply plug in the fans and start customizing your RGB lighting with your motherboard's ARGB software suite, including ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome RGB, and Gigabyte RGB Fusion.

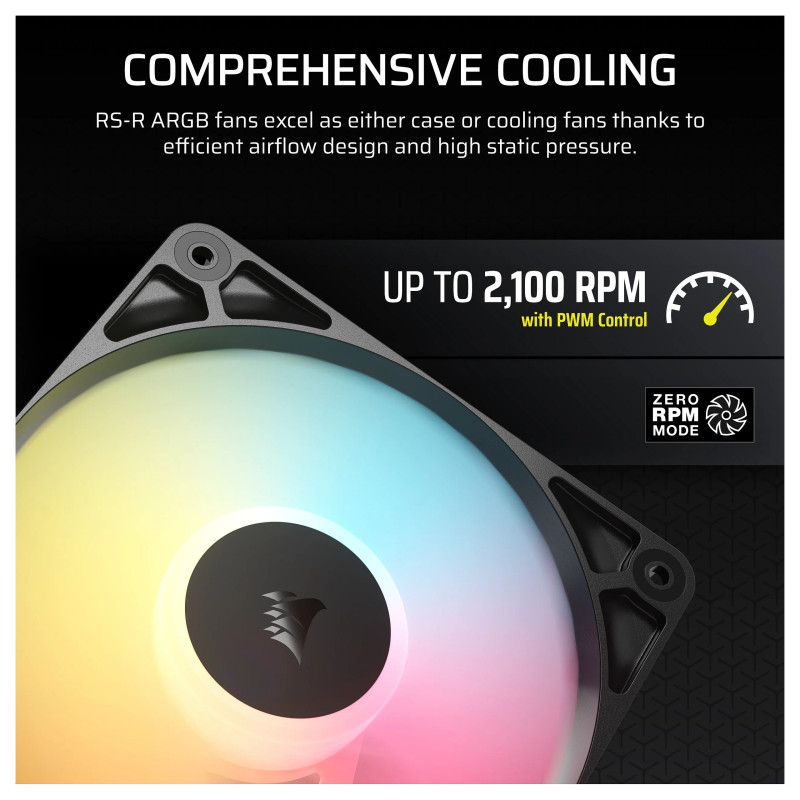

AIRFLOW AND STATIC PRESSURE
The best fans rely on several features, each focusing on how the fan handles air pressure and airflow as a radiator or case fan. RS-R ARGB fans were engineered to excel at both, offering concentrated cooling and powerful airflow with low noise.

BLADE SHAPE
With an optimized angle of attack, airfoil shape, and edge curvature, RS-R fans provide maximum airflow efficiency.

FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit for greater airflow.

PRECISE PWM CONTROL
PWM control allows adjustable fan speeds for optimal airflow and quiet operation based on system needs.

EVERY SOURCE OF NOISE ADDRESSED

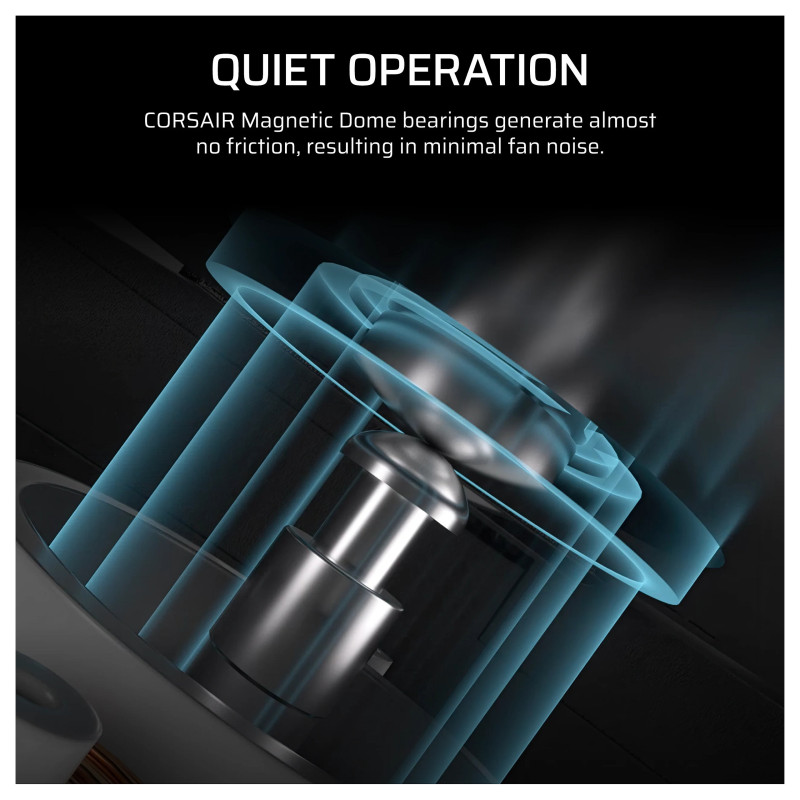

MAGNETIC DOME BEARING
This carefully-engineered bearing minimizes friction and mechanical noise, delivering a balance between high airflow performance with a low acoustic footprint while providing greater fan longevity.

WHISPER QUIET
ZERO RPM MODE
PWM control allows you to precisely adjust fan speeds, ensuring they spin only as fast as necessary to minimize noise. With Zero RPM support, fans can stop spinning completely at low loads, eliminating noise altogether.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 420 RPM
Rotational speed (max): 2100 RPM
Noise level (low speed): 10 dB
Noise level (high speed): 34.6 dB
Minimum airflow (imperial): 13.33 cfm
Maximum airflow: 65.82 cfm
Minimum air pressure: 0.14 mmH2O
Maximum air pressure: 2.81 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Magnetic levitation bearing

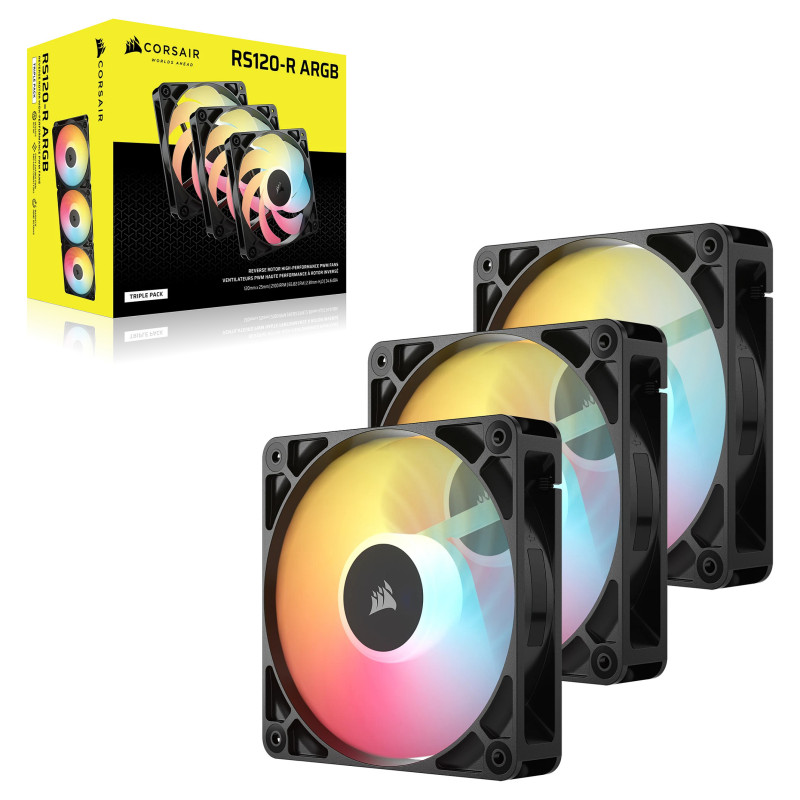

Quantity per pack: 3 pc(s)

Design

Product colour: Black
Number of fans: 1 fan(s)
Feature: Illumination LED
Number of LEDs: 8
Illumination colour: Multi
Fan connector: 4-pin
Display type: Not applicable

Power

LED voltage: 5 V
Fan current: 0.4 A

Weight & dimensions

Height: 120 mm
Weight: 704 g
Fan dimensions (W x D x H): 120 x 120 x 25 mm

Packaging content

Package type: Box

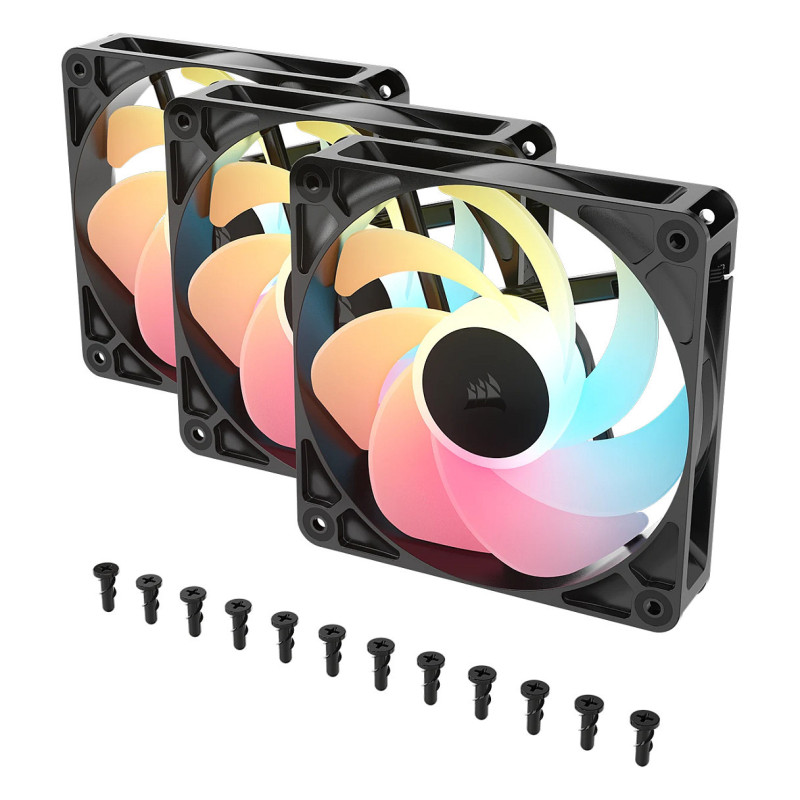

Feature: Screws included
Number of screws: 12
