PURE WINGS 3
140mm PWM HS 3-Pack
PERFORMANT, PROGRESSIVE, QUIET
Pure Wings 3 140mm PWM high-speed Triple Pack is the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.
INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 140mm PWM high-speed Triple Pack features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 140mm PWM high-speed Triple Pack always operates at the desired speed, no matter the resistance.
OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 140mm PWM high-speed Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 140mm PWM high-speed Triple Pack.
FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.44mm/H2O, Pure Wings 3 140mm PWM high-speed Triple Pack is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.
ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 140mm PWM high-speed Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 140mm PWM high-speed Triple Pack a timeless classic and elegant addition to every gaming PC.
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 140mm PWM high-speed Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
| Airflow | 122.6 m³/h |
| Bearing type | Rifle bearing |
| Cable length | 0.46 m |
| Certification | RU |
| Compliance certificates | CE/RoHS/UKCA/WEEE |
| Fan connector | 4-pin |
| Fan current | 0.5 A |
| Fan diameter | 140 mm |

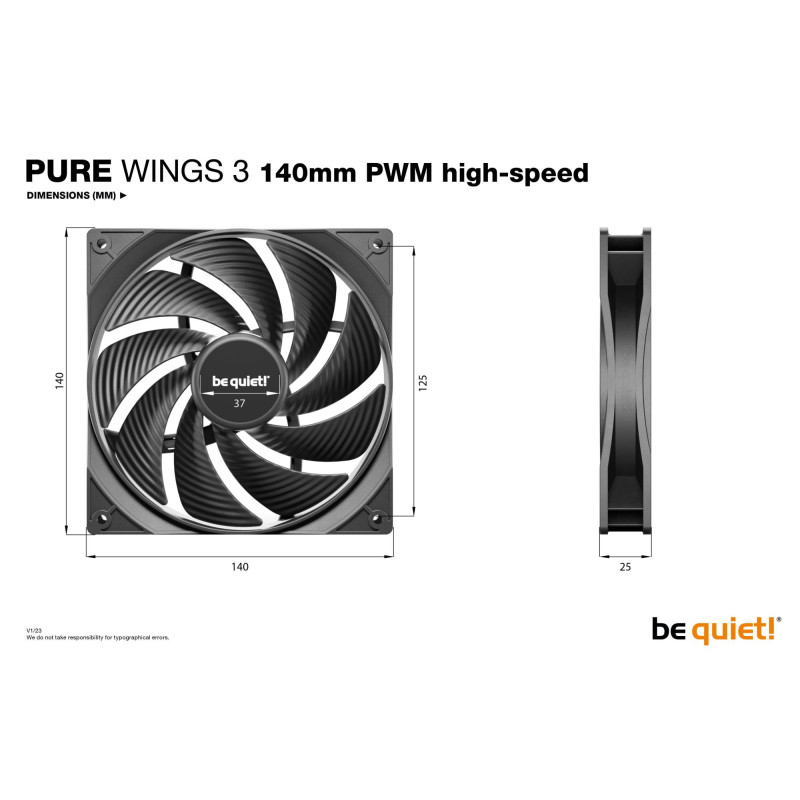

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan power consumption | 6 W |
| Fan weight | 188 g |
| Fan's mean time to failure (MTTF) | 80000 h |
| Maximum air pressure | 2.44 mmH2O |
| Maximum airflow | 72.2 cfm |
| Model | BL138 |
| Model name | PURE WINGS 3 |
| Noise level (high speed) | 30.5 dB |
| Number of fans | 1 fan(s) |
| Package depth | 152 mm |
| Package height | 142 mm |
| Package type | Hanging box |
| Package weight | 610 g |
| Package width | 80 mm |
| Product colour | Black |
| Products per shipping (inner) case | 20 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 3 pc(s) |
| Rated voltage | 12 V |
| Rotational speed (max) | 1800 RPM |
| Screws included | Yes |
| Shipping (inner) case gross weight | 12910 g |
| Shipping (inner) case height | 304 mm |
| Shipping (inner) case length | 423 mm |
| Shipping (inner) case width | 344 mm |
| Suitable location | Computer case |
| Summary | be quiet! Pure Wings 3 140mm | PWM high-speed Triple Pack. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1800 RPM, Airflow: 122.6 m³/h, Maximum air pressure: 2.44 mmH2O, Bearing type: Rifle bearing. Voltage: 5 - 13.2 V. Product colour: Black |
| Sustainability certificates | Triman |
| Type | Fan |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.142 |
| Unit Box Width | 0.153 |
| Unit Calculated Volume | 0.002275 cubm |
| Unit Calculated Weight | 0.675 kg |
| Units per Shipping Box | 20 |
| Vendor Homepage | https://www.bequiet.com/en/casefans/6699 |
| Voltage | 5 - 13.2 V |
| Warranty period | 3 year(s) |
