Designed with Modern Aesthetic

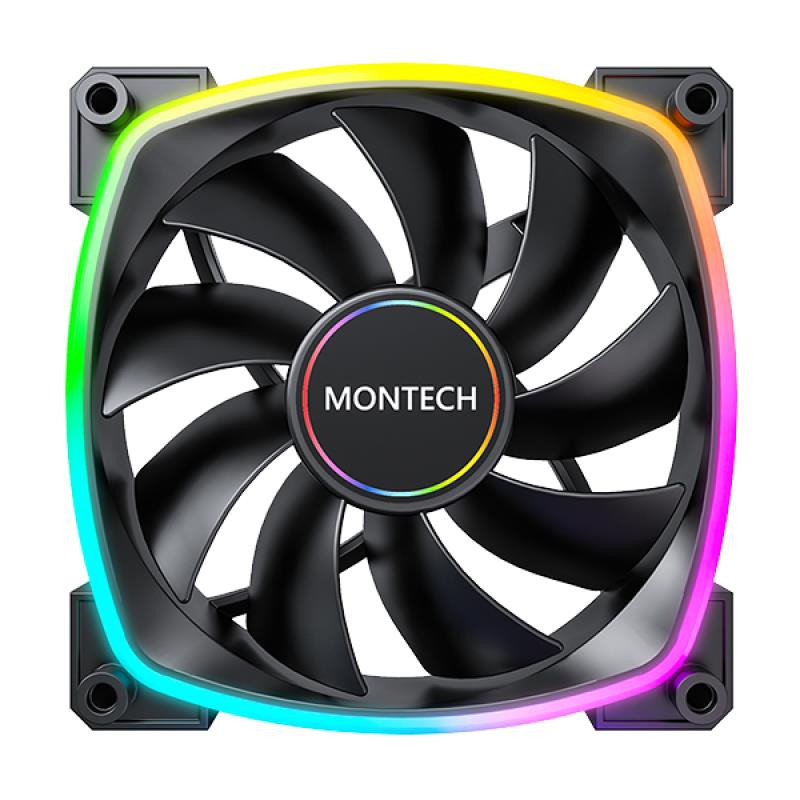

AX140 PWM integrates a total of 24 LEDs, the hexagonal RGB ring on the frame brings the design aesthetics to a new level. Further, it contains various lighting modes and supports 5V3PIN motherboard connectors for software control. All leading to complete and full customization of your build.
Built For System Cooling Performance
Whether as a case, radiator, or radiator fan, the AX140 PWM covers complete specifications and compatibility. The meticulous design from the bending angle of nine-blade fan set stabilizes the airflow, thereby drastically improves heat dissipation capacity. Simultaneously, reducing noise during fan operation. The AX140 PWM is capable of delivering stable operation while cooling a super high-end build!
Silent Operation
AX140 PWM uses tailored frame and blades that are optimized for max quietness. Even at it's highest RPM, the noise level is under 27.9 dB(A), the combination of silence and high performance is the best choice for your gaming build.

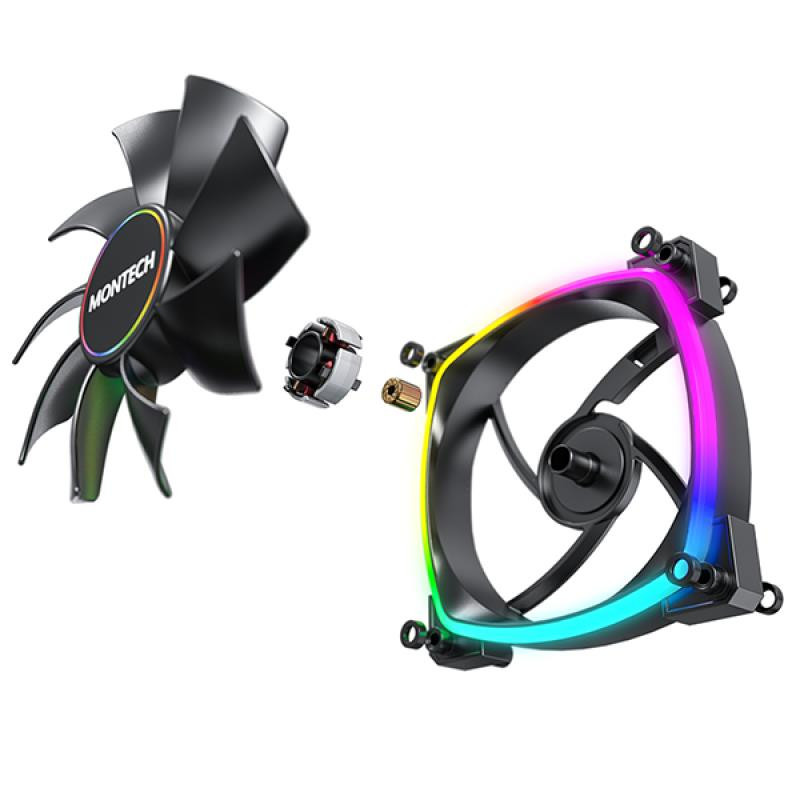

Durable Rifle bearing
Compared to other hydraulic bearing fans, the Rifle bearing enables an extremely long-life span of 80,000 hours. It has been proven to have longer durability, longevity, and much lower noise.
Vibration Proof Structures
Integrated 8 rounded anti-vibration pads, reduce vibration and the noise caused from resonance phenomena.
| Bearing type | Rifle bearing |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Fan diameter | 140 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan noise level (max) | 27.9 dB |
| Fan speed (max) | 1760 RPM |
| Fan speed (min) | 540 RPM |
| Fan static pressure | 2.9 mmH2O |
| Illumination colour | Amber/Blue/Green/Red |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| LED voltage | 5 V |
| Maximum airflow | 90.5 cfm |
| Model name | AX140 PWM BLACK |
| Package depth | 144 mm |
| Package height | 30 mm |
| Package type | Box |
| Package weight | 206 g |
| Package width | 162 mm |
| Product colour | Black |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rated voltage | 12 V |
| Remote control included | Yes |
| Screws included | Yes |
| Suitable location | Computer case |
| Summary | Montech AX140 PWM. Type: Fan, Fan diameter: 14 cm, Bearing type: Rifle bearing. Product colour: Black |
| Type | Fan |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.145 |
| Unit Calculated Volume | 0.0009441 cubm |
| Unit Calculated Weight | 0.26 kg |
| Units per Shipping Box | 60 |
| Vendor Homepage | https://www.montechpc.com/ax140-pwm |
