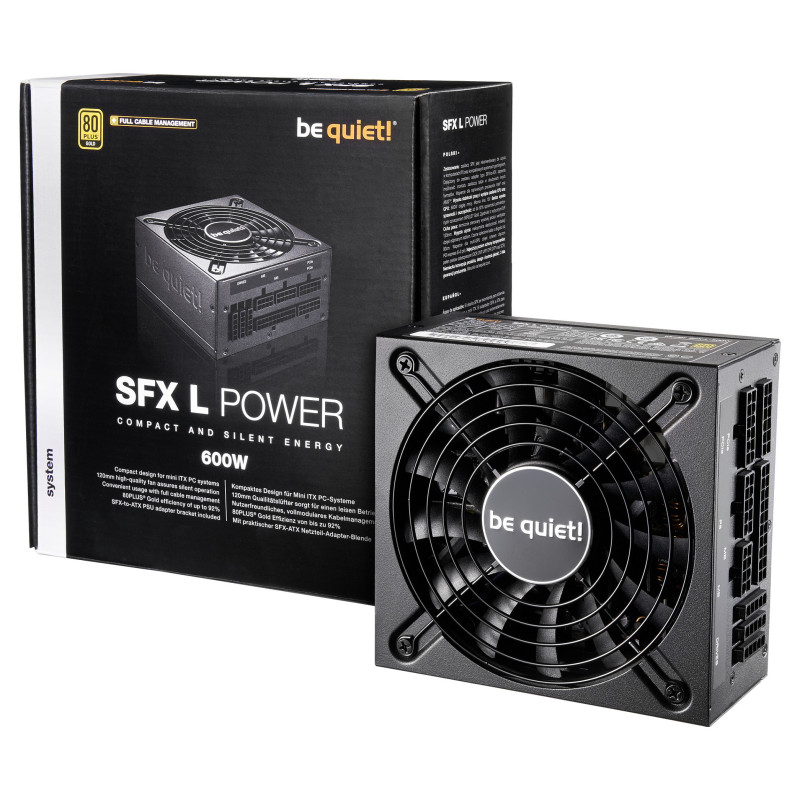

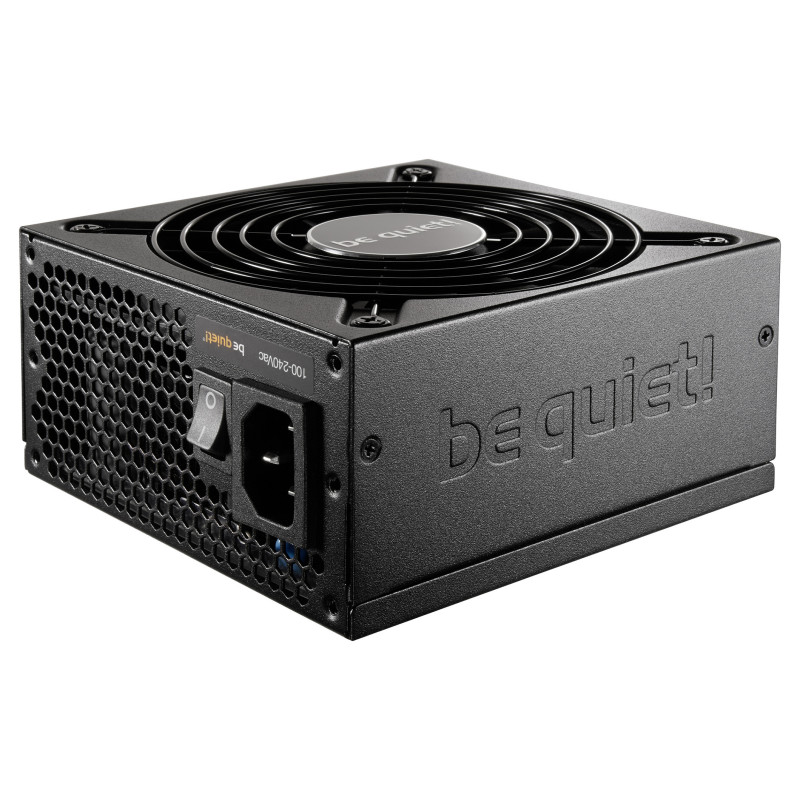

be quiet! SFX L Power power supply unit

be quiet! SFX L Power. Total power: 600 W, AC input voltage: 100 - 240 V, Peak power: 650 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, FCC, cTUVus, RCM

Compact and Silent Energy

be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.

POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.

QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.

80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% - a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.

MODULAR AND FLAT CABLES
Highly compatible and convenient

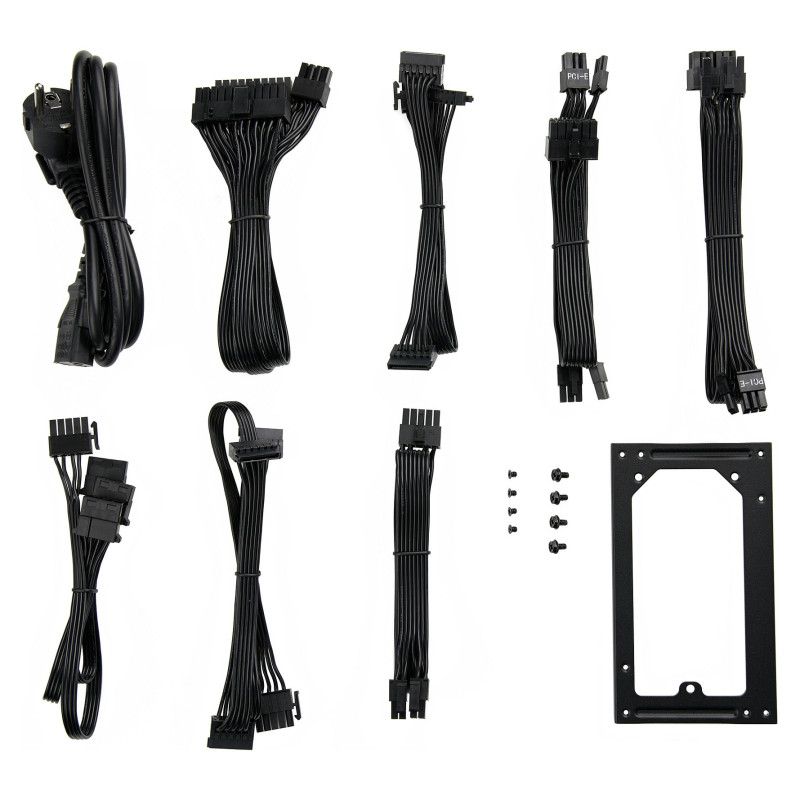

Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.

SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

Power

Total power: 600 W
Peak power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 10 A
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 600 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 50 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16.8 ms
Efficiency: 92%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 6
Number of PATA power connectors: 3
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 40 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 40 cm
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: Mini-ITX
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 2.4
Feature: Silent mode
Bearing technology: Sleeve

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Certificates

Compliance certificates: RoHS
Certification: CE, CB, TÜV, FCC, cTUVus, RCM

Weight & dimensions

Width: 125 mm
Depth: 130 mm
Height: 64 mm
Weight: 1.16 kg

Packaging data

Feature: Manual
Package width: 205 mm
Package depth: 220 mm
Package height: 80 mm
Package weight: 2.04 kg
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR

Logistics data

Master (outer) case width: 430 mm
Master (outer) case length: 430 mm
Master (outer) case height: 240 mm
Master (outer) case gross weight: 21.5 kg
Harmonized System (HS) code: 84733020
Products per master (outer) case: 10 pc(s)

Other features

Feature: Screws included
Feature: Cable ties included
Noise level (silent mode, <30%): 9.9 dB
Noise level (quiet mode, 50%): 14.5 dB
Noise level (full-load mode, 100%): 28.7 dB
