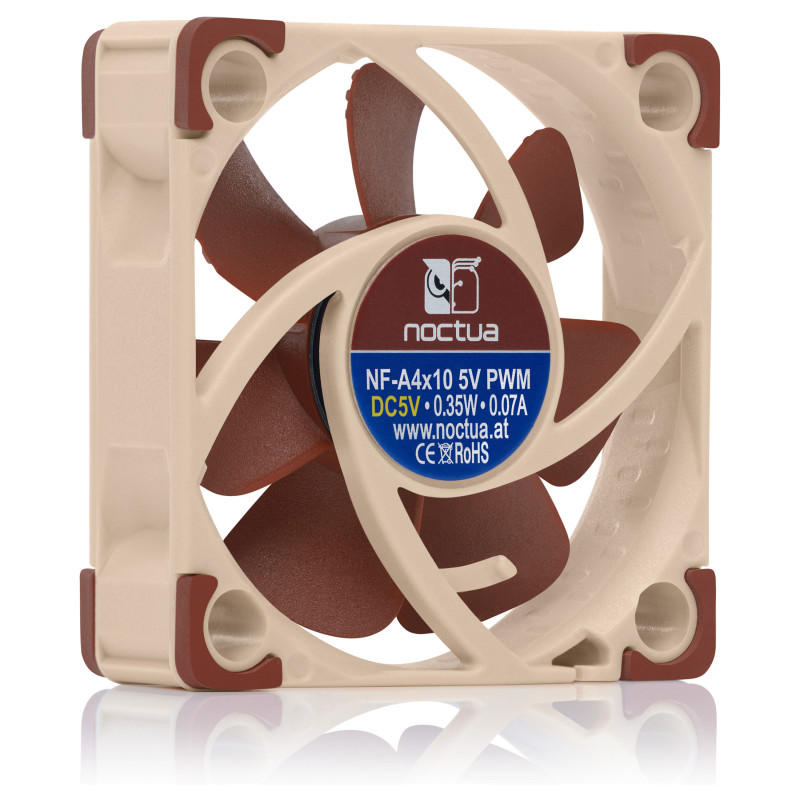

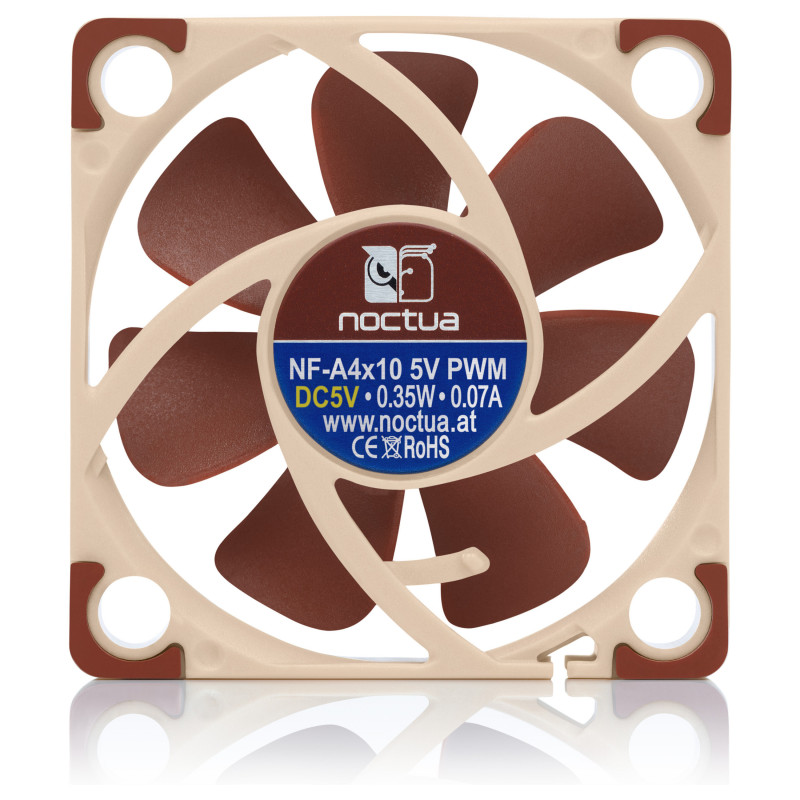

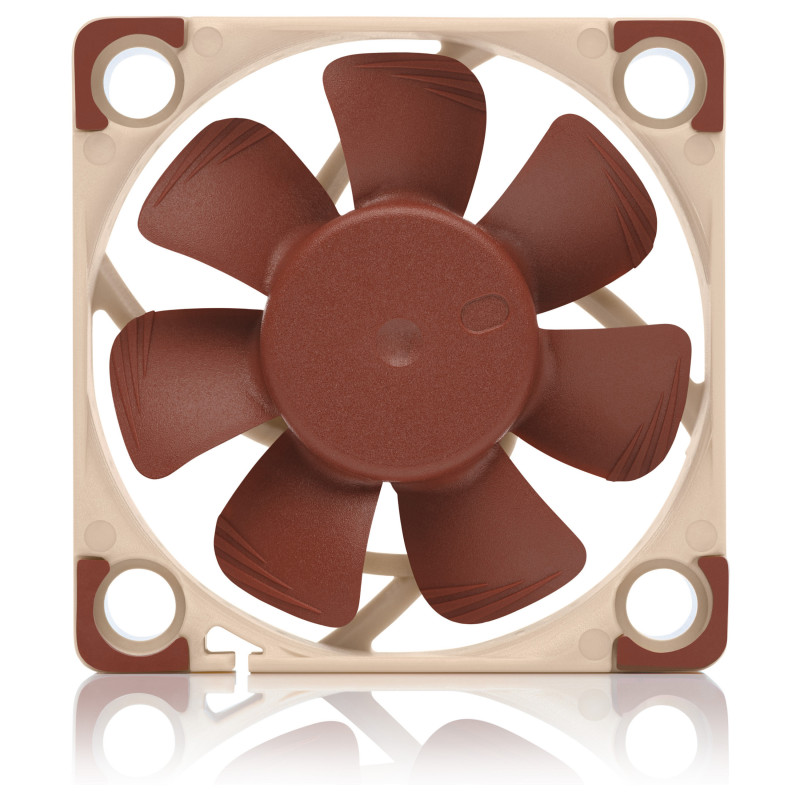

Noctua NF A4x10 5V PWM

Noctua NF A4x10 5V PWM. Type: Fan, Fan diameter: 4 cm, Rotational speed (min): 1000 RPM, Rotational speed (max): 5000 RPM, Airflow: 8.9 m³/h, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Voltage: 5 V. Width: 40 mm, Depth: 10 mm, Height: 40 mm. Product colour: Brown

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x10 5V PWM is a PWM enabled 5V variant of Noctua's award-winning, premium quality quiet 40x10mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua's reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin Adaptor Set Adaptor Set and 6 years manufacturer's warranty, the NF-A4x10 5V PWM is a premium choice for demanding 5V applications that require PWM control.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 4 cm
Rotational speed (min): 1000 RPM
Rotational speed (max): 5000 RPM
Noise level (high speed): 19.6 dB
Airflow: 8.9 m³/h
Feature: Pulse-width modulation (PWM) support
Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)

Design

Product colour: Brown
Number of fans: 1 fan(s)
Number of fan blades: 7

Power

Power consumption (typical): 0.35 W
Voltage: 5 V
Maximum current: 0.07 A

Weight & dimensions

Width: 40 mm
Depth: 10 mm
Height: 40 mm
Cable length: 0.2 m

Packaging content

Cables included: 4-pin
Feature: Screws included

Other features

Feature: Anti-vibration system
Mean time to failure (MTTF): 150000 h

Logistics data

Harmonized System (HS) code: 84733080
