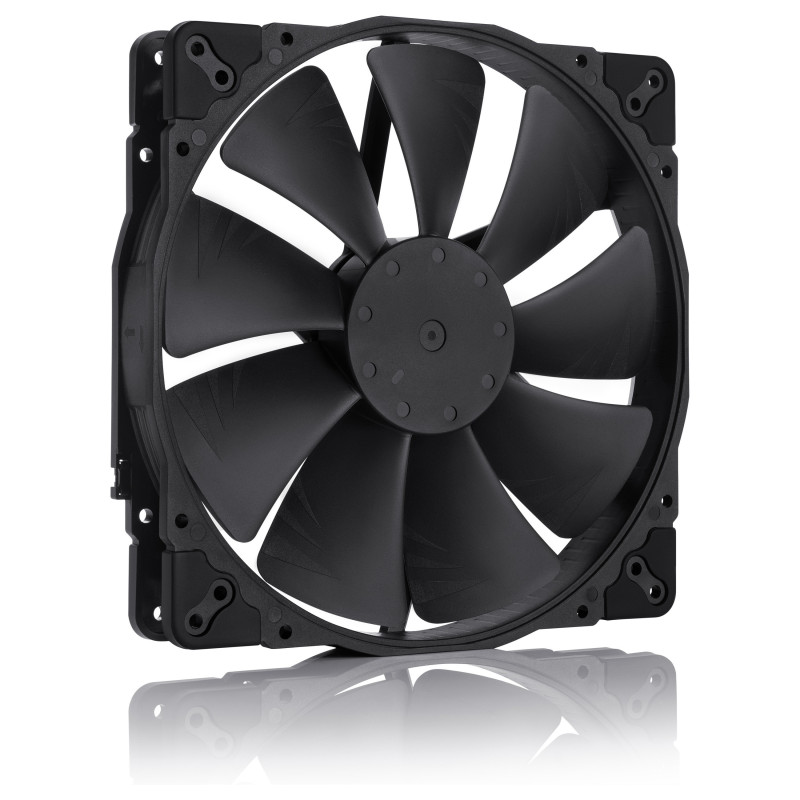

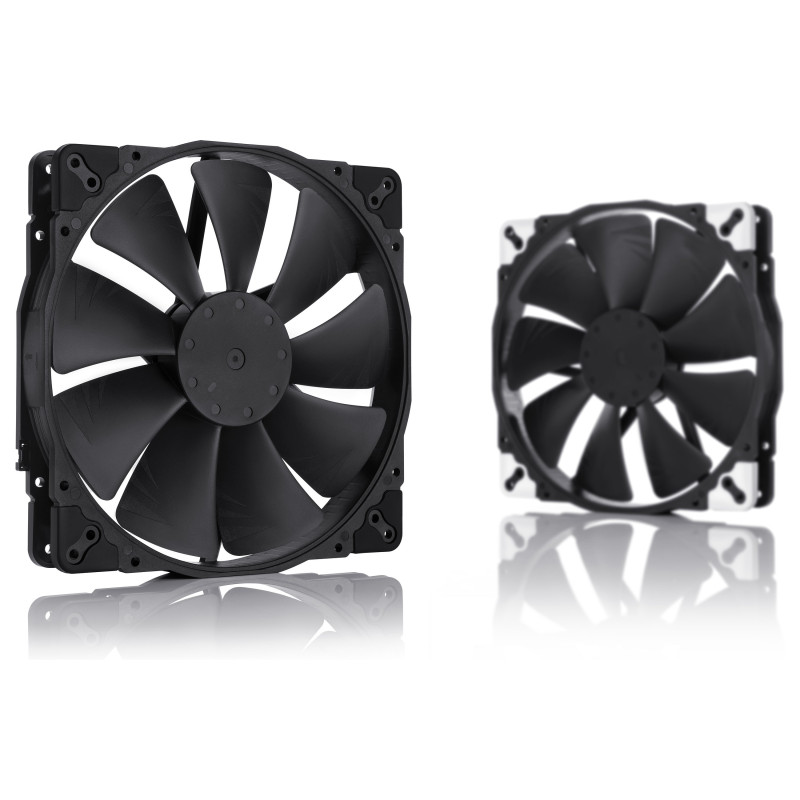

Noctua NF-A20 PWM CH.BK.S computer cooling system

Noctua NF-A20 PWM CH.BK.S. Type: Fan, Fan diameter: 20 cm, Number of speeds: 2, Rotational speed (min): 350 RPM, Rotational speed (max): 800 RPM, Airflow: 146.9 m³/h, Maximum air pressure: 1.08 mmH2O, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Width: 200 mm, Depth: 200 mm, Height: 30 mm. Product colour: Black

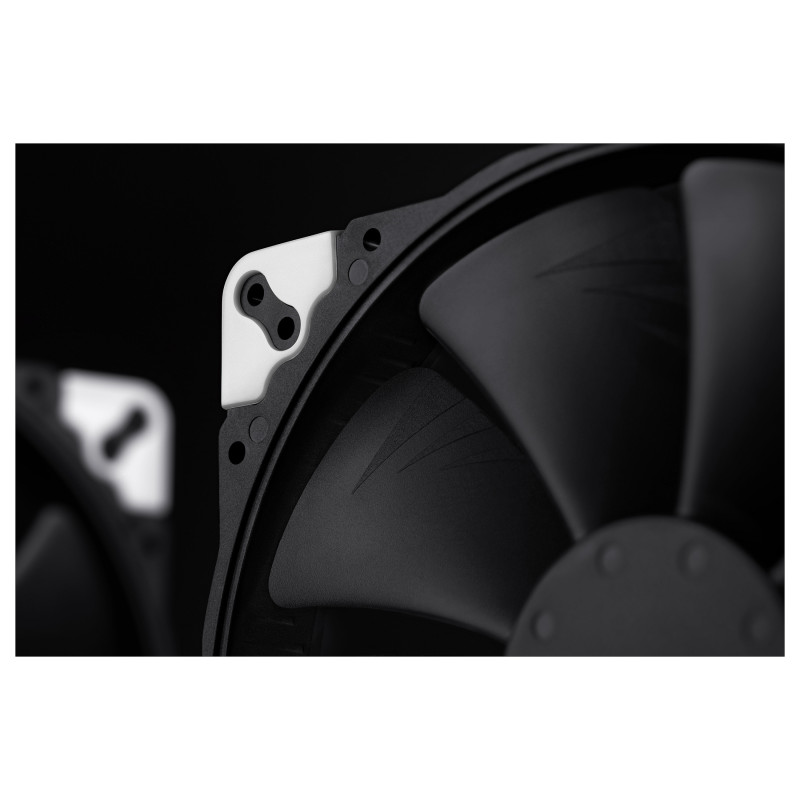

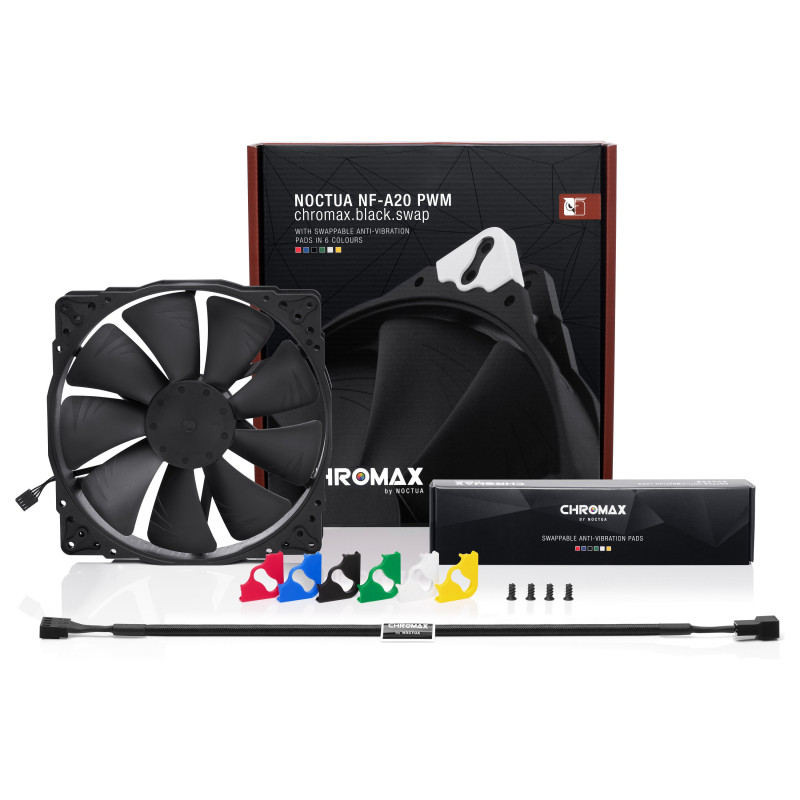

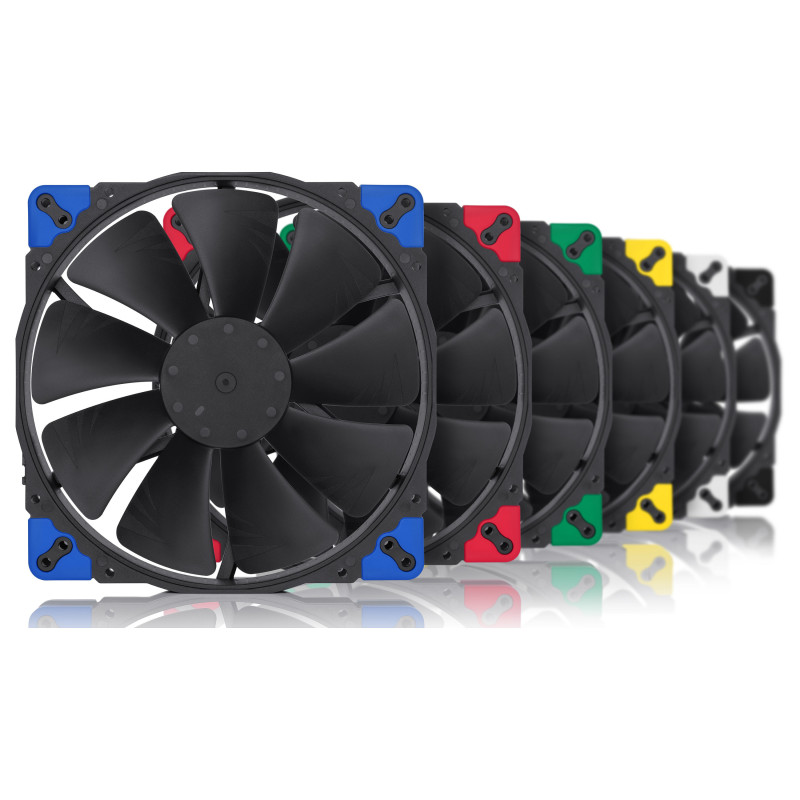

Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A20 has established itself as a default choice when it comes to premium-quality 200mm fans. The chromax.black.swap edition combines the NF-A20's signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua's trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer's warranty, the NF-A20 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 20 cm
Number of speeds: 2
Rotational speed (min): 350 RPM
Rotational speed (max): 800 RPM
Noise level (high speed): 18.9 dB
Airflow: 146.9 m³/h
Maximum air pressure: 1.08 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Mean time between failures (MTBF): 150000 h

Design

Product colour: Black
Material: Plastic
Number of fans: 1 fan(s)
Number of fan blades: 9
Fan connector: 4-pin

Power

Power consumption (typical): 0.96 W
Rated voltage: 12 V
Rated current: 0.08 A

Weight & dimensions

Width: 200 mm
Depth: 200 mm
Height: 30 mm

Packaging content

Feature: Screws included
Number of screws: 4

Logistics data

Harmonized System (HS) code: 84733080
