- New
Uninterruptible Power Supply (UPS) - Eaton Ellipse Pro 1200 FR 1.2 kVA 750 W
Product reference:
14-743172437716
Eaton Ellipse PRO 1200 FR - 1.2 kVA line-interactive UPS with 8 AC outputs, providing surge protection and 9 minutes of backup power at half load.
Uninterruptible Power Supply (UPS) - Eaton Ellipse Pro 1200 FR 1.2 kVA 750 W
Product reference:
14-743172437716
Eaton Ellipse PRO 1200 FR - 1.2 kVA line-interactive UPS with 8 AC outputs, providing surge protection and 9 minutes of backup power at half load.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

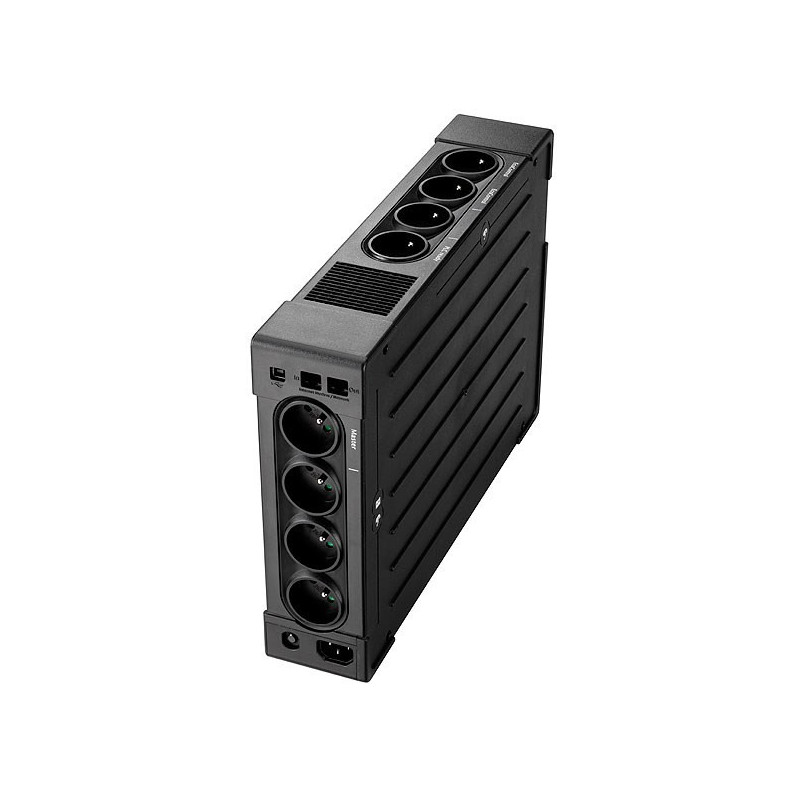

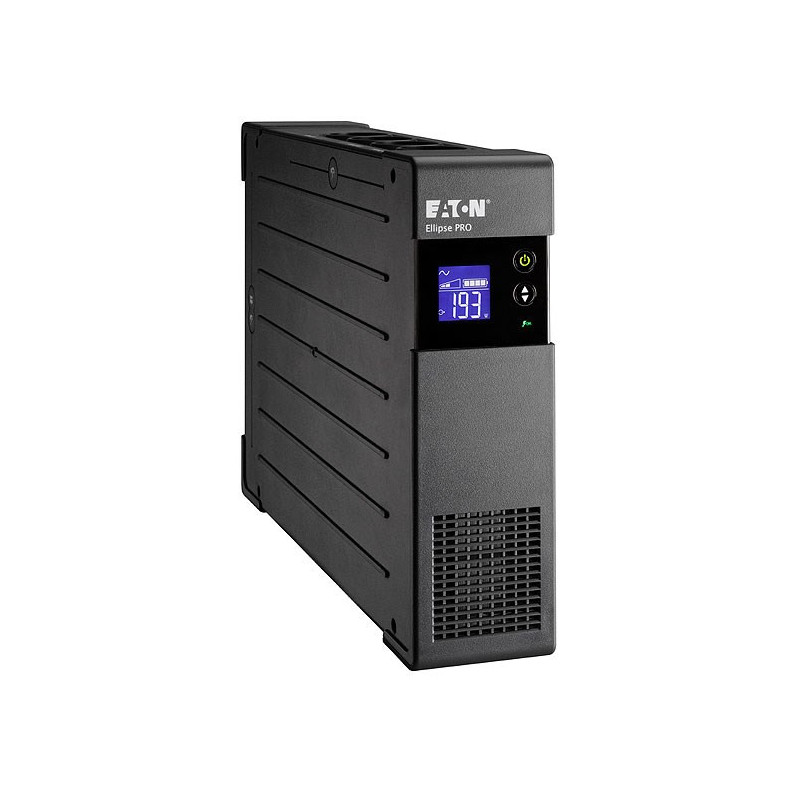

Eaton Ellipse Pro 1200 FR 1.2kVA 750W
Eaton Ellipse PRO 1200 FR - a powerful 1.2 kVA uninterruptible power supply (UPS) with 750 W output power, ensuring the highest protection and reliability.
Main features:
- Linear-interactive design
- Surge protection: modem, fax, network, telephone
- 8 AC sockets Type E
- Automatic battery test, 50/60 Hz input/output frequency
Features | |
|---|---|
| UPS topology | Linear-interactive |
| Surge protection features | Modem, fax, network, telephone |
| Output working voltage (min) | 220V |
| Input operating voltage (max) | 285V |
| Input working voltage (min) | 150V |
| Input frequency | 50/60Hz |
| Output frequency | 50Hz |
| Output operating voltage (max) | 240V |
| Emergency Power Off (EPO) function | Yes |
| Output power | 750W |
| Surge protection | Yes |
| Output power capacity | 1.2 kVA |
Design | |

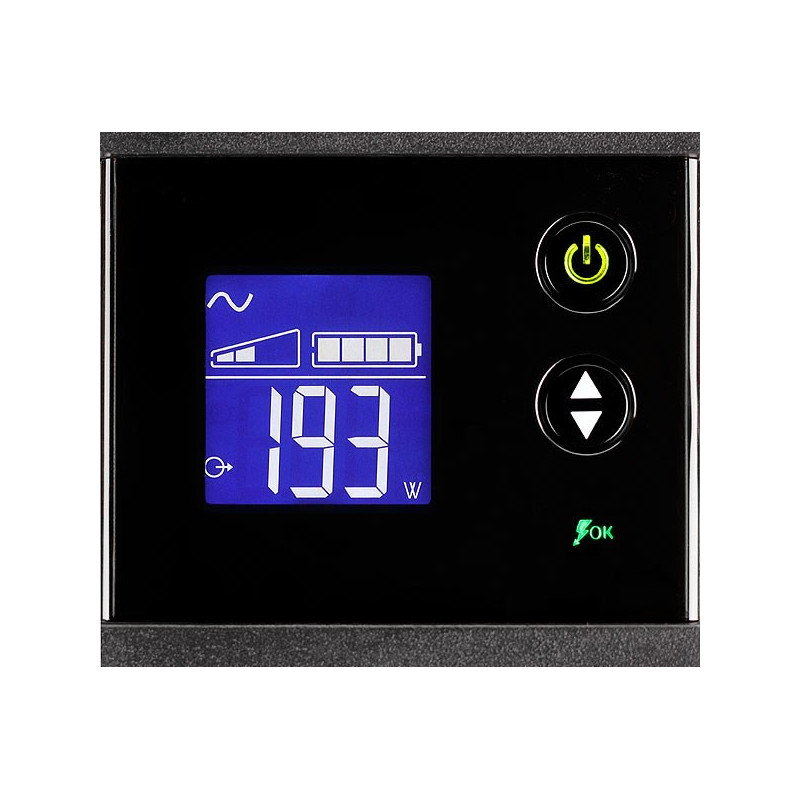

| Display type | LCD |
| Rack capacity | 2U |
| LED indicators | Yes |
| Product color | Black |
| Security | IEC/EN 62040-1, IEC/EN 62040-2, CB, CE |
| Form factor | Thorn |
Weight and dimensions | |
| Depth | 390 mm |
| Width | 82 mm |
| Height | 275 mm |
| Weight | 9.9 kg |
Ports and interfaces | |
| AC outlet types | Type E |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Number of AC outlets | 8 AC sockets |
| Power plug | C14 connector |
Battery | |
| Automatic battery test | Yes |
| Hot swapping the battery | No |
| Typical backup time at half load | 9 minutes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cold start | Yes |
Other features | |
| Nominal input voltage | 230V |
| | |
| Height | 330 mm |
| Length | 145 mm |
| Weight | 11000 g |
| Width | 490 mm |
