i-tec TB5QUATTRODOCKPD laptop dock / port replicator

i-tec Thunderbolt5 Quattro Display Docking Station, 5x USB, 2.5 GLAN + Power Delivery 140W. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 120 Gbit/s. Power source type: AC, Power supply: 160 W, Output voltage: 21 V. Other operating systems supported: Android, ChromeOS, iPadOS

Extreme performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. The most powerful i-tec docking station on the market!

Crystal-clear image quality, lightning-fast internet, and data transfer speeds of up to 12 GB per second thanks to the integrated Thunderbolt 5 output port. Of course, you can also connect headphones or audio devices and charge your laptop (up to 140 W**) - all through a single cable (a 100 cm certified Thunderbolt 5 cable is included in the package).

Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 x 4320) at 60 Hz refresh rate - equivalent to the resolution of four 4K monitors. This makes it an ideal solution for graphic designers, analysts, developers, video editors, and high-resolution video enthusiasts.

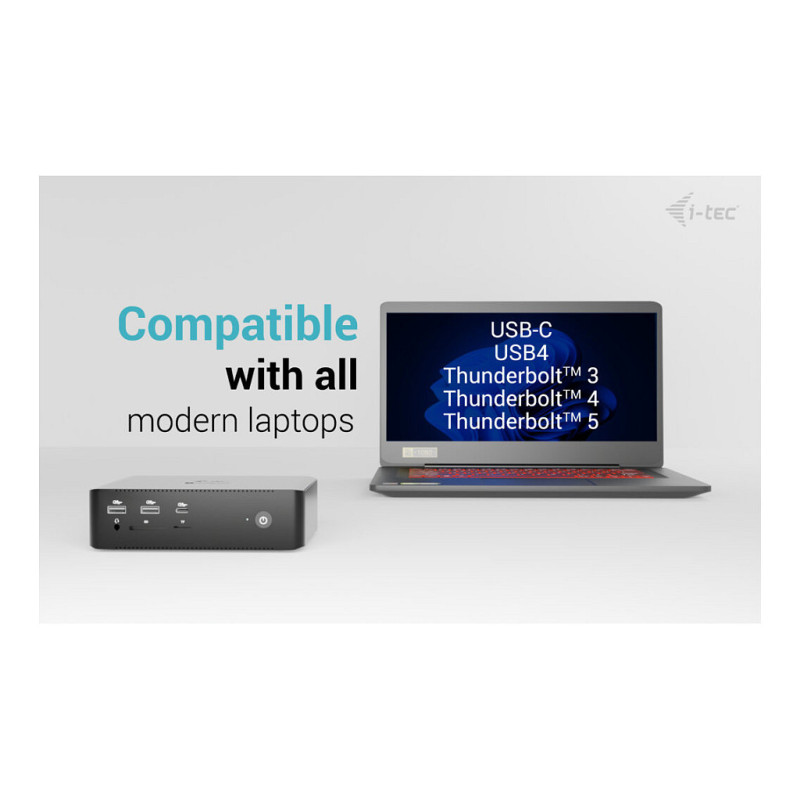

The docking station is now compatible not only with Thunderbolt 5/4/3 ports but also with USB4 and USB-C, making it a flexible solution for businesses and users who work with laptops and tablets equipped with different types of ports.

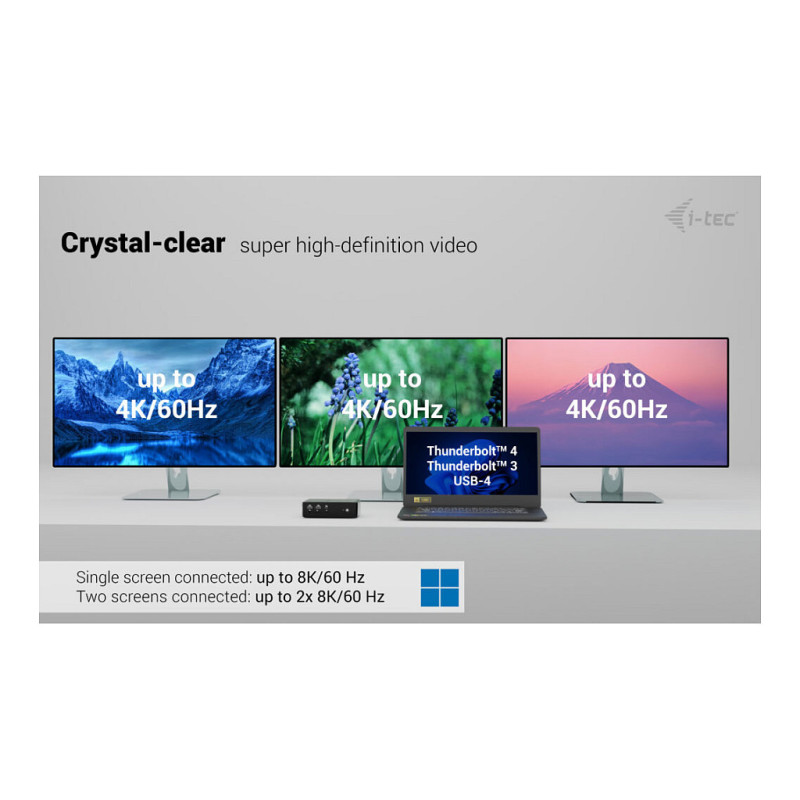

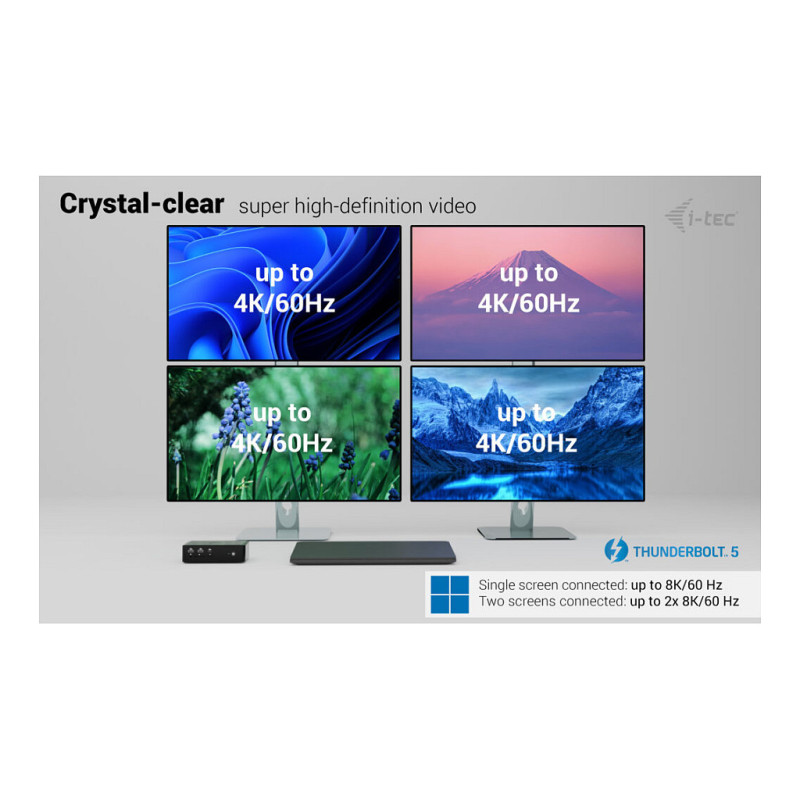

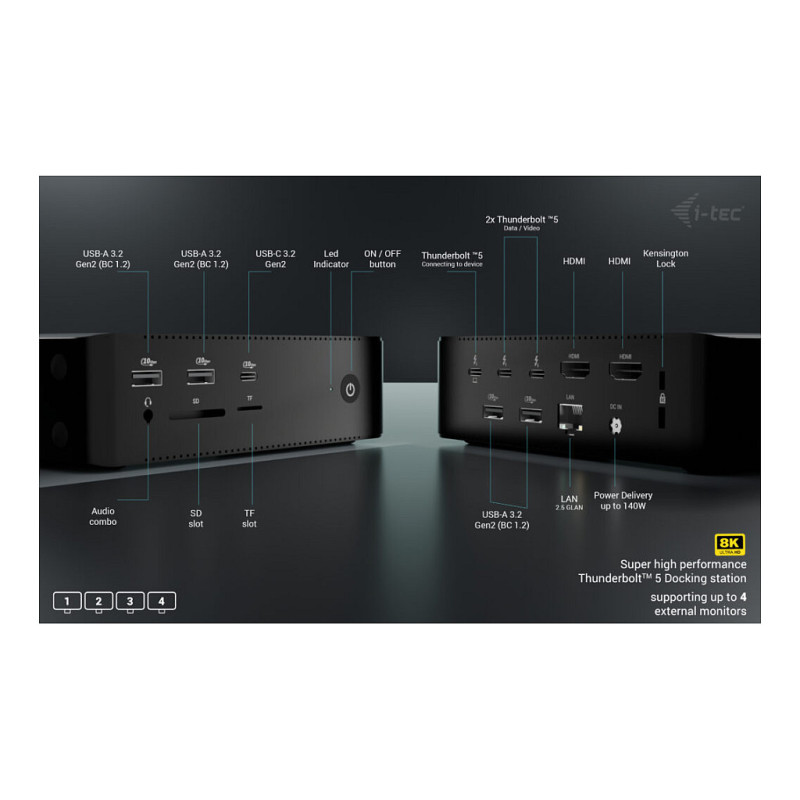

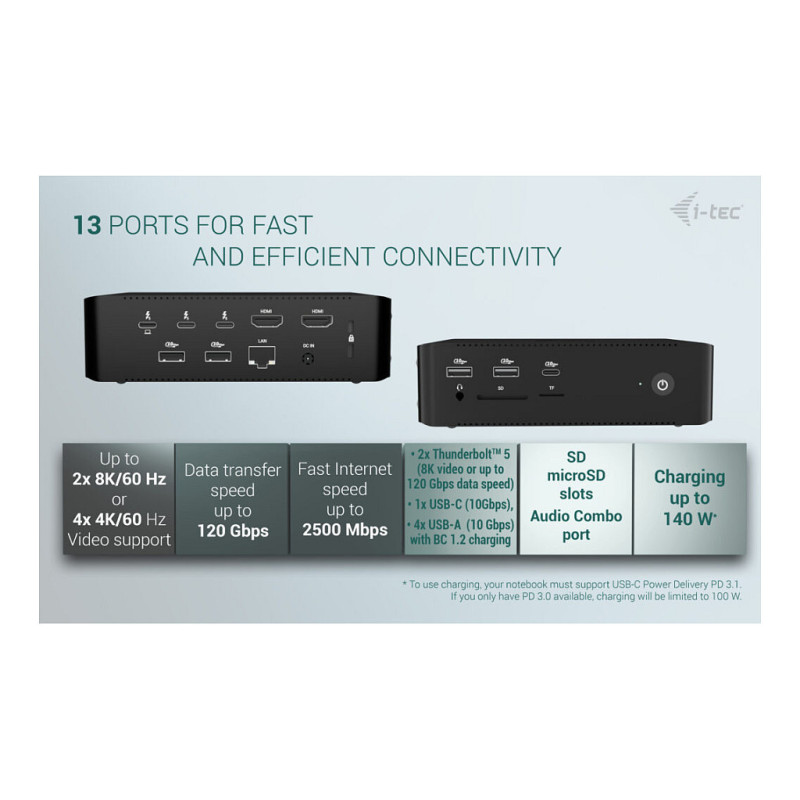

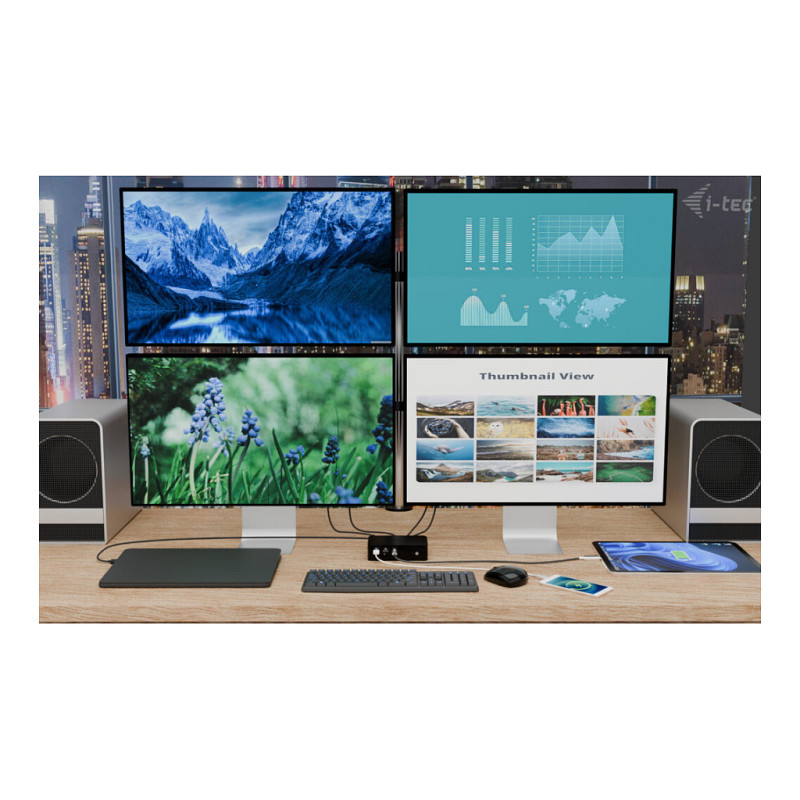

- Support for up to 4 external monitors* with resolutions up to 2x 8K/60 or 4x 4K/60 Hz

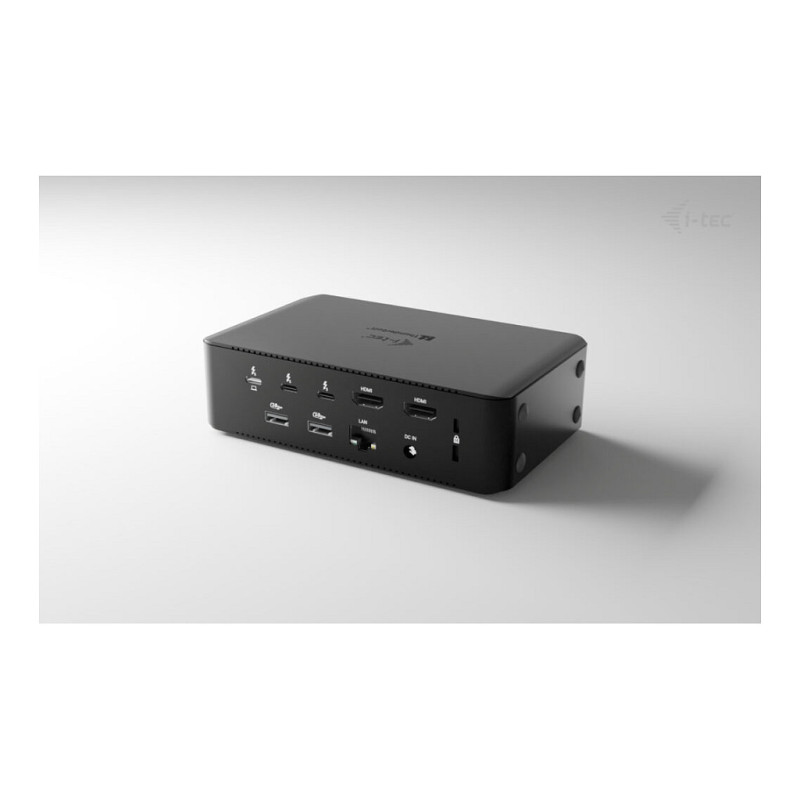

- Video ports: 2x HDMI, 2x Thunderbolt 5
- 1x USB-C (10 Gbps)
- 4x USB-A (10 Gbps) with BC 1.2 fast charging support (7.5W)

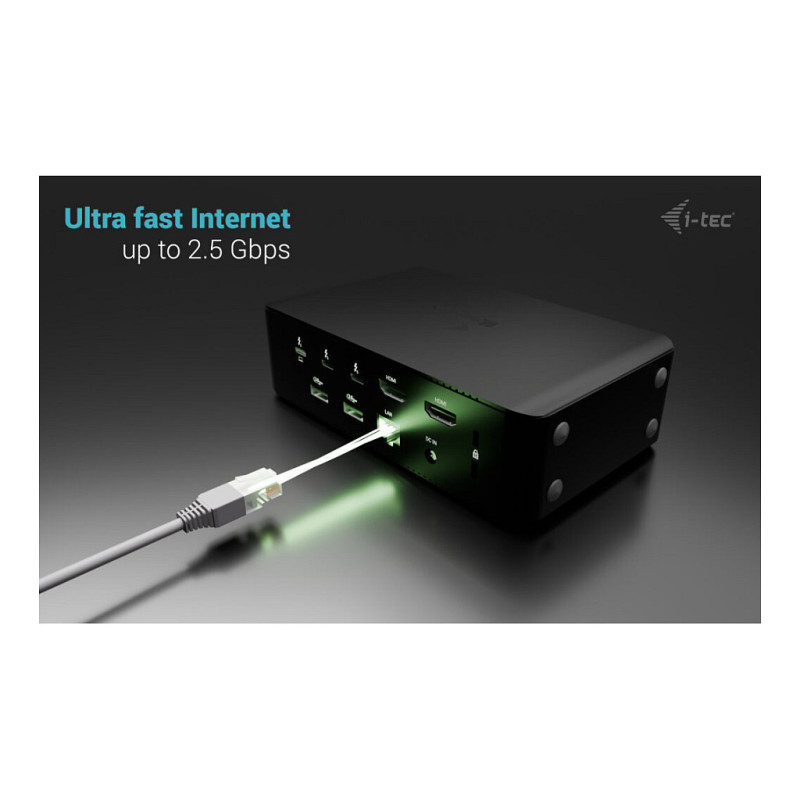

- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone port
- 1x SD/microSD slot

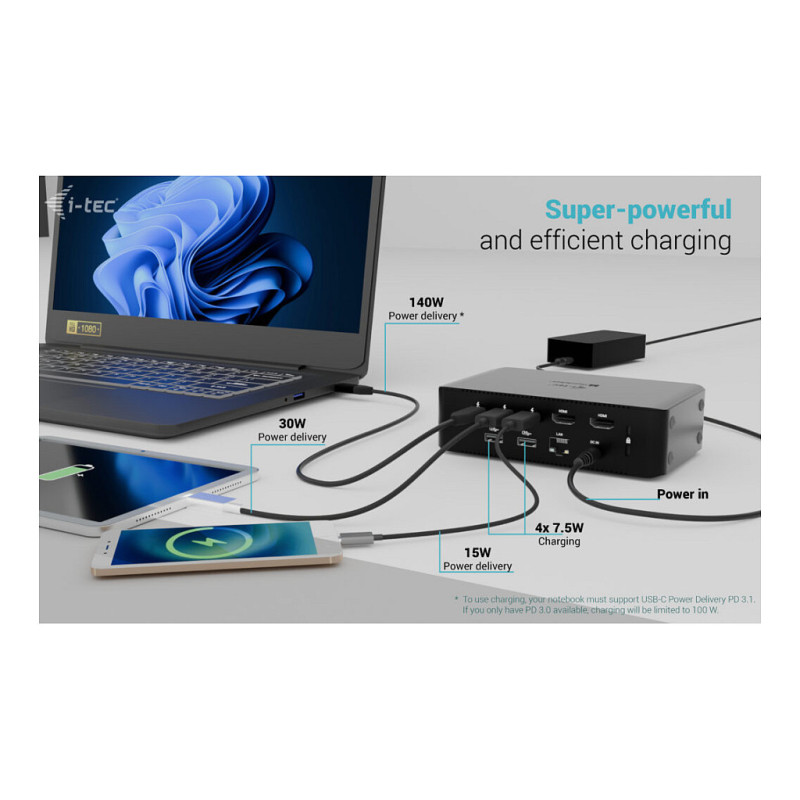

- Laptop charging up to 140 W**

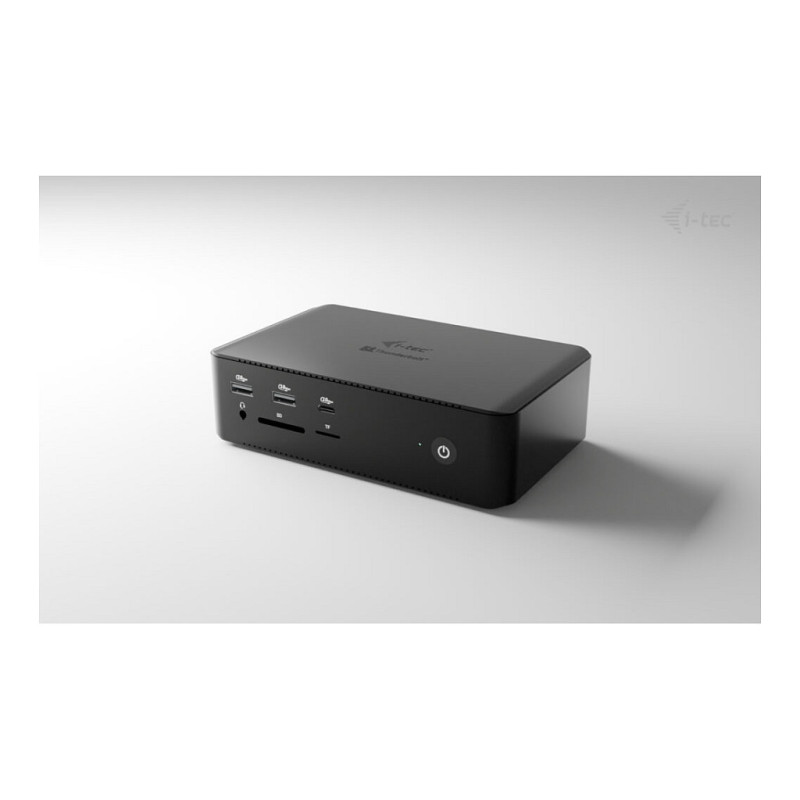

- Power button for docking station

* The maximum number of connected monitors depends on the performance of your computer and operating system.

With Thunderbolt 5 and Windows laptops, you can connect up to four monitors (the laptop lid must be closed). With Apple laptops running macOS, a maximum of two external monitors is supported.

** If your laptop or tablet supports the modern USB-C Power Delivery PD 3.1 charging protocol, the docking station provides up to 140 W charging power (with PD 3.0, the charging power is limited to 100 W).

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 140 W
HDMI ports quantity: 2
Thunderbolt 5 ports quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD

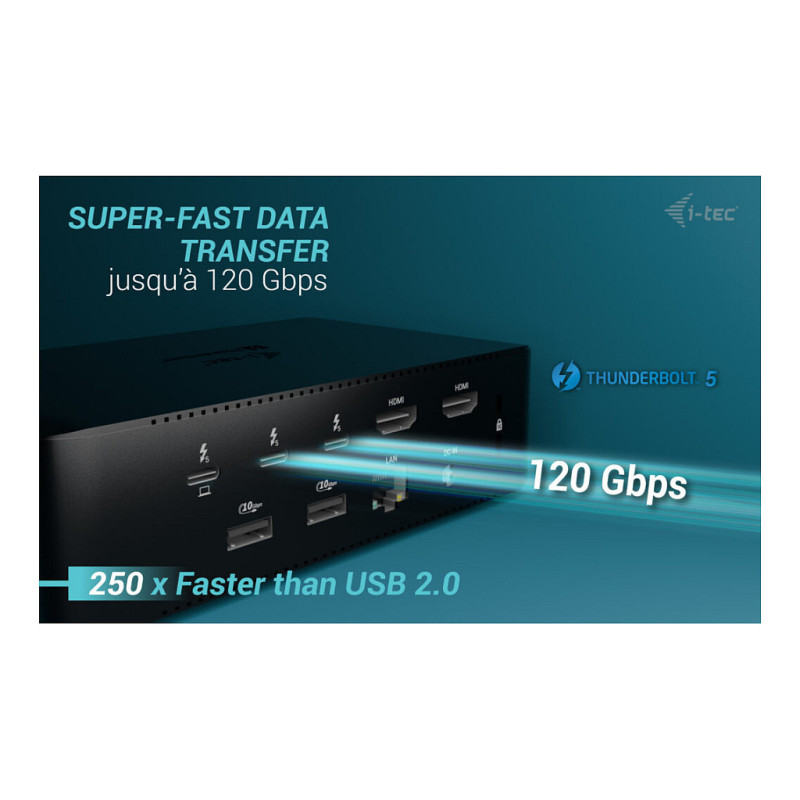

Data transfer rate: 120 Gbit/s
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 4
Maximum refresh rate: 240 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: On/off switch
LED indicators: Yes

Power

Power source type: AC
Power supply: 160 W
Output voltage: 21 V
Output current: 7.61 A
Compatible power plug types: EU

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS, iPadOS

Weight & dimensions

Width: 154 mm
Depth: 96 mm
Height: 45 mm
Weight: 692 g

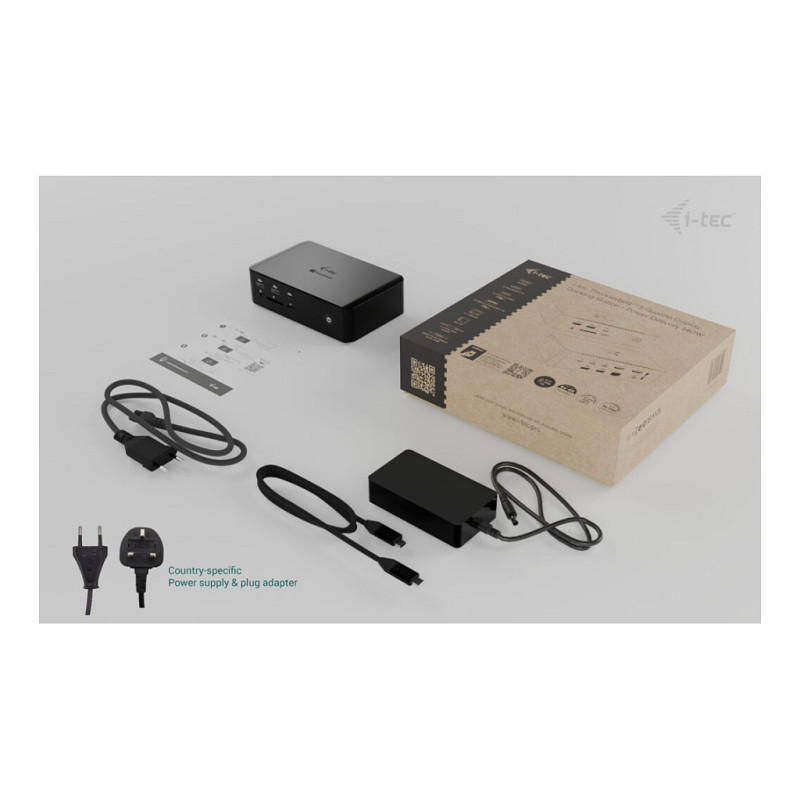

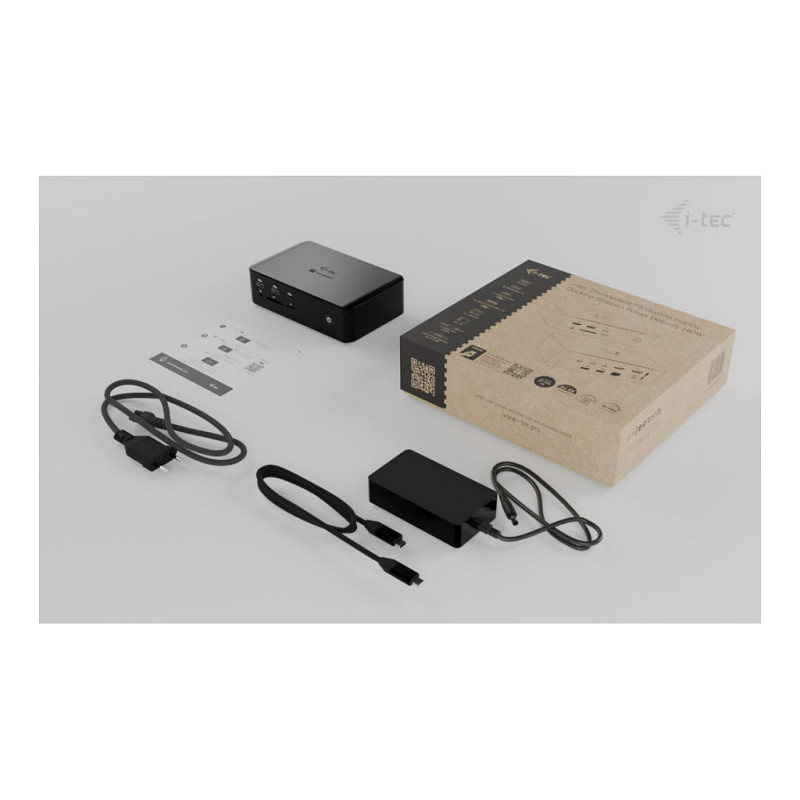

Packaging content

Cables included: Thunderbolt
Feature: AC adapter included
Feature: Manual
