i-tec CADUA4KDOCKPDB100 laptop dock / port replicator

i-tec Universal Dual 4K Display Docking Station + Power Delivery 85W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: AC, Power supply: 100 W, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS

A powerful, yet affordable docking station that supports output to up to two external monitors in high resolution, up to 4K/60Hz. The dock can be used with virtually all laptops as it supports connection to all common ports: 3.0, USB-C, USB4 and Thunderbolt" 3/4 while supporting all common current operating systems.
Plenty of ports, a reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind a monitor all make this docking station the ideal companion for true professionals. The docking station can be used when simply connected to a laptop (without a USB-C charger), or with a USB-C charger (not included). In this case, it supports charging of a laptop or tablet, up to 85 W of power.

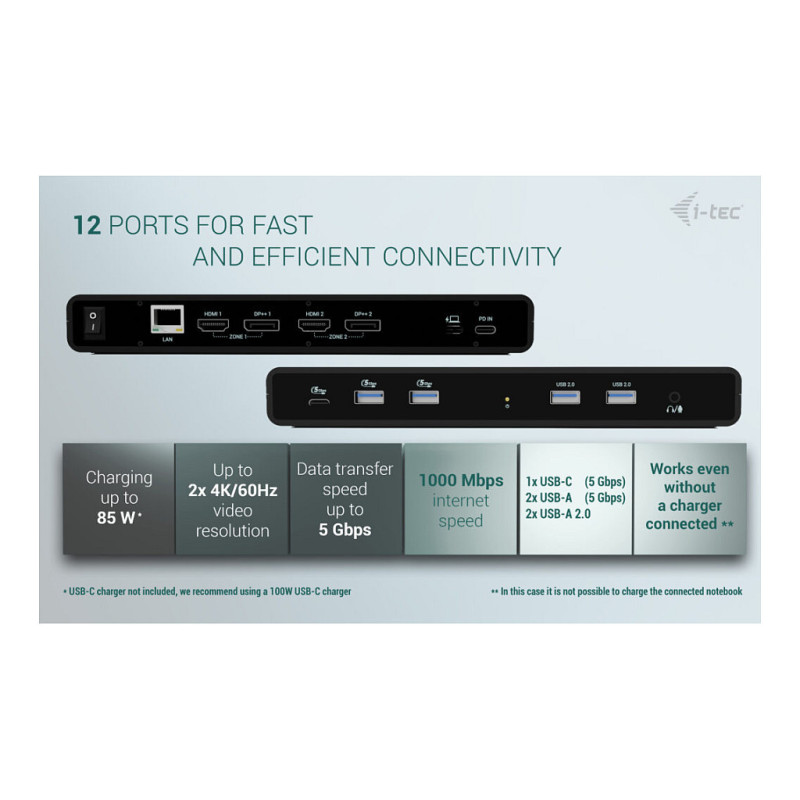

- Connection of 2 external monitors with up to 4K/60Hz resolution

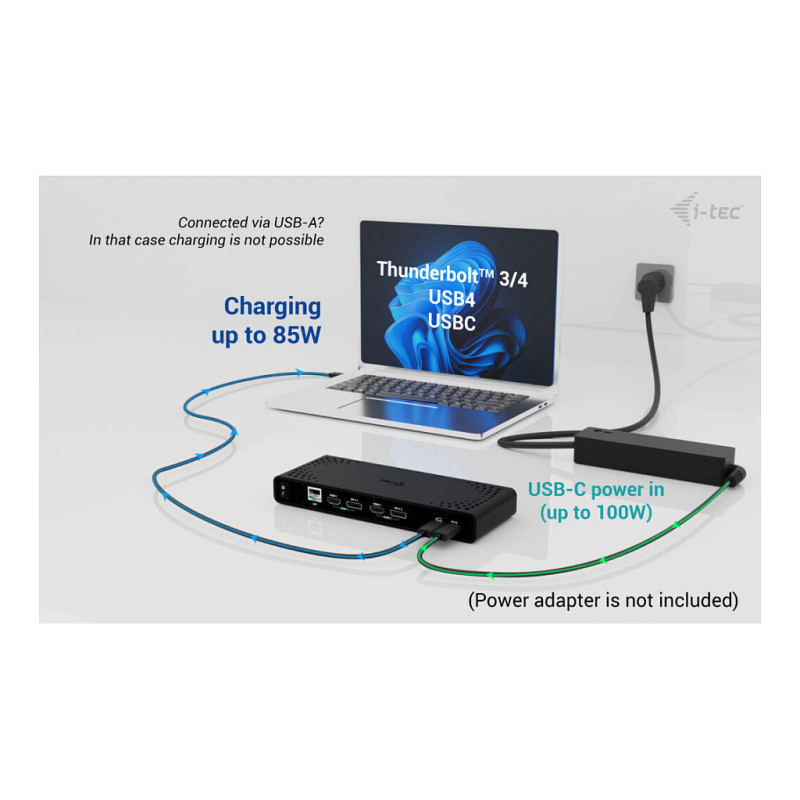

- Power Delivery: up to 85W (when using a 100W USB-C charger; not included)

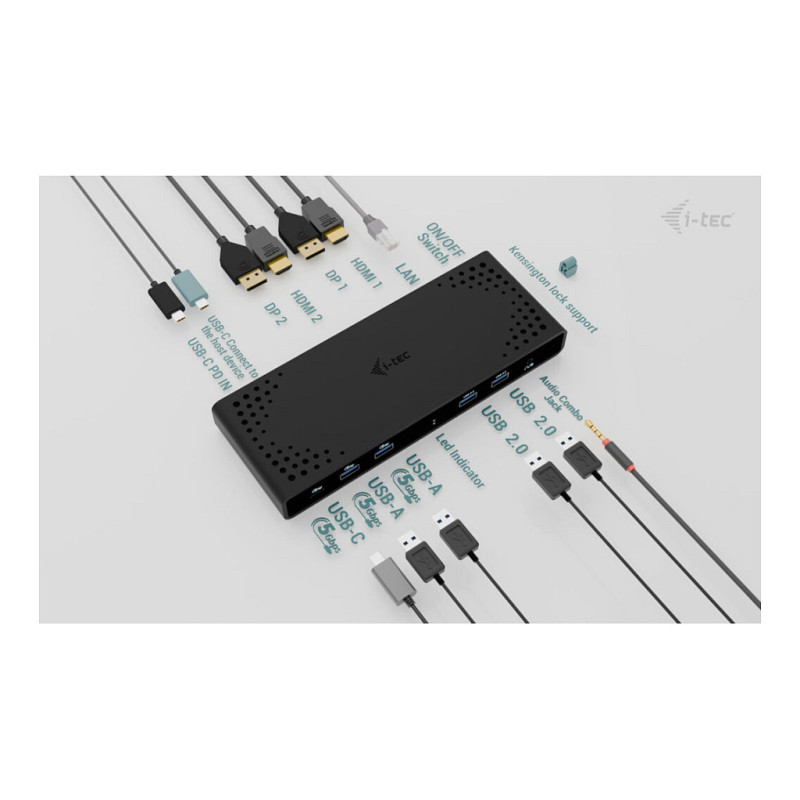

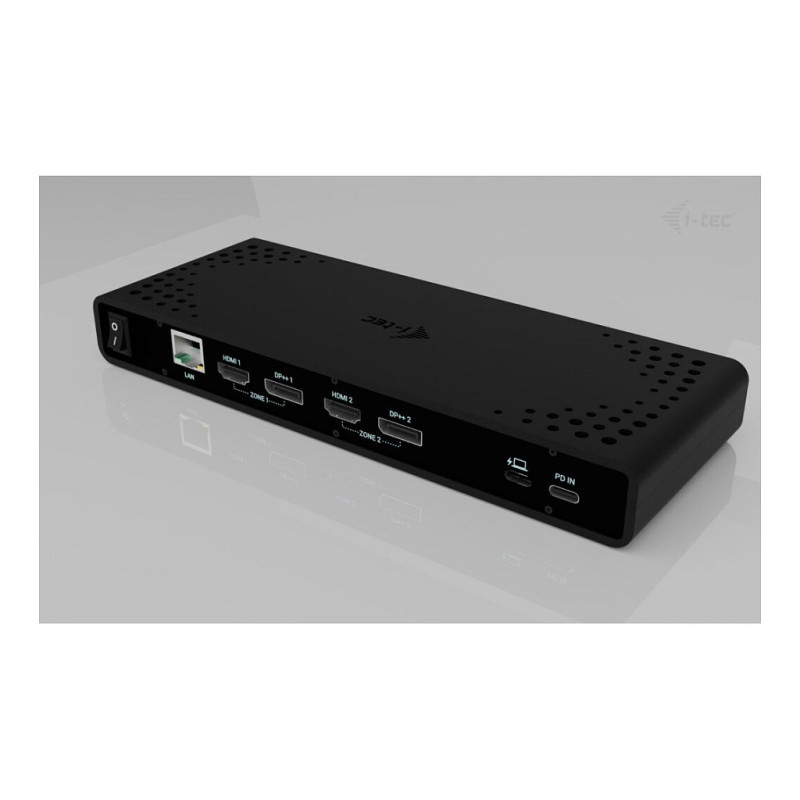

- 2 DisplayPort and 2 HDMI ports available

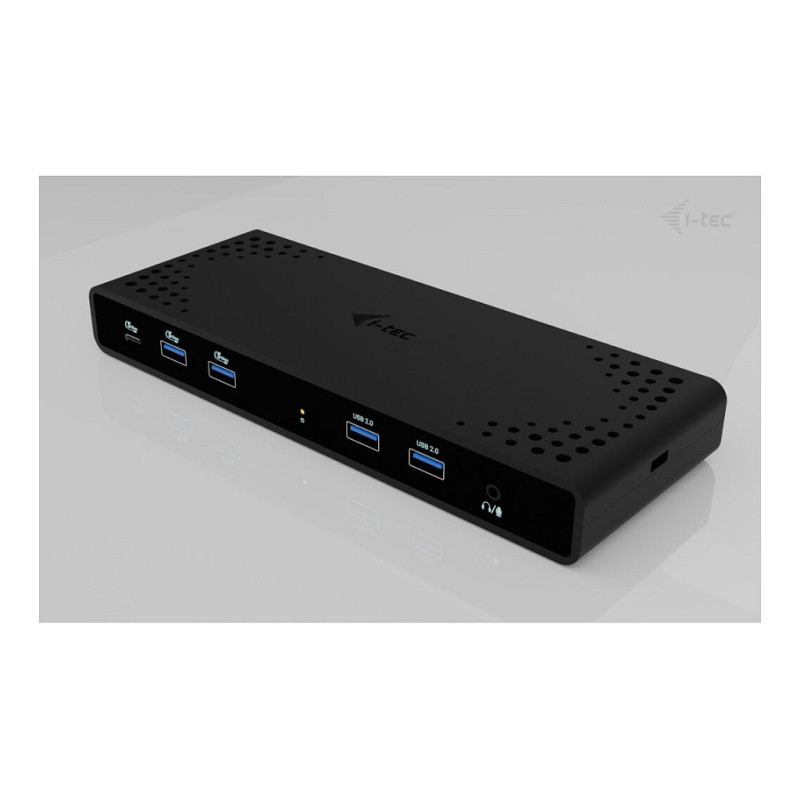

- 2x USB 3.1 Gen 1 (5 Gbps), 2x USB 2.0 and 1x USB-C Gen 1 (5 Gbps) make it easy to connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone connector
- Kensington lock provides anti-theft protection, especially in shared office environments or public places
- Docking station power switch for maximum power savings

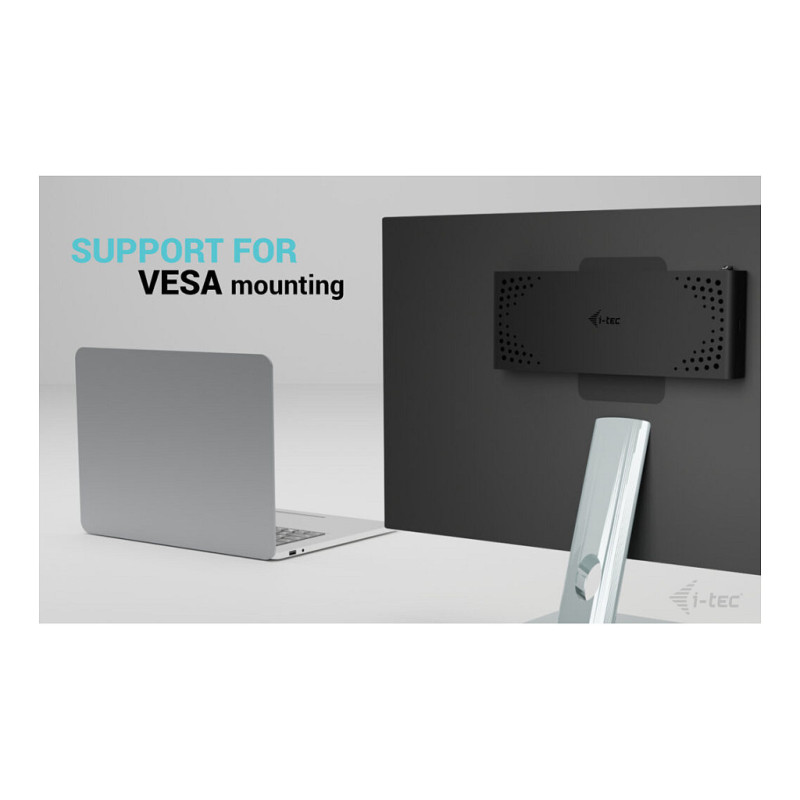

- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

Charging is not supported when the dock is connected via USB 3.0.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 85 W
HDMI ports quantity: 2
DisplayPorts quantity: 2
Feature: Combo headphone/mic port

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Black
LED indicators: Yes
Feature: Charging function
Housing material: Acrylonitrile butadiene styrene (ABS)

Power

Power source type: AC
Power supply: 100 W
Compatible power plug types: EU
USB cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Weight & dimensions

Width: 223.8 mm
Depth: 83.4 mm
Height: 27.1 mm
Weight: 340 g

Packaging data

Package width: 238 mm
Package depth: 129 mm
Package height: 65 mm
Package weight: 1.03 kg

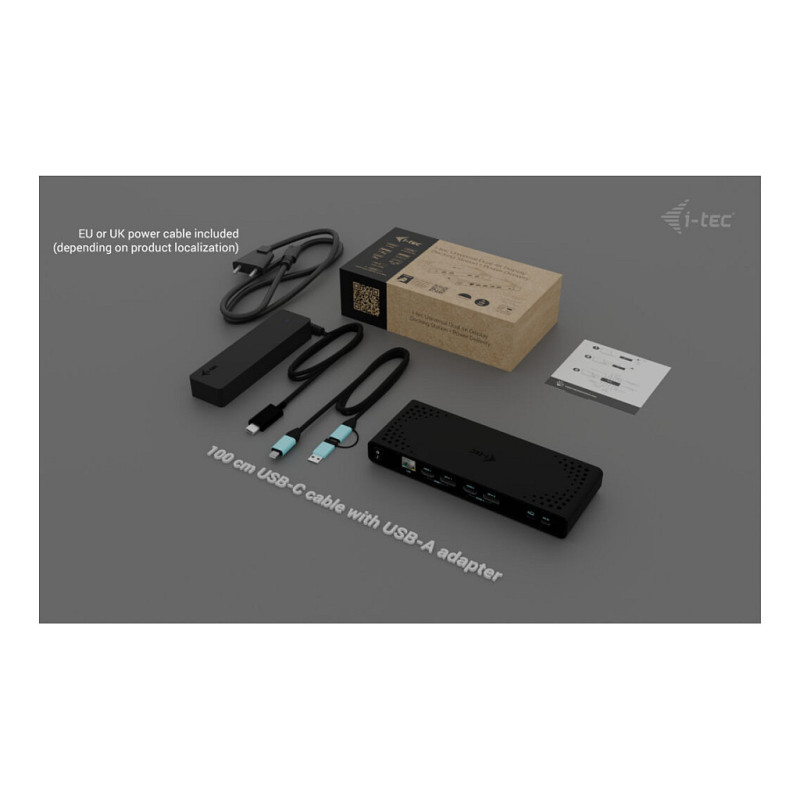

Packaging content

Cables included: AC, USB Type-A to USB Type-C, USB Type-C
Feature: AC adapter included
Feature: Manual
