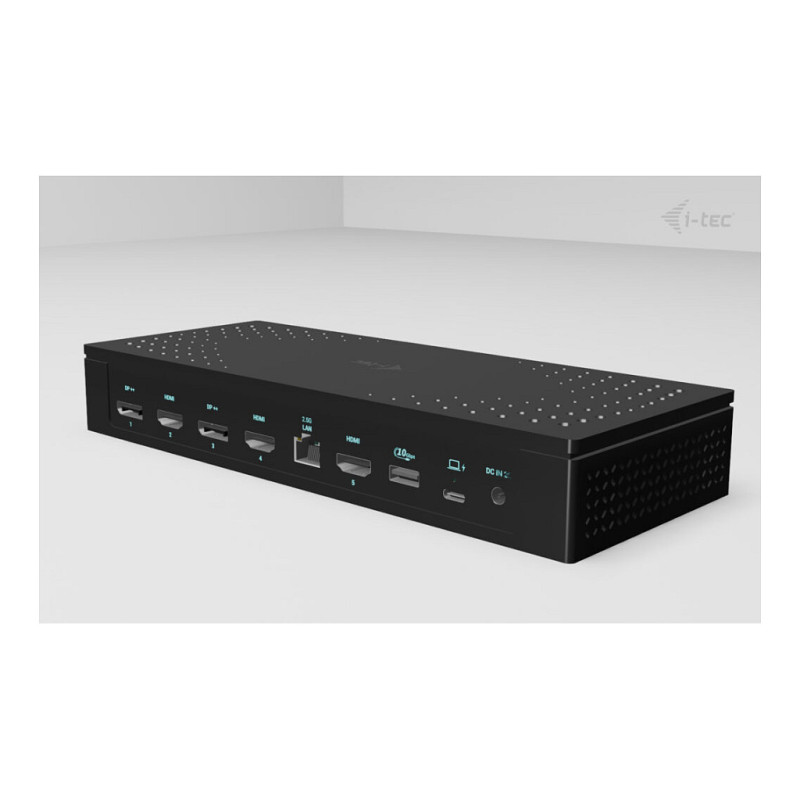

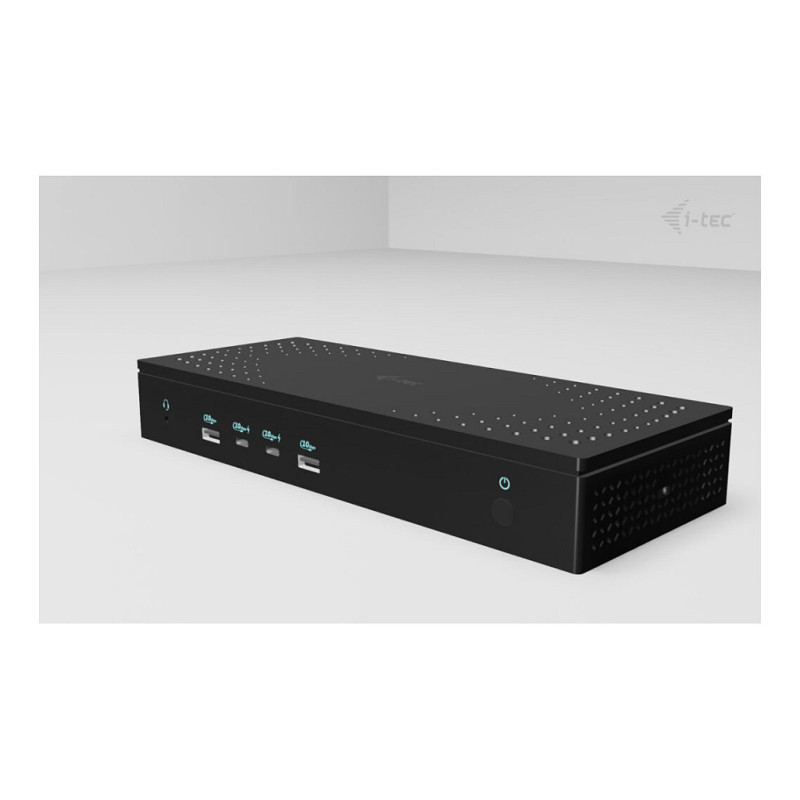

i-tec CA5MONITORDOCKPD laptop dock / port replicator

i-tec Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. Power supply: 130 W, Output voltage: 20 V, Output current: 6.5 A. Other operating systems supported: Android, ChromeOS

The highest performance docking station possible! Supports up to five external monitors* with 4K/60Hz resolution. And one monitor can even run at 8K/60Hz! The ideal dock product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features two USB-C fast charging ports (with up to 15W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5Gbps LAN port, and other peripherals.

The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.

The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

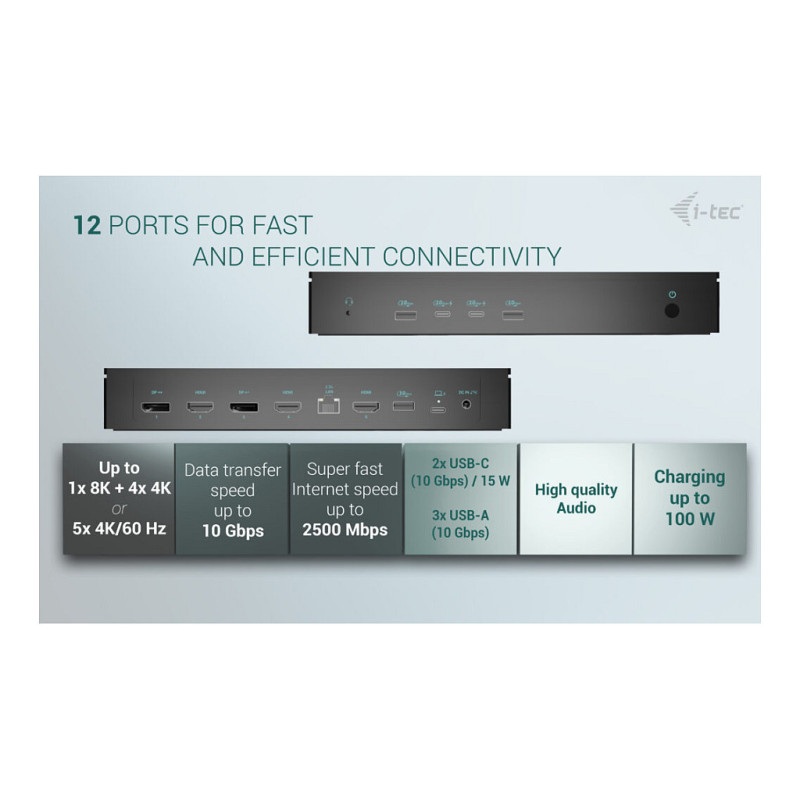

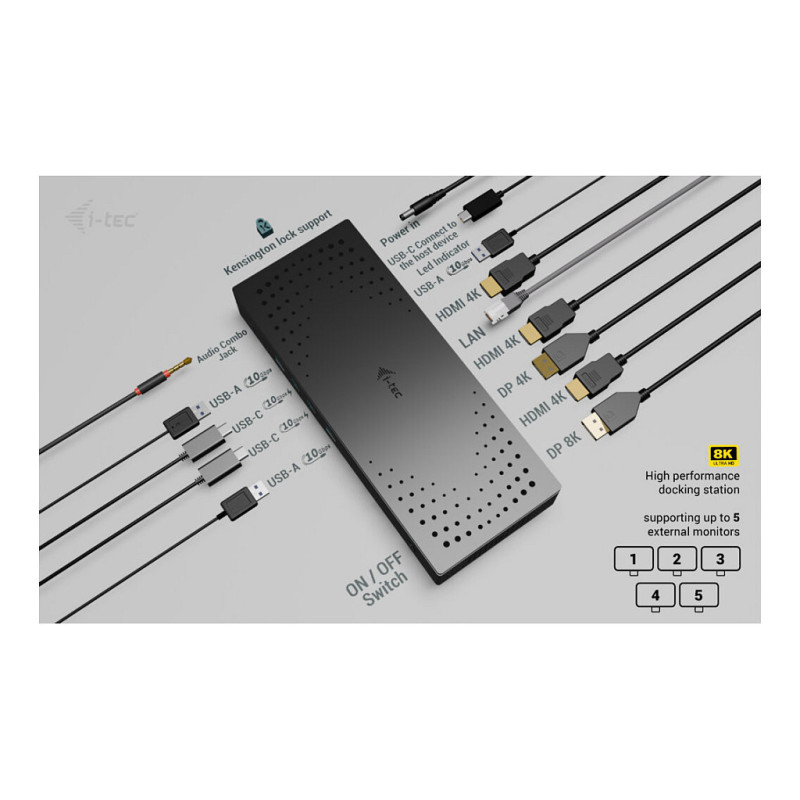

- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution
- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor

* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 3
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Feature: DC-in jack
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Performance

Data transfer rate: 10 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 5
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Black
Feature: On/off switch
LED indicators: Yes

Power

Power supply: 130 W
Output voltage: 20 V
Output current: 6.5 A
Compatible power plug types: EU
USB cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Weight & dimensions

Width: 245 mm
Depth: 98 mm
Height: 37 mm
Weight: 495 g

Packaging data

Package width: 259 mm
Package depth: 142 mm
Package height: 89 mm
Package weight: 1.28 kg

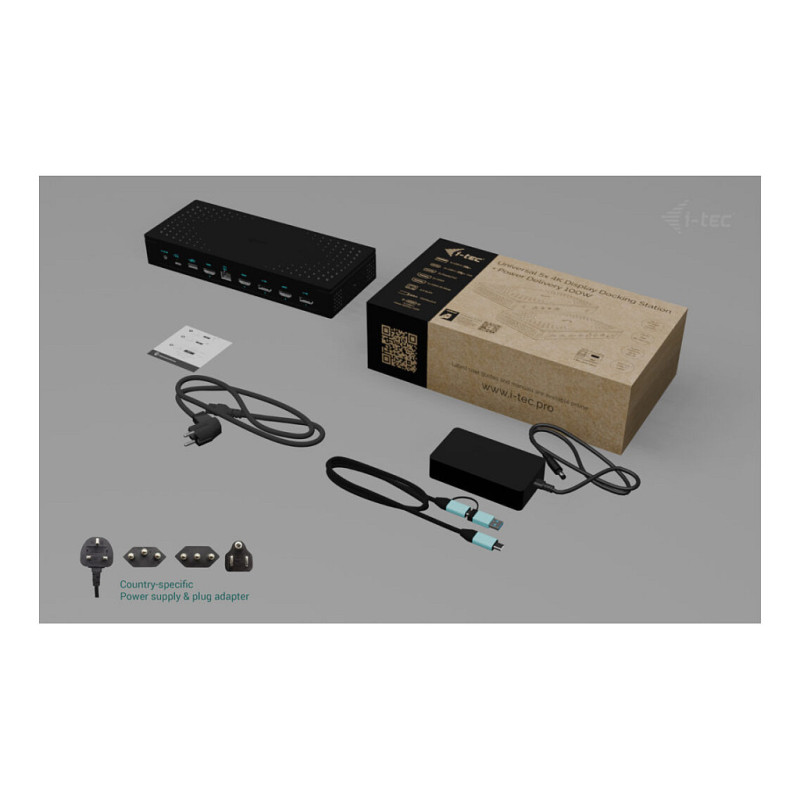

Packaging content

Cables included: USB Type-A to USB Type-C
Feature: AC adapter included
Feature: Manual
