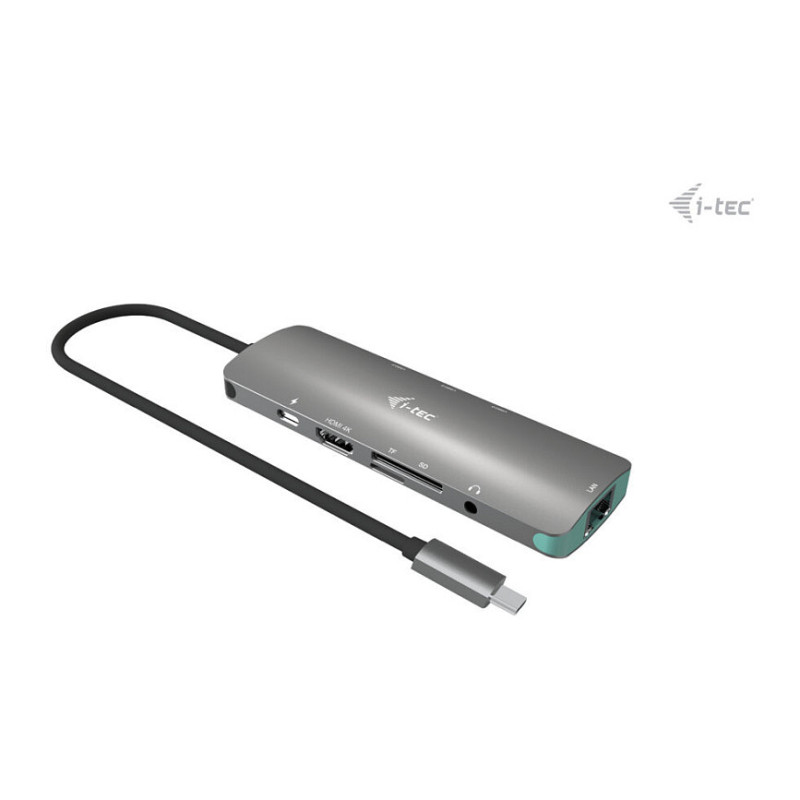

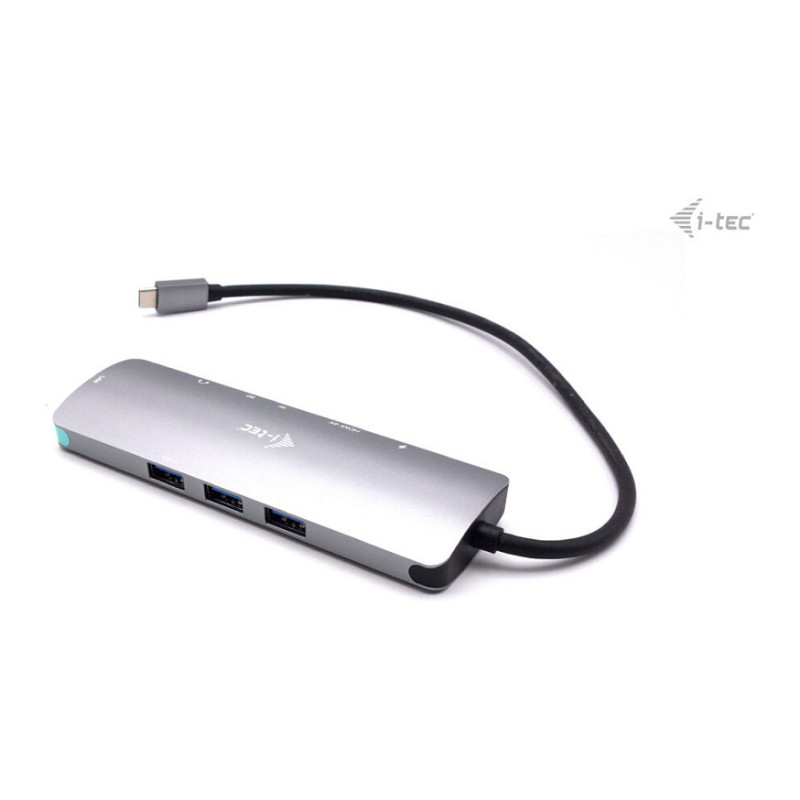

i-tec C31NANOLANPD100 laptop dock / port replicator

i-tec USB-C Metal Nano Docking Station 4K HDMI LAN with Power Delivery 100W + Universal Charger 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: AC, Power supply: 100 W, Output voltage: 5 / 9 / 12 / 15 / 20 V. Other operating systems supported: Android, ChromeOS

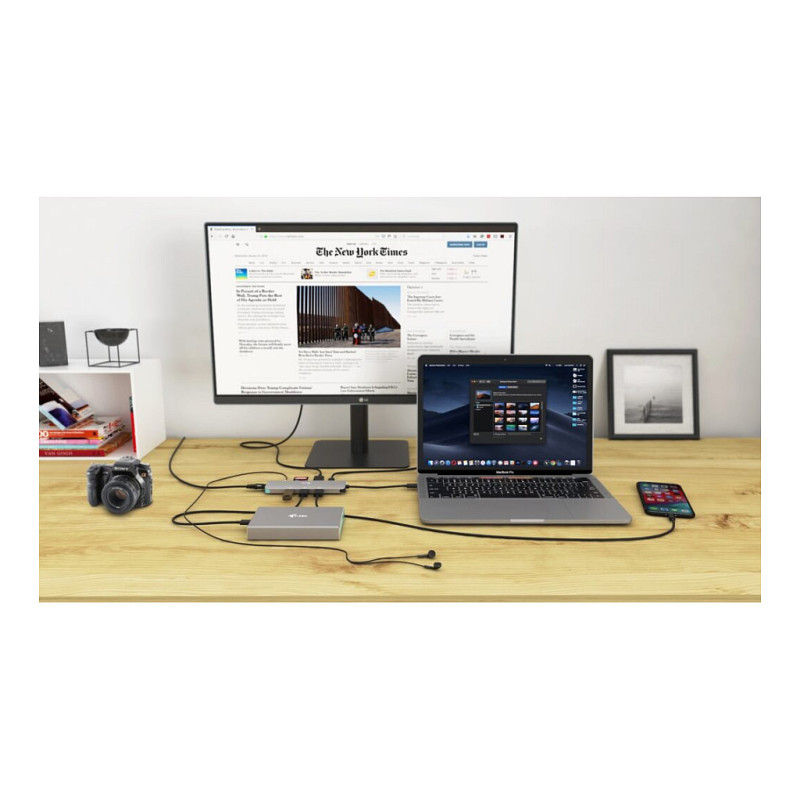

Expand your desktop with an external HDMI monitor or connect a projector or TV with HDMI. The docking station supports Ultra HD 4K video up to 3840×2160@60Hz including audio.
The station also offers USB-C Power Delivery up to 100W, which is designed to power a connected laptop or tablet using your original AC adapter. The docking station also supports charging connected USB mobile devices such as smartphones, e-book readers, media players, navigation devices and tablets.

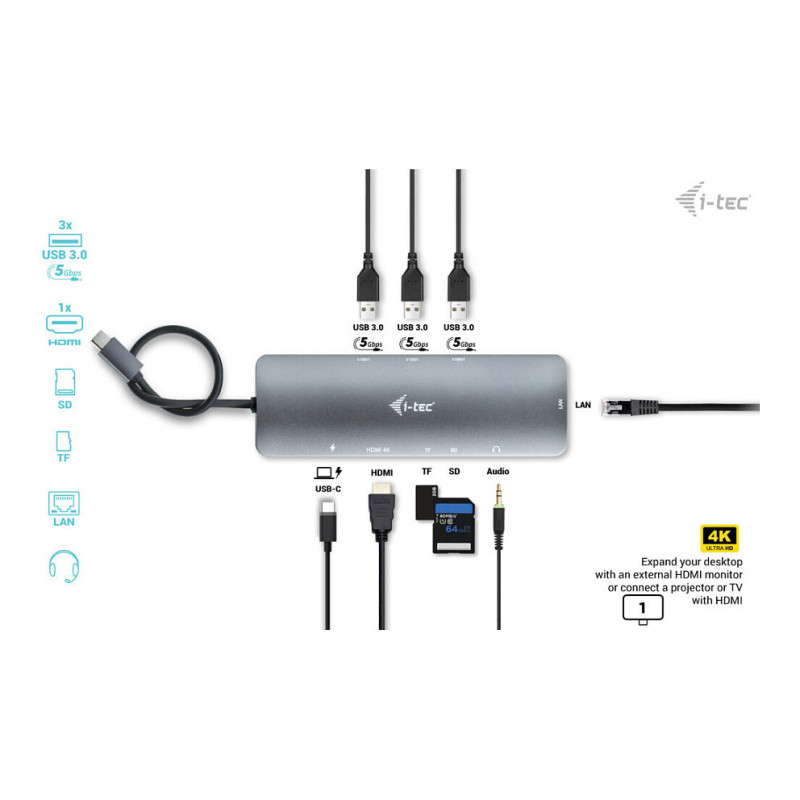

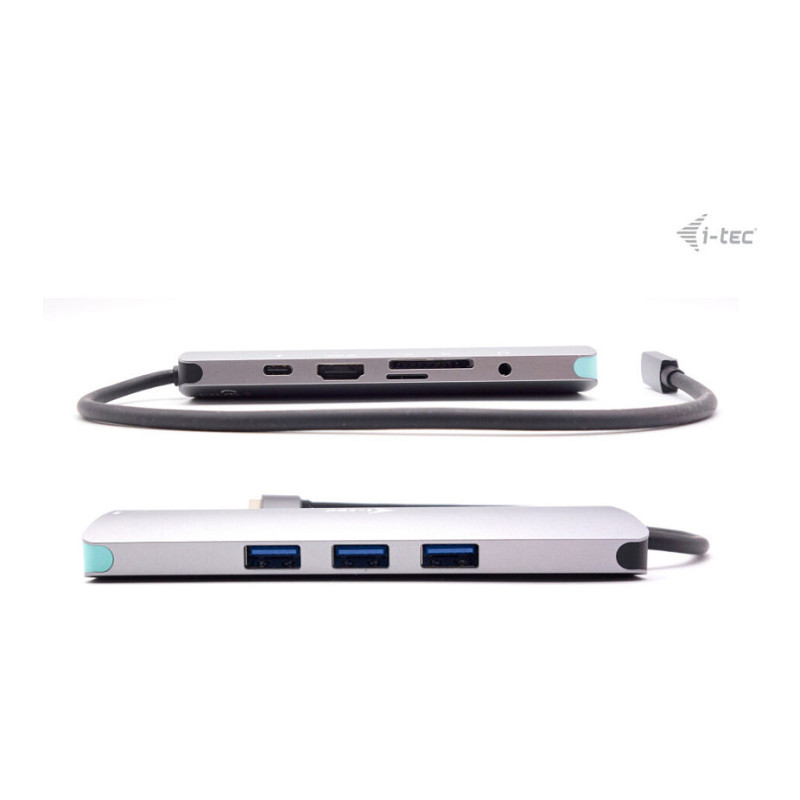

You will also have 3x USB 3.2 Gen1 (5 Gbps) port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port, 1x Combo audio jack (headphone and microphone), 1x SD card reader and 1x microSD card reader.

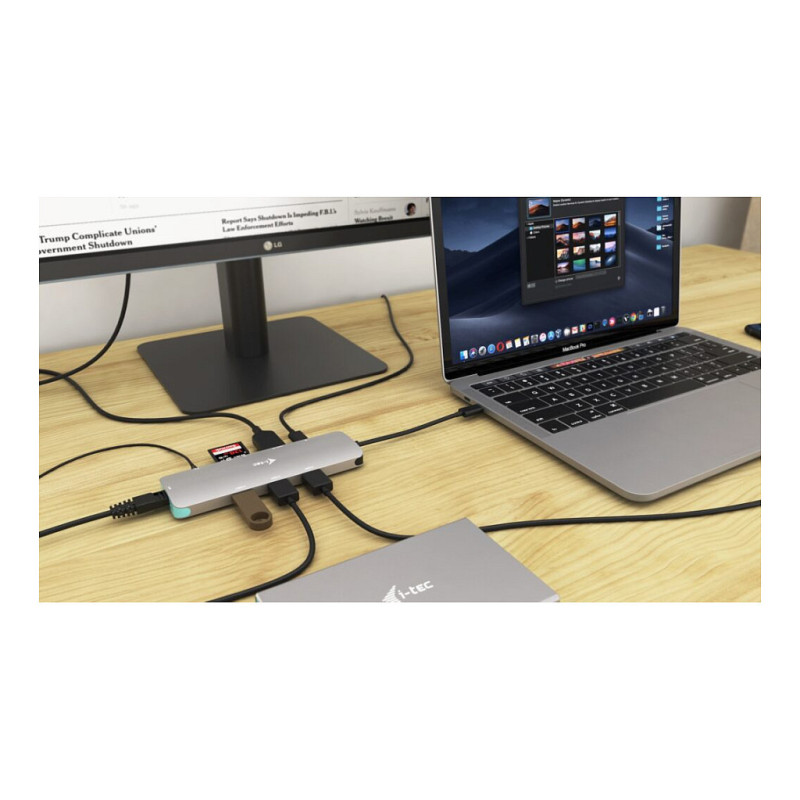

Connect the dock with a single cable (30cm) to your computer's USB-C, USB4 or Thunderbolt 3/4 port and you're ready to use it immediately. Driver installation is automatic from the system.
This docking station is suitable for use with all laptops and other devices that are equipped with a USB-C connector with video transfer support (USB-C DisplayPort Alt mode). In case of incompatibility, your new i-tec product may not work properly.
The dock also comes with a USB-C power adapter with a total of 100W (USB-C port: 100W)
- Connect external monitor up to 4K/60Hz
- Power delivery: up to 100 W (100 W power adapter included)
- 3x USB 3.2 Gen1 (5 Gbps), 1x SD and 1x microSD allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust, high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination jack for audio and microphone
- Universal USB-C charger 100W
- Supports Windows 10/11, macOS, Android, ChromeOS, iPad OS and Linux

Ports interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
Combo headphone/mic port: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 100,1000 Mbit/s

Performance

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Number of displays supported: 1
Maximum refresh rate: 120 Hz
Product colour: Grey
Housing material: Aluminium

Power

Power source type: AC
Power supply: 100 W
Output voltage: 5 / 9 / 12 / 15 / 20 V
Output current: 5 A
Compatible power plug types: EU

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Weight dimensions

Width: 130 mm
Depth: 43 mm
Height: 15 mm
Weight: 85 g

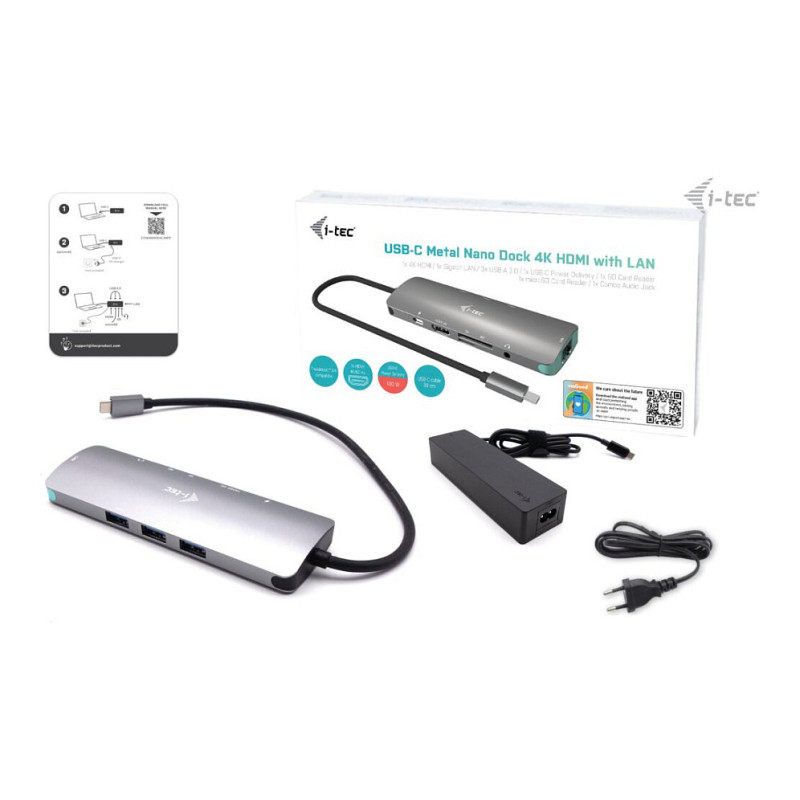

Packaging content

AC adapter included: Yes
Manual: Yes
