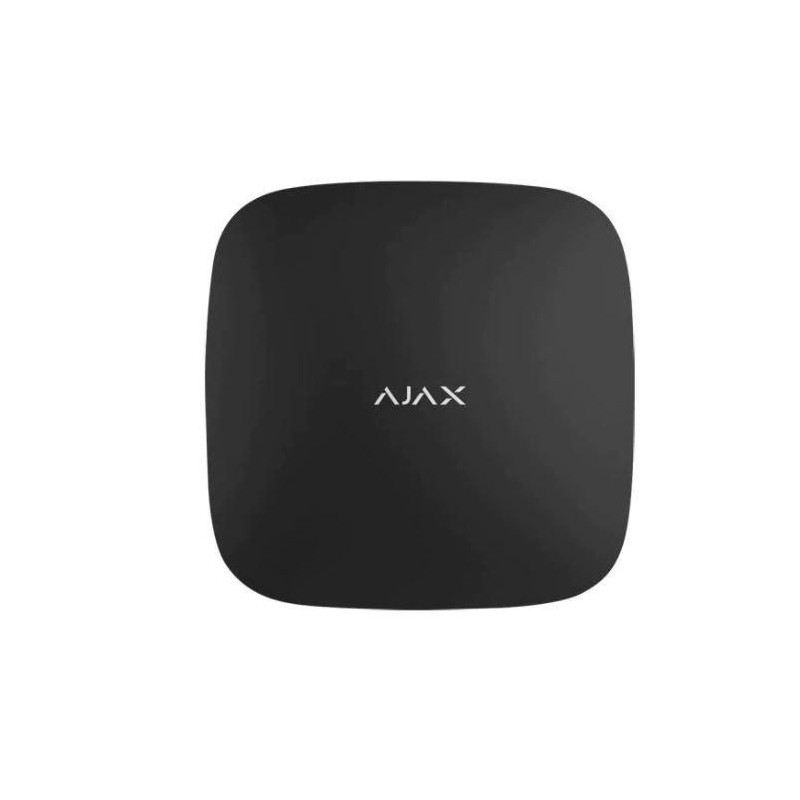

AJAX WRL RANGE EXTENDER REX 2 / BLACK 38208

EAN: 4823114015823

Classification
Radio channel range extender
Device type
Wireless
Installation method
Indoors
Compatibility
Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher

The list of compatible devices
Alarm signal delivery time
0.3 seconds
Maximum connected devices (in a system with one range extender)
Hub 2 — up to 99
Hub 2 Plus — up to 199
Number of range extenders connected to the hub
5
Operating system
OS Malevich

Firmware update details
Power supply
110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of backup battery life
Jeweller radio protocol
Communication range with the hub — up to 1,700 m in open space
Communication range with detectors — up to 1,700 m in open space, depending on the detector model
Two-sided communication between devices
Operating frequencies:
866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
(depends on the region of sale)
Auto-regulated radio signal power: ≤ 25 mW
Blocking encryption based on the AES algorithm
Detector ping interval — 12-300 seconds
Frequency hopping

Learn more about Jeweller
Operating temperature range
From −10°C to +40°C
Operating humidity
Up to 75%
Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant
Dimensions
163 × 163 × 36 mm
Weight
330 g
Warranty
24 months from the date of sale
Complete set
ReX 2
SmartBracket mounting panel
Power cable
Installation kit
Quick start guide
Service life
10 years
