Heating System Actuator - HiSmart AC 230V NC Thermal Actuator 2W VA80 0-60 °C
Product reference:
14-9990000260492
The NC thermal actuator operates at 230V AC and consumes only 2W of power. It is easily connected to heating systems using the VA80 thread adapter and has a temperature range from 0°C to +60°C.
Heating System Actuator - HiSmart AC 230V NC Thermal Actuator 2W VA80 0-60 °C
Product reference:
14-9990000260492
The NC thermal actuator operates at 230V AC and consumes only 2W of power. It is easily connected to heating systems using the VA80 thread adapter and has a temperature range from 0°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available

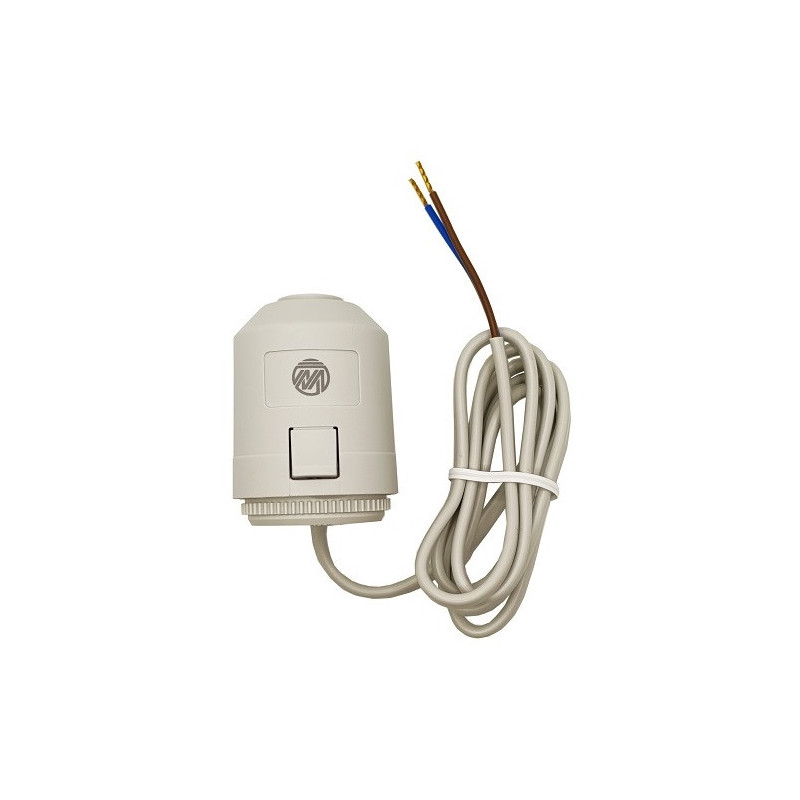

Thermal Actuator, NC, 230V AC
The NC thermal actuator operates at a voltage of 230V AC and consumes only 2W energy. It is easily connected to heating systems using a VA80 thread adapter and has a temperature range from 0°C to +60°C.
- Efficient NC (normally closed) design for precise temperature control in water heating systems.
- Easy installation with VA80 thread adapter, ensuring secure connection to standard M30 threads.
- Low energy consumption - only 2W, ensuring energy efficiency.
- Compatible with both programmable and non-programmable room thermostats, making it versatile for use.
Features | |
|---|---|
| Product Type | Thermal Actuator |
| Operation Type | Normally Closed (NC) |
| Operating Voltage | AC 230V, 50/60Hz |
Specifications | |
| Starting Current | Max. 300mA |
| Energy Consumption | 2W |
| Installation | Connected to the manifold via a VA80 thread adapter |
| Cable Length | 90cm |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +65°C |
| Operating Humidity | < 80% RH (non-condensing) |
| Safety Class | IP54 |
| Dimensions | Ø49.4mm x 56.6mm |
| Height | 100mm |
| Length | 300mm |
| Weight | 450 g |
| Width | 100mm |
