JOPIX CB80

Multi-standart nešiojama CB radijo stotelė CB-80

Techinnės charakteristikos:

GENERAL

• Frequency Range: 26.565 MHz - 27.99125 MHz (Depending on the programmed multi-standard mode
• Memory channels: Up to 80 channels (Depending on the programmed multi-standard mode)
• Modulation type: A3E/F3E (AM/FM)
• Operating temperature: -20 º + 60ºC
• Lithium-Ion battery 7.V/2600 mAh
• Antenna impedance: 50 Ohm
• Dimensions: 120 x 61, x 41 mm (without antenna)
• Weight: 290 g

RECEIVER

• Sensitivity: ≤6 dBµV (12 dB/SINAD)
• Adjacent channel selectivity: ≥ 60 dB
• Intermodulation: ≥ 50 dB
• Intermediate frequencies: 10.7 MHz (1st IF) / 450 kHz (2nd IF)
• Spurious radiation: ≤ 47 dBm

TRANSMITTER

• Maximum transmission power: 4W
• Frequency error: ± 0.6 KHz
• Maximum deviation: ±2 KHz
• Adjacent channel power: ≤ 20 µW
• Spurious emissions: ≤ 4 nW

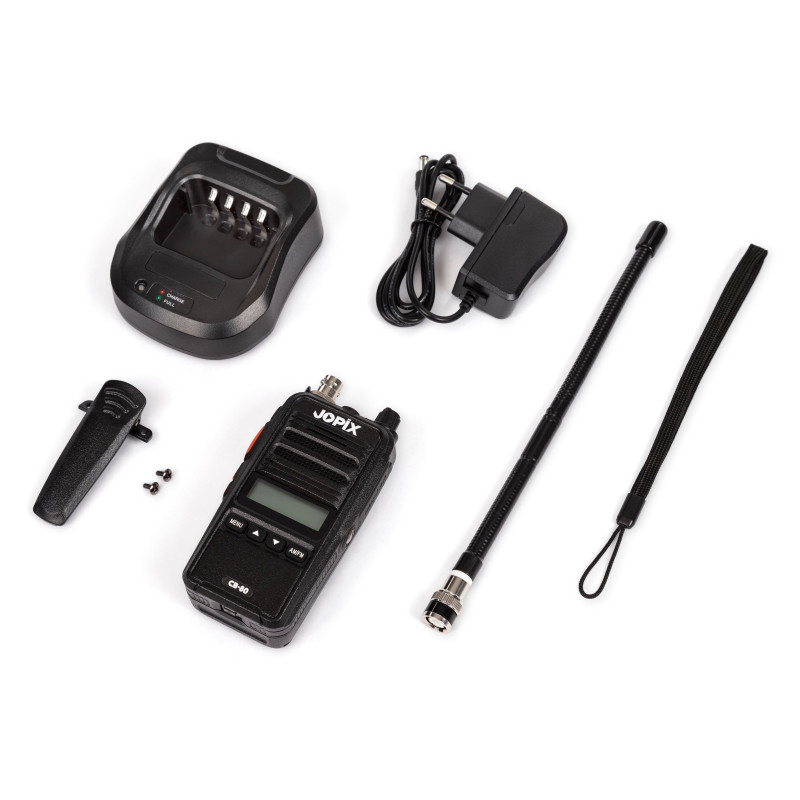

CONTENT

• CB-80 portable transceiver
• High performance antenna
• Battery Li-Ion 7.4V 2,600 mAh
• Desktop charger
• AC 220/230V power supply
• Belt clip
• Hand strap
• Instruction manual (Spanish, English, Portuguese, French)
