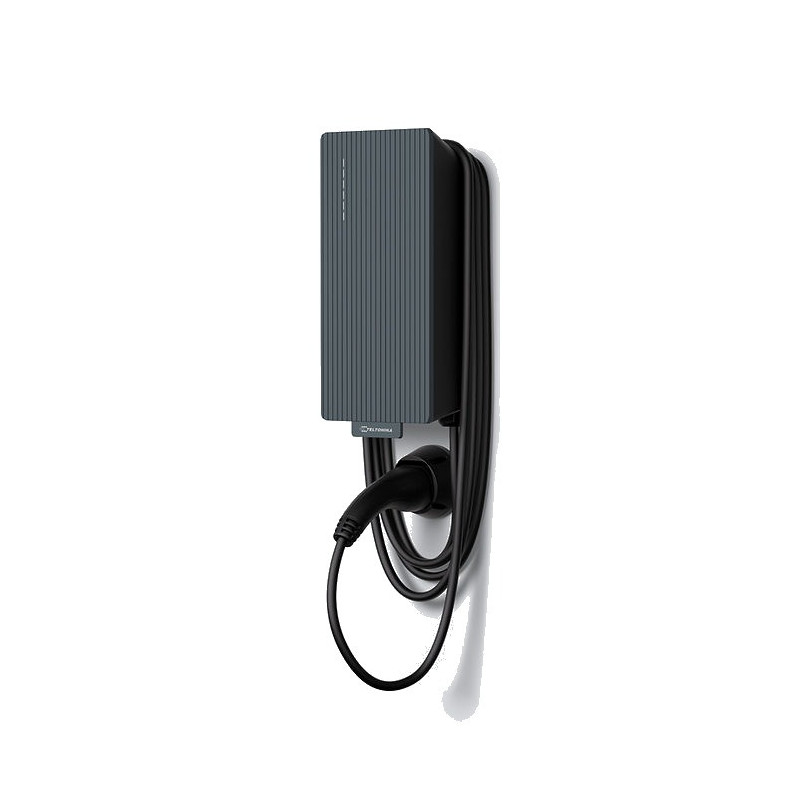

Car charging station Teltonika TeltoCharge EVC2001120S0 (5 m cable, 11 kW, 16 A, 3 phases, GSM, Wi-Fi, OCPP 1.6, IP56)
Product reference: 26-TELTOCHARGEEVC2001120S0
  • Type: Electric vehicle charging station (without facade panel)
  • Brand: Teltonika
  • Model: EVC2 EVC2001120S0
  • Series: TeltoCharge
  • Installation: Wall-mounted
  • Cable: 5 m
  • Charging power: 11 kW
  • Current: 16 A
  • Phases: 3 phases
  • Connectivity: GSM (SIM / eSIM), Wi-Fi 2.4 GHz, LAN, Bluetooth
  • Authentication: NFC
  • Control: App
  • Protocol: OCPP 1.6
  • Control system: RMS support
  • Indication: LED
  • Protection class: IP56
  • Impact resistance: IK10
  • Flammability class: UL-94 V-0
  • Operating temperature: −30 °C to 50 °C
Car charging station Teltonika TeltoCharge EVC2001120S0 (5 m cable, 11 kW, 16 A, 3 phases, GSM, Wi-Fi, OCPP 1.6, IP56)

Car charging station Teltonika TeltoCharge EVC2001120S0 (5 m cable, 11 kW, 16 A, 3 phases, GSM, Wi-Fi, OCPP 1.6, IP56)

Product reference: 26-TELTOCHARGEEVC2001120S0
  • Type: Electric vehicle charging station (without facade panel)
  • Brand: Teltonika
  • Model: EVC2 EVC2001120S0
  • Series: TeltoCharge
  • Installation: Wall-mounted
  • Cable: 5 m
  • Charging power: 11 kW
  • Current: 16 A
  • Phases: 3 phases
  • Connectivity: GSM (SIM / eSIM), Wi-Fi 2.4 GHz, LAN, Bluetooth
  • Authentication: NFC
  • Control: App
  • Protocol: OCPP 1.6
  • Control system: RMS support
  • Indication: LED
  • Protection class: IP56
  • Impact resistance: IK10
  • Flammability class: UL-94 V-0
  • Operating temperature: −30 °C to 50 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
59160 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Dimensions Width 190 mm, Height 401 mm, Depth 125 mm
  • Output options Type 2 cable 5 m, Type 2 cable 7.5 m, Type 2 socket, Type 2 socket with protective shutter (T2S)
  • Front plate options Anthracite Grey, Burgundy Red, Granite Brown, Winter White, Kebony® Wood
  • Control types Android app - Bluetooth and Local WiFi, iOS app - Bluetooth, OCPP 1.6 - Ethernet, WiFi, 4G
  • Power options 7.4 kW single phase, 11 kW three phase, 22 kW three phase
  • Certificates CE, RCM UKCA compliant; Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955; Environment: 2011/65/EU, REACH, RoHS, EUR1
  • Charger connectivity WiFi 2.4 GHz b/g/n, Bluetooth Low Energy 5.0, NFC card reader ISO 14443A, Ethernet (RJ45), 4G/LTE (CAT 1)
  • Input cabling Cable entry diameter up to 25 mm, Wiring cable cross section up to 10 mm², Cable entry from bottom or back
  • Protection Input and output voltage and current monitoring, Overvoltage category OVC III, Protection against electric shock, Residual current detection 6 mA DC (IEC 62955), Ground fault detection, IP56 dust and water protection, IK10 impact resistance, Fire class UL94
  • Nominal frequency 50/60Hz
  • Network/grounding types TN and TT
  • Voltage Single phase 230 V (±10%), Three phase 400 V (±10%)
  • Operating specifications Humidity up to 95% RH non-condensing, Operating temperature -30 °C to +50 °C, Storage temperature -40 °C to +60 °C
  • Temperature sensor In all main components
  • LED indicator lights Showing charging sequence and warnings/errors
  • Built-in energy metering Accuracy deviation <1%
  • Load balancing Static load balancing, Dynamic load balancing, Automatic phase balancing, Multi-device load balancing, Multi-level load balancing, Solar energy modes, Zero potential contact, Multi-sensor support
