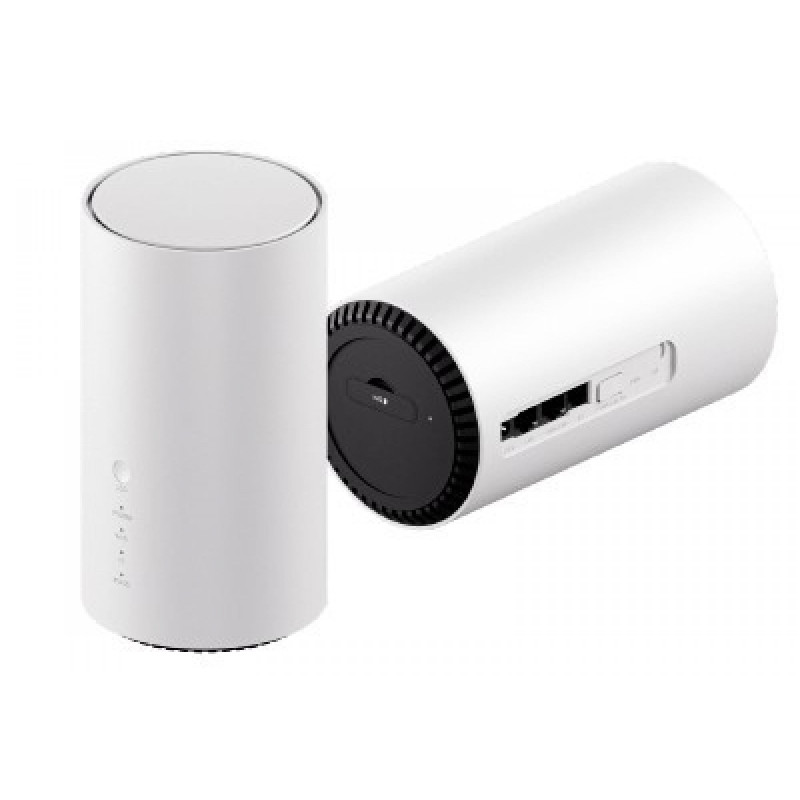

Wireless router Teltonika Altos CAP700 (5G, Wi-Fi 7, 2.5Gbps, 1xRJ45, 1 SIM)
Product reference:
26-TELTOLANCAP700
- Type: Router
- Brand: Teltonika
- Model: Altos CAP700
- Connectivity: 5G, LTE Cat19, Wi-Fi 7
- SIM: 1
- Ports: RJ45, RJ11
- Speed: up to 2.5 Gbps
- MIMO: 2x2
- Protocol: Modbus
- Protection class: IP30
- Operating temperature: 0 °C to 45 °C
Wireless router Teltonika Altos CAP700 (5G, Wi-Fi 7, 2.5Gbps, 1xRJ45, 1 SIM)
Product reference:
26-TELTOLANCAP700
- Type: Router
- Brand: Teltonika
- Model: Altos CAP700
- Connectivity: 5G, LTE Cat19, Wi-Fi 7
- SIM: 1
- Ports: RJ45, RJ11
- Speed: up to 2.5 Gbps
- MIMO: 2x2
- Protocol: Modbus
- Protection class: IP30
- Operating temperature: 0 °C to 45 °C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General information
- Mobile module 5G NR up to 4.0 Gbps DL / 900 Mbps UL; 4G LTE Cat 19 up to 1.6 Gbps DL / 200 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
- 3GPP edition Release 17
- Status IMSI, ICCID, operator, connection state, network type, CA, bandwidth, bands, signal metrics, data usage and cell info
- SMS SMS management, Email↔SMS, HTTP, SMPP, scheduled SMS, autoreply
- USSD Send and receive USSD messages
- Blocked/Allowed list Operator block/allow list by country or operator
- Frequency band management Band lock and used band status
- SIM PIN management Set/change/disable SIM PIN
- APN Auto APN
- Bridge Direct bridge between mobile ISP and LAN device
- Transfer Assign mobile WAN IP to LAN device
- Wireless connection 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), dual band, 2x2 MIMO, AP mode
- Wi-Fi security WPA/WPA2/WPA3, OWE, CCMP, TKIP
- Wi-Fi users Up to 128 simultaneous connections
- Wireless QR code QR login for automatic Wi-Fi access
- LAN 1 x 10/100/1000 Mbps Ethernet
- WAN/LAN 1 x 10/100/1000/2500 Mbps Ethernet
- Routing Static and dynamic routing, policy-based routing
- Network protocols TCP, UDP, IPv4/IPv6, HTTP(S), FTP, MQTT, SNMP, SSH, DHCP, WOL and others
- Wall of fire Port forwarding, traffic rules, NAT, DMZ, TTL control
- Hotspot Captive portal, RADIUS, SMS auth, SSO, themes and user management
- Network backup Mobile, VRRP and wired failover
- Load balancing Multi-WAN traffic balancing
- Safety Certificates, RADIUS, TACACS+, firewall, VLAN, web filter, attack prevention
- VPN OpenVPN, IPsec, GRE, PPTP/L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Industrial protocols BACnet, OPC UA, MODBUS, MQTT Gateway, DNP3, DLMS/COSEM
- Management Web UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
- IoT platforms ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
- CPU Qualcomm
- RAM 1 GB LPDDR4
- Flash storage 8GB eMMC
- Operating system RutOS (OpenWrt-based Linux)
- Power connector Barrel jack
- Input voltage 12 V DC
- Energy consumption lt;8 W idle, lt;24 W max
- Ethernet ports 1 x RJ45 10/100/1000 Mbps, 1 x RJ45 10/100/1000/2500 Mbps
- Telephone 1 x RJ11 port
- SIM card slot 1 x Nano SIM (4FF)
- Antenna 6 x internal mobile antennas, 2 x internal Wi-Fi antennas
- USB 1 x virtual network interface via micro USB
- Dimensions Ø 100 x 185 mm
- Weight 720g
- Housing Plastic panels
- Installation Flat surface placement
- Operating temperature 0°C to +45°C
- Operating humidity 5% to 95% non-condensing
- Ingress protection (IP protection class) IP30
- Certificates CE, UKCA, EAC, UCRF, RCM, CB, WEEE
| Manufacturer | Teltonika Networks |
| Manufacturer code | TELTOLANCAP700 |
| Weight | 0.000000 kg |
