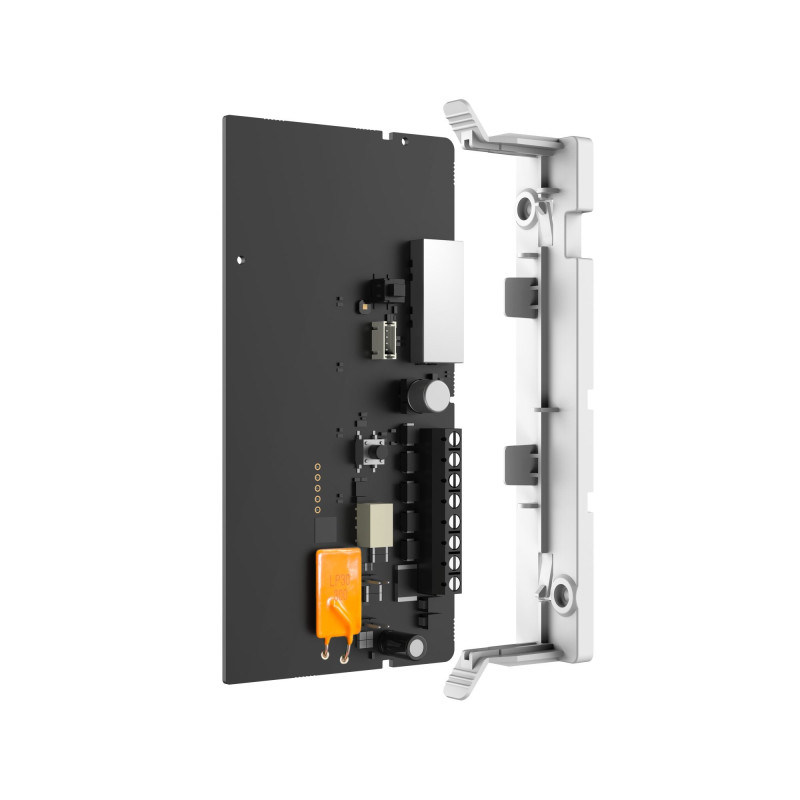

Wireless receiver Hikvision AX Hybrid Pro DS-PR1-WE (without housing)
Product reference: 26-6936422172473
  • Seamless integration of Tri-X wireless devices via the bus
  • Stable and encrypted 868 MHz radio communication with frequency hopping technology
  • Reliable wireless connectivity for greater installation flexibility
  • Integrated bus extender for longer bus range
Wireless receiver Hikvision AX Hybrid Pro DS-PR1-WE (without housing)

Wireless receiver Hikvision AX Hybrid Pro DS-PR1-WE (without housing)

Product reference: 26-6936422172473
  • Seamless integration of Tri-X wireless devices via the bus
  • Stable and encrypted 868 MHz radio communication with frequency hopping technology
  • Reliable wireless connectivity for greater installation flexibility
  • Integrated bus extender for longer bus range
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
36,38 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Bus interconnection
  • Bus extender Yes
  • Trunk technology Half-Duplex RS-485
  • Trunk cables 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
  • Compliance
  • EN 50131 Security Grade 2, Environmental Class II
  • Electrical compliance CE, CB
  • Environmental
  • Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
  • Relative humidity 10% ~ 90% non-condensing
  • Storage temperature -20°C to 60°C (-4°F to 140°F)
  • External devices
  • Wireless detectors 32
  • Wireless key fob 64
  • Wireless keypad / tag readers 8
  • Wireless sounders 12
  • Physical
  • Dimension (W × H × D) 110 × 155 × 31mm
  • Installation method Wall mount
  • Protection against counterfeiting Front and Rear
  • Weight 208 g
  • Power supply - general
  • Input voltage 12 VDC nominal (9~16 VDC), powered by bus
  • Max. current 150 mA @12VDC
  • Standby current 90 mA @12VDC
  • Wireless interconnection
  • Frequency 868.0-868.6 MHz
  • Transmission modulation 2GFSK
  • Transmission range 1600 m (open area)
  • Wireless technology Tri-X, 2-way encrypted wireless, radio frequency hopping

ManufacturerAX PRO
Manufacturer codeDSPR501HWEUNIT
Weight0.045 kg
