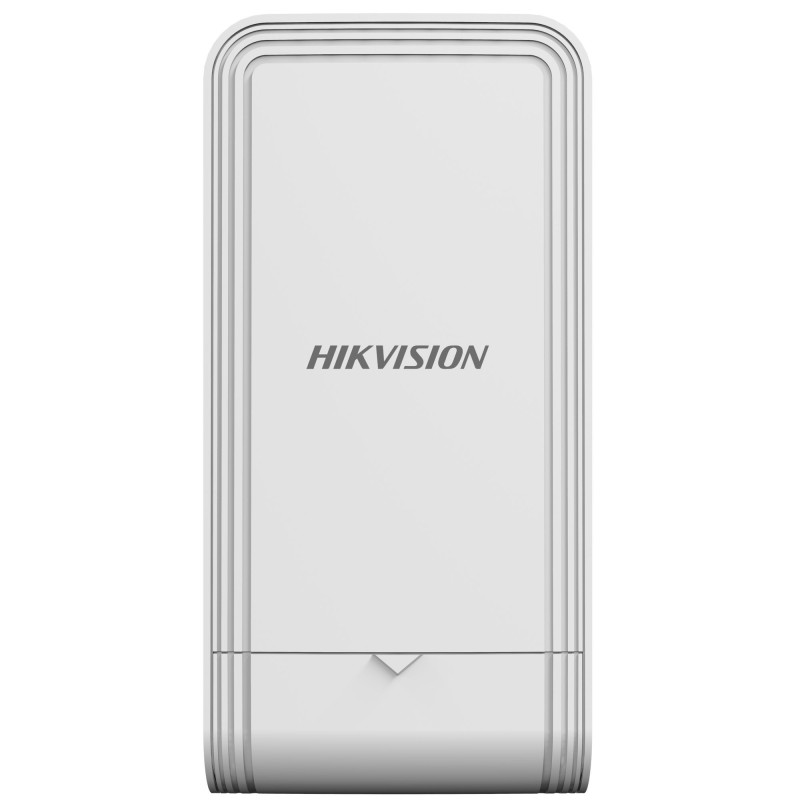

Wireless LAN transmission Hikvision DS-3WF0FA-2N/O

Product reference: 26-6942160437439

Wireless A/N speed up to 300Mbps
Antenna angle 65°
Adjustable transmission power up to 23dBm
Integrated 2×2 MIMO 7dBi antenna
HPP support
Supports open frequency from 2400 to 2483.5 MHz
Long-range wireless transmission up to 1 km
12-24 VDC passive PoE power supply
In the box: 1 x DS-3WF0FA-2N/O, 1 x power supply šaltinis(12 VDC, 1 A), 1 x 10/100 Mbps PoE Injector, 2 x Mounting strap, 1 x Installation manual

Wireless LAN transmission Hikvision DS-3WF0FA-2N/O

Product reference: 26-6942160437439

Wireless A/N speed up to 300Mbps
Antenna angle 65°
Adjustable transmission power up to 23dBm
Integrated 2×2 MIMO 7dBi antenna
HPP support
Supports open frequency from 2400 to 2483.5 MHz
Long-range wireless transmission up to 1 km
12-24 VDC passive PoE power supply
In the box: 1 x DS-3WF0FA-2N/O, 1 x power supply šaltinis(12 VDC, 1 A), 1 x 10/100 Mbps PoE Injector, 2 x Mounting strap, 1 x Installation manual

You have 3 products in compare list, please remove someone and try again

Add to compare

44,22 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Home
Product Dimensions (W × H × D) 92mm × 187mm × 58mm (3.62'' × 7.36'' × 2.28'')
Packaging Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Weight without packaging 0.26 kg (0.57 lb)
Weight with packaging 0.6 kg (1.32 lb)
In the package Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1.10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Packing Method Single unit packing
Operating temperature -30 °C to 70 °C (-22 °F to 158 °F)
Moisture resistance 5% to 95% (no condensation)
Storage conditions temperature -40 °C to 80 °C (-40 °F to 176 °F)
Storage conditions humidity 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Energy consumption 1.95 W for typical (1-ch 2MP IPC), Max. 5W

Wireless settings
Max. Transmission Rate of Air Interface ≤ 300Mbps
Wireless standard IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
Working Frequency Band 2400MHz ~ 2483.5MHz
Antenna amplification 7 dBi
Antenna Angle (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
Transmitting Power 17±2 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -87±2 dBm @HT40 MCS0
Throughput Rate Point to point: Support up to 8-ch IPC (2MP) in Max. 1 KM distance and Max. 40 Mbps bandwidth, Point to multi-point: Support up to 4-ch IPC (2MP) in Max. 1 KM distance and Max. 20 Mbps bandwidth within 65° ± 5°, Max. 1 to 4 PTMP connection

Software features
Application Function TDMA,DFS,TPC,IFM,IPM
Channel width 10/20/40MHz
Channel Selection Auto/manual selection
Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Management Method Web,iVMS-4200,HCP
Upgrade Web,iVMS-4200,HCP
System Log Syslog, Control center information

Approvals
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Security UL (62368),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemical analysis CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
