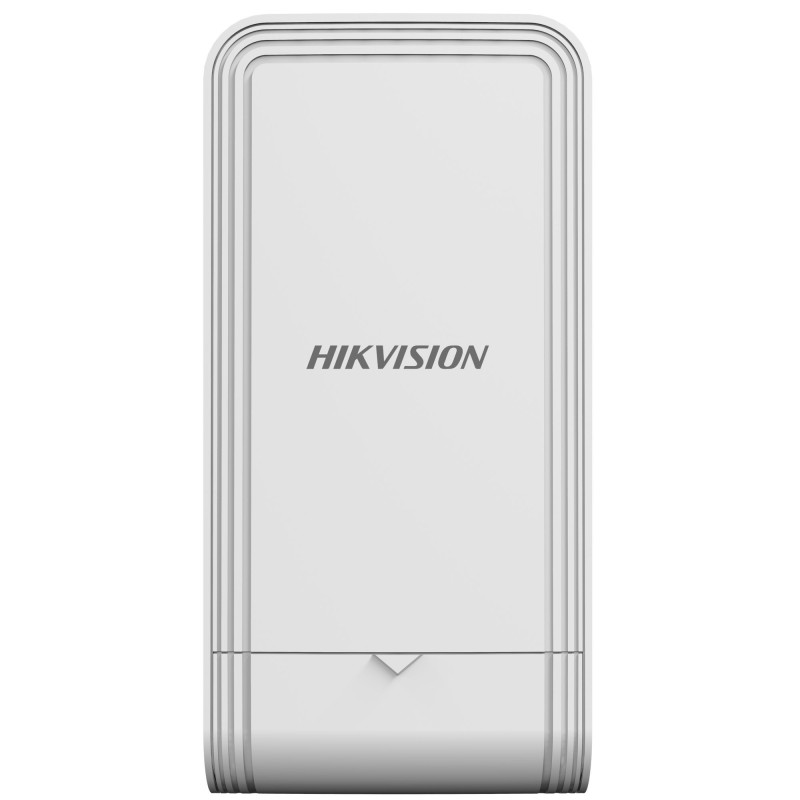

Wireless LAN transmission Hikvision DS-3WF03C-5AC/O
Product reference: 26-6931847198916
  • Wireless A/N speed up to 867Mbps
  • Antenna angle 35°
  • Adjustable transmission power from 0 to 27dBm
  • Integrated 2×2 MIMO 12dBi antenna
  • HPP support
  • Supports open frequency from 5150 to 5820 MHz
  • Long-range wireless transmission up to 15 km
  • 12-24 VDC/1A passive PoE
  • In the box: 1 x DS-3WF03C-5AC/O, 1 x power supply šaltinis(12 VDC, 1 A), 2 x Mounting strap, 1 x Installation instructions
Wireless LAN transmission Hikvision DS-3WF03C-5AC/O

Wireless LAN transmission Hikvision DS-3WF03C-5AC/O

Product reference: 26-6931847198916
  • Wireless A/N speed up to 867Mbps
  • Antenna angle 35°
  • Adjustable transmission power from 0 to 27dBm
  • Integrated 2×2 MIMO 12dBi antenna
  • HPP support
  • Supports open frequency from 5150 to 5820 MHz
  • Long-range wireless transmission up to 15 km
  • 12-24 VDC/1A passive PoE
  • In the box: 1 x DS-3WF03C-5AC/O, 1 x power supply šaltinis(12 VDC, 1 A), 2 x Mounting strap, 1 x Installation instructions
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
73,53 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Product Dimensions (W × H × D) 92mm × 187mm × 58mm (3.62'' × 7.36'' × 2.28'')
  • Packaging Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
  • Weight without packaging 0.307 kg (0.677 lb)
  • Weight with packaging 0.807 kg (1.779 lb)
  • In the package Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
  • Packing Method Single unit packing
  • Operating temperature -30 °C to 70 °C (-22 °F to 158 °F)
  • Moisture resistance 5% to 95% (no condensation)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Installation Mode Pole Mounting
  • Ingress Protection IP55
  • Energy consumption 3 W for typical (1-ch 2MP IPC), Max. 7.5 W
  • Key Features
  • Transmitting Power 27dBm
  • Wireless settings
  • Max. Transmission Rate of Air Interface ≤ 867Mbps
  • Wireless standard IEEE 802.11/a/n/ac
  • Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
  • Antenna amplification 12 dBi
  • Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
  • Receiving Sensitivity -60±2 dBm@AC80-MCS9,-86±2dBm@AC80-MCS0
  • Throughput Rate Point to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth, Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth, Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection
  • Hardware Parameters
  • Network interface 2 × 1000 Mbps RJ45 ports
  • LED indicator Power indicator, LAN indicator, Signal intensity indicator
  • Reloading Hardware reset button
  • Power supply 12-24 VDC/1 A Passive PoE
  • Software features
  • Application Function TDMA,DFS,TPC,IFM,IPM
  • Channel width 20/40/80MHz
  • Channel Selection Auto/manual selection
  • Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
  • Security Mode WPA2-PSK
  • Security Mechanism Wireless network name hidden
  • Management Method Web,HCP
  • Upgrade Web,iVMS-4200
  • System Log Syslog, Control center information
  • Approvals
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemical analysis CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247

ManufacturerHikvision
Manufacturer codeCPEDS3WF03C5ACO
Weight0.31 kg
