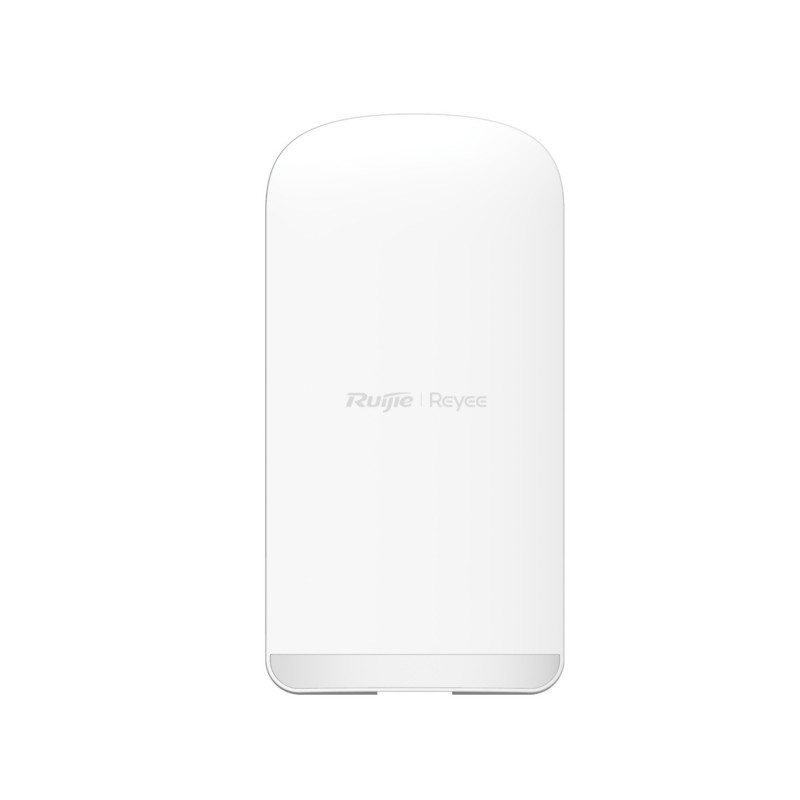

Wireless LAN transmission (Bridge) Ruijie RG-EST330F-P (2.4 GHz / 5 GHz, 3km, 1 pc.)
Product reference: 26-6976915002610
  • Type: Wireless LAN transmission (Bridge)
  • Model: Ruijie Reyee RG-EST330F-P
  • Wi-Fi standard: Wi-Fi 5 (IEEE 802.11b/g/n/ac)
  • Transmission frequency: 300Mbps @ 2,4GHz; 867Mbps @ 5 GHz
  • Ports: 3 x 100Mbps RJ45 (1 x PoE in; 2 x PoE out)
  • PoE power output: 15,4W via 2 ports
  • Antennas: directional, 13 dBi
  • Recommended distance: up to 3 km
  • MIMO technology: 2x2 MU-MIMO
  • Polarization: horizontal 30°, vertical 30°
  • IP class: IP55
  • Energy consumption: < 24,4W
  • Power supply: 12/24V passive PoE; 802.3af/at PoE or 12/24V 1,5A DC
  • Operating temperature: from -30°C to 55 °C
  • Warranty: 3 years
  • Included: 1 pc. with PoE injector and 24V 1,5V DC power supply

  • Note: PoE OUT will only work if the antenna is powered by 24V passive PoE or 802.3at PoE power.
Wireless LAN transmission (Bridge) Ruijie RG-EST330F-P (2.4 GHz / 5 GHz, 3km, 1 pc.)

Wireless LAN transmission (Bridge) Ruijie RG-EST330F-P (2.4 GHz / 5 GHz, 3km, 1 pc.)

Product reference: 26-6976915002610
  • Type: Wireless LAN transmission (Bridge)
  • Model: Ruijie Reyee RG-EST330F-P
  • Wi-Fi standard: Wi-Fi 5 (IEEE 802.11b/g/n/ac)
  • Transmission frequency: 300Mbps @ 2,4GHz; 867Mbps @ 5 GHz
  • Ports: 3 x 100Mbps RJ45 (1 x PoE in; 2 x PoE out)
  • PoE power output: 15,4W via 2 ports
  • Antennas: directional, 13 dBi
  • Recommended distance: up to 3 km
  • MIMO technology: 2x2 MU-MIMO
  • Polarization: horizontal 30°, vertical 30°
  • IP class: IP55
  • Energy consumption: < 24,4W
  • Power supply: 12/24V passive PoE; 802.3af/at PoE or 12/24V 1,5A DC
  • Operating temperature: from -30°C to 55 °C
  • Warranty: 3 years
  • Included: 1 pc. with PoE injector and 24V 1,5V DC power supply

  • Note: PoE OUT will only work if the antenna is powered by 24V passive PoE or 802.3at PoE power.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
66,02 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model RG-EST330F-P
  • Product type Bridge
  • Applicable Scenarios CCTV
  • Radio design Dual-radio, 3 spatial streams (2.4 GHz: 1 x 1, SISO; 5 GHz: 2 x 2, MIMO)
  • Operating band 2.4 GHz: 2.400-2.483 GHz, 5 GHz: 5.150-5.850 GHz (varies by region)
  • Wi-Fi standard Wi-Fi 5 (802.11ac), backward compatible with 802.11a/b/g/n
  • Channel width 2.4 GHz: Auto/20/40 MHz; 5 GHz: Auto/20/40/80 MHz
  • Maximum transmission rate 1166 Mbps (2.4 GHz: 300 Mbps, 5 GHz: 866 Mbps)
  • Maximum transmit power 2.4 GHz: 20 dBm; 5 GHz: 29 dBm (via link: 26 dBm)
  • Receive sensitivity 802.11b: -91 dBm to -85 dBm; 802.11a/g: -89 dBm to -71 dBm; 802.11n: -83 dBm to -65 dBm; 802.11ac HT20/40/80: -83 to -51 dBm
  • Modulation 802.11b/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Antenna (2.4 GHz) 1 x 1 built-in omnidirectional antenna, gain: 2 dBi
  • Antenna (5 GHz) 2 x 2 built-in directional antenna, gain: 13 dBi, H/V orientation: 30°
  • Processor Single-core, 575/580 MHz
  • Memory Flash: 16 MB, RAM: 64 MB DDR2
  • Weight 0.37 kg (0.82 lbs)
  • Shipping weight 0.91 kg (2.01 lbs)
  • Product dimensions 240 x 133 x 71 mm (9.45 x 5.24 x 2.80 in.) excluding mounting bracket
  • Package dimensions 276 x 165 x 107 mm (10.87 x 6.50 x 4.21 in.)
  • Color Elegant white
  • LAN ports 3 x 10/100BASE-T
  • Reset button 1
  • LED indicators 1 x System Status, 3 x Ethernet Port, 3 x Signal Status
  • Power supply methods DC Adapter, Passive PoE Injector, 802.3af/at
  • Power input (adapter) 100-240 V AC, 50/60 Hz, 1 A max.; Output: 24 V DC, 1.5 A
  • Power input (passive PoE) 24 V DC, 1.5 A input/output
  • Local power supply Yes, 12 V DC, 1 A via connector (Ø 5.5 mm/2.1 mm, depth 9 mm)
  • PoE input 1 x PoE In, 1 x PoE/PoE+ In
  • PoE output 2 x PoE Out ports (IEEE 802.3af/at or 24 V DC non-standard), 15.4 W total budget
  • Max. power consumption 9 W (without PoE Out), 24.4 W (with PoE Out)
  • Installation options Wall / Pole
  • Operating temperature -30°C to +55°C (-22ºF to +131ºF)
  • Storage temperature -40°C to +85°C (-40ºF to +185ºF)
  • Humidity 5-95% RH non-condensing (operating storage)
  • Height -500 m to +5000 m (-1640.42 to +16404.20 ft)
  • MTBF 400,000 hours (approx. 45 years)
  • Cooling Natural cooling
  • IP class IP55
  • ESD protection Contact: ±8 kV, Air: ±15 kV (Class B)
  • Surge protection Service port: ±4 kV; Power connector: ±4 kV common mode, ±2 kV differential mode
  • Security EN62368-1
  • EMC standards EN 55032, EN 55035, EN 61000-3-2/3-3, EN 301489-1/3/17
  • Certification CE, CB
  • WLAN features BaseStation/CPE mode, TDMA, SSID hiding, WPA2-PSK, bridge speed test, WMM, up to 16 PTMP connections, 3 km bridge distance
  • Bridge performance HT40: 90 Mbps @ 0.5 km, 80 Mbps @ 1 km, 60 Mbps @ 2 km, 40 Mbps @ 3 km
  • Signal strength RSSI -53 dBm @ 0.5 km, -59 dBm @ 1 km, -65 dBm @ 2 km, -70 dBm @ 3 km
  • Recommended camera load Up to 18 (3 Mbps) or 5 (7-8 Mbps) depending on distance
  • Pairing One-touch pairing, 20 m effective distance
  • SON features 200 device max, optimal signal, standby channel, active recovery
  • Management eWeb login, local upgrade, config backup, language: EN/Chinese, time settings
  • Switching features 10/100 Mbps auto-negotiation, VLAN
  • IP services IPv4 ping/traceroute, DHCP client/server
  • Security Storm control
  • Cloud features SON, Ruijie Cloud management, SSID config, fault diagnosis, AI heatmap
  • Package contents Device x1, Cable tie x4, 24 V/1.5 A Adapter x1, PoE Injector x1, Mounting Template x1, Screws x4, User Manual x1, Warranty Card x1

ManufacturerRuijie Networks
Manufacturer codeRUIJIERGEST330FP
Weight0.58 kg
