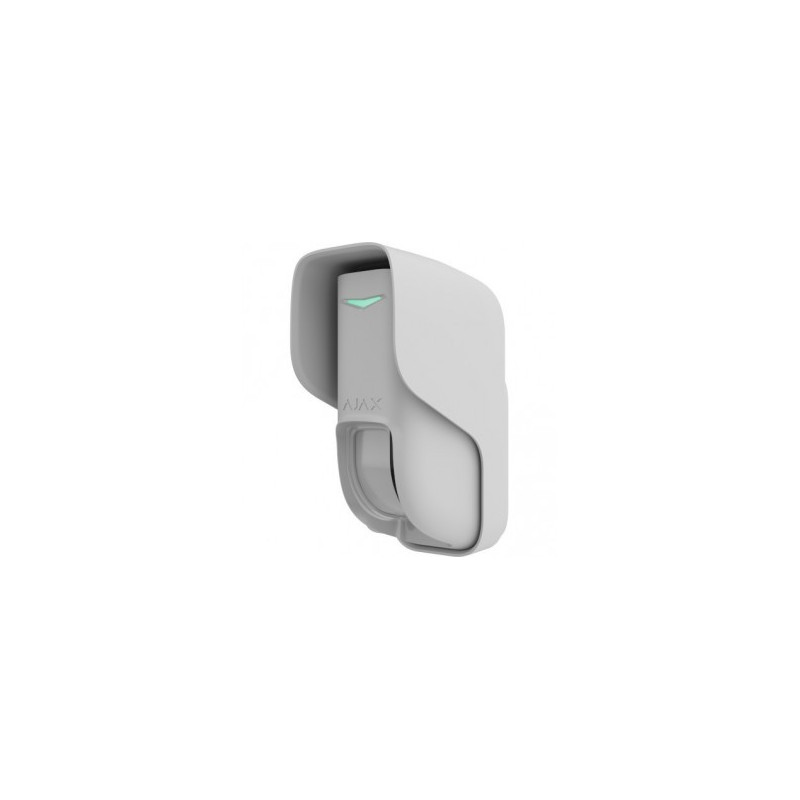

Wireless combined motion sensor with curtain function Ajax 101441.289.WH1 (white)
Product reference:
26-4823114061639
- Type: Wireless combined motion sensor with curtain function
- Color: White
- Detection range: Up to 12 m
- Vertical viewing angle: 85° / 15°
- Technology: Dual motion detection with human and animal discrimination
- Additional protection: Rain and snow cover, can be mounted on a third-party mount
- Communication range: Up to 1700 m with Ajax hub or repeater
- Functions: Informational push notifications, remote control and configuration via Ajax application
- Battery life: Up to 3 years
- Protection class: IP55
- Code: 101441.289.WH1
- Battery type: 2 x CR123A (pre-installed); operating time: up to 3 years
Wireless combined motion sensor with curtain function Ajax 101441.289.WH1 (white)
Product reference:
26-4823114061639
- Type: Wireless combined motion sensor with curtain function
- Color: White
- Detection range: Up to 12 m
- Vertical viewing angle: 85° / 15°
- Technology: Dual motion detection with human and animal discrimination
- Additional protection: Rain and snow cover, can be mounted on a third-party mount
- Communication range: Up to 1700 m with Ajax hub or repeater
- Functions: Informational push notifications, remote control and configuration via Ajax application
- Battery life: Up to 3 years
- Protection class: IP55
- Code: 101441.289.WH1
- Battery type: 2 x CR123A (pre-installed); operating time: up to 3 years
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General data
- Product name Ajax Curtain Outdoor Jeweller
- Type Wireless dual-technology curtain motion detector for outdoor and indoor use
- Detection technology Two PIR sensors + one microwave sensor, SmartDetect algorithm
- Detection distance Up to 8-12 m (26-39 ft) at 1.5-2.4 m installation height
- Detection angles Vertical: 85° (standard), Vertical: 15° (Pet immunity mode), Horizontal: 8°
- Detection speed From 0.3 to 2.0 m/s (1-6.6 ft/s)
- Resistance to signals caused by pets Ignores animals below 100 cm (3.3 ft) in height
- False alarm prevention PIR verification with microwave sensor, three sensitivity levels (adjustable in app), temperature compensation
- Communication technologies Jeweler Wings radio, encrypted, up to 1,700 m (5,550 ft) in open space
- Frequency bands 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz (region dependent)
- Protection against sabotage Anti-masking system (Grade 2), tamper alarm, accelerometer for dismantle detection, anti-spoofing, holding screw
- Power source 2 × CR123A batteries (pre-installed)
- Battery life Up to 3 years (calculated)
- Installation method SmartBracket or bundled hood (protects from rain/snow), angle mount option
- Working temperature -25 °C to +60 °C (-13 °F to +140 °F)
- Working humidity Up to 95%
- Protection class IP55
- Dimensions 141 × 60 × 72 mm (without angle mount), 141 × 76 × 84 mm (with angle mount)
- Weight 223 g (without angle mount), 257 g (with angle mount)
- Color White
- Certificates EN 50131 (Grade 2)
- Compatibility Ajax Hubs (Hub 2, Hub 2 Plus, Hub Hybrid), ReX 2 range extenders
- Complete set Curtain Outdoor Jeweler, SmartBracket, Hood, 2 × CR123A batteries (pre-installed), angle mount, installation kit, quick start guide
| Manufacturer | AJAX |
| Manufacturer code | AJCURTAINOUTDOORW |
| Weight | 0 kg |
