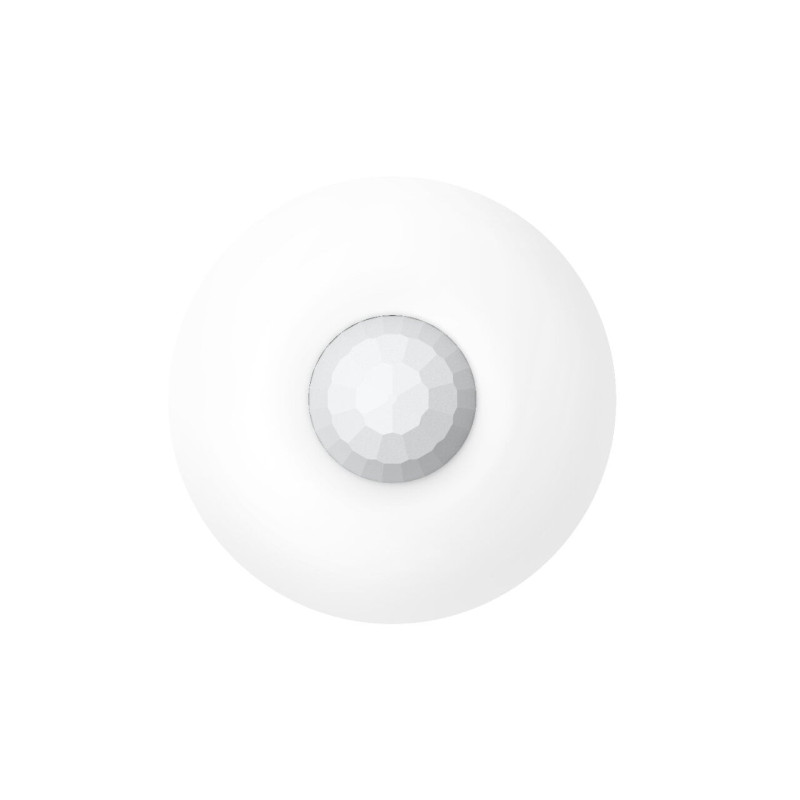

Wired PIR ceiling motion sensor Hik-vision Ellipse DS-PDCL12-EG2
Product reference:
26-6931847130114
- Capture range: 12m / 360°
- Digital quad pyro sensor
- Automatic sensitivity
- Wide voltage range and integrated EoL resistor
Wired PIR ceiling motion sensor Hik-vision Ellipse DS-PDCL12-EG2
Product reference:
26-6931847130114
- Capture range: 12m / 360°
- Digital quad pyro sensor
- Automatic sensitivity
- Wide voltage range and integrated EoL resistor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Not available
- Fixing
- Fixing method Passive Infrared
- Capture range 12m
- Locking angle 360°
- Capture zones 172
- Capture speed 0.3～2m/s
- Sensitivity Auto;Low
- White filter 6500lux
- Digital temperature compensation Support
- Protection against ground-crawling creatures Support
- Features
- Digital processing Support
- Closed optics Support
- Protection against counterfeiting Front
- Interface
- LED indicator Blue(Alarm)
- Hardware features
- Alarm output Normally Closed
- Electrical characteristics
- Energy consumption 13mA Max
- Electrical characteristics
- Power supply 9 to 16 VDC
- Rated voltage 12VDC
- Home
- Working conditions (temperature) -10 °C to 55 °C (14 °F to 131 °F)
- Storage conditions (temperature) -20 °C to 60 °C (-4 °F to 140 °F)
- Operating conditions (humidity) 10% to 90%
- Size φ101.2mm x 32.9mm
- 79g
- Mounting height 2.4 to 4m
- Installation method Ceiling
- Application Indoor
| Weight | 0.081 kg |
