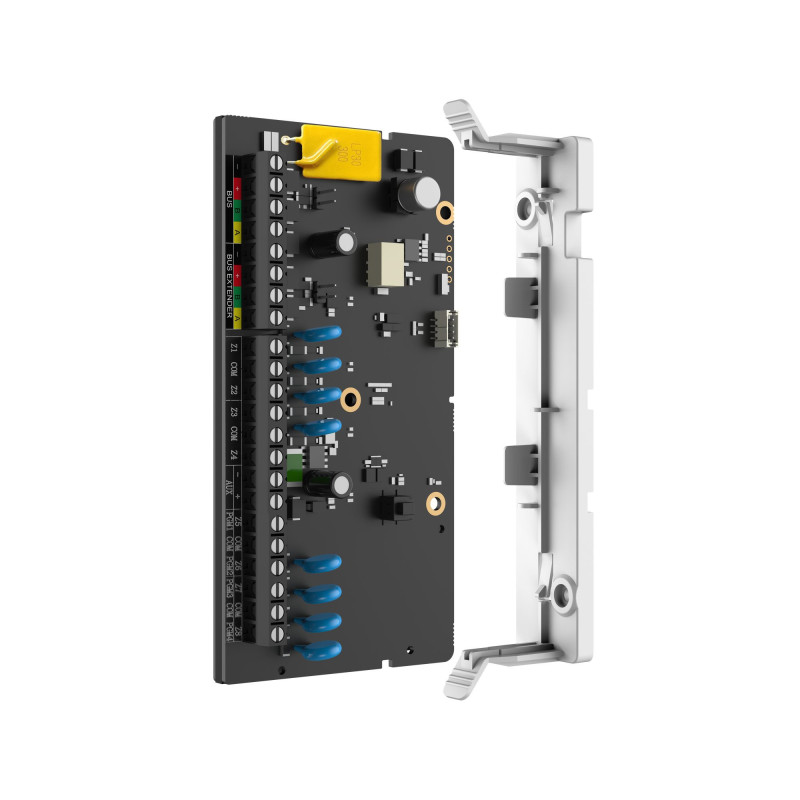

Wired input module Hikvision AX Hybrid Pro DS-PM1-I8O2-WE (8 zones, without housing)
Product reference:
26-6936422172497
- 8 zone inputs for intrusion detection
- 4 zones are configurable as PGM outputs
- 1 AUX power output for detectors
- Integrated bus extender for longer bus range
- Compatible with various third-party wired detectors
Wired input module Hikvision AX Hybrid Pro DS-PM1-I8O2-WE (8 zones, without housing)
Product reference:
26-6936422172497
- 8 zone inputs for intrusion detection
- 4 zones are configurable as PGM outputs
- 1 AUX power output for detectors
- Integrated bus extender for longer bus range
- Compatible with various third-party wired detectors
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Bus interconnection
- Bus extender Yes
- Trunk technology Half-Duplex RS-485
- Trunk cables 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
- Compliance
- EN 50131 Security Grade 2, Environmental Class II
- Electrical compliance CE, CB
- Environmental
- Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
- Relative humidity 10% ~ 90% non-condensing
- Storage temperature -20°C to 60°C (-4°F to 140°F)
- Inputs(Zones)
- Max. Zones 8
- On-board zones 8
- Outputs
- Max. number of outputs 4
- On-board PGM outputs 4 (Z5~Z8 programmable)
- PGM output
- Max. current 200 mA per output
- Output voltage 0 VDC with switched (NPN output)
- Physical
- Dimension (W × H × D) 110 × 155 × 31mm
- Installation method Wall mount
- Protection against counterfeiting Front and Rear
- Weight 225 g
- Power supply - auxiliary power output
- Output capacity 12VDC nominal (9~16 VDC), 500mA
- Output protection 500mA PPTC
- Power supply - general
- Input voltage 12 VDC nominal (9~16 VDC), powered by bus
- Max. current 150 mA @12VDC
- Standby current 80 mA @12VDC
| Manufacturer | AX PRO |
| Manufacturer code | DSPM501Z8T4UNIT |
| Weight | 0.075 kg |
