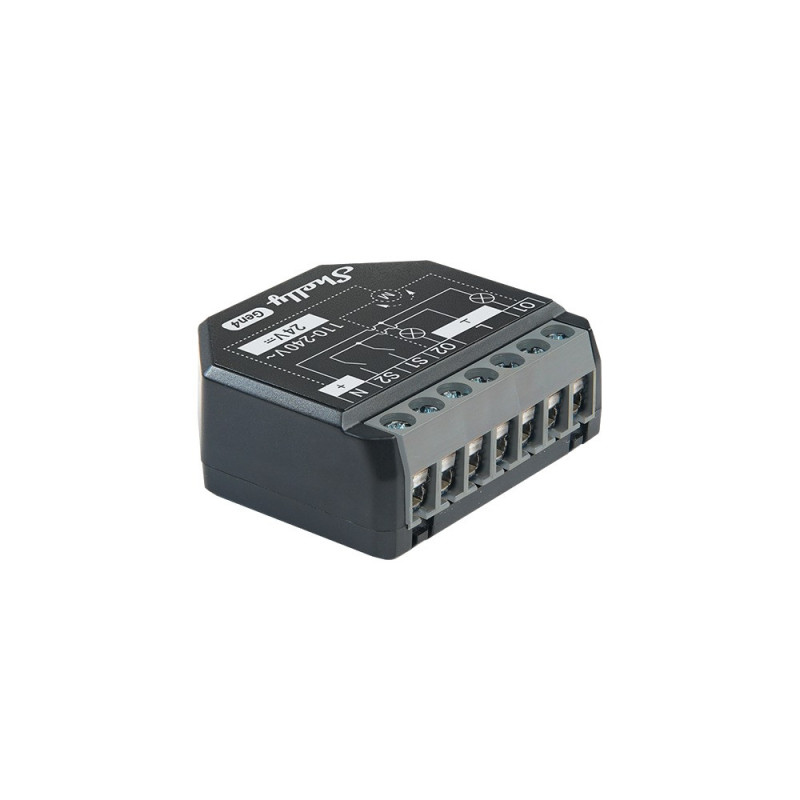

Wi-Fi relay with power measurement Shelly 2PM Gen4 (2 channels, 16A, BT, ZigBee, Matter)
Product reference: 26-3800238070748
  • Type: Relay
  • Brand: Shelly
  • Model: 2PM Gen4
  • Channels: 2
  • Current: 16 A
  • Power supply: 110-240 V AC, 24-30 V DC
  • Integrated energy measurement
  • Connectivity: Wi-Fi, Bluetooth, ZigBee, Matter
Wi-Fi relay with power measurement Shelly 2PM Gen4 (2 channels, 16A, BT, ZigBee, Matter)

Wi-Fi relay with power measurement Shelly 2PM Gen4 (2 channels, 16A, BT, ZigBee, Matter)

Product reference: 26-3800238070748
  • Type: Relay
  • Brand: Shelly
  • Model: 2PM Gen4
  • Channels: 2
  • Current: 16 A
  • Power supply: 110-240 V AC, 24-30 V DC
  • Integrated energy measurement
  • Connectivity: Wi-Fi, Bluetooth, ZigBee, Matter
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
28,45 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Physical
  • Size (Height × Width × Depth) 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch
  • Weight 30g / 1.06oz
  • Maximum torque of screw terminals 0.4 Nm / 3.5 lbin
  • Wire cross-sectional area 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
  • Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
  • Installation Wall box
  • Housing material Plastic
  • Body color Black
  • Terminal color Gray (Mouse Gray)
  • Environmental
  • Ambient operating temperature -20°C to 40°C / -5°F to 105°F
  • Humidity 30% to 70% RH
  • Maximum height 2000 m / 6562 ft
  • Electrical
  • Power supply 110 - 240 V~ / 24 VDC ±10%
  • Energy consumption < 1.4W
  • External protection Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
  • Output circuit ratings
  • Max. switching voltage 240V~ 30VDC
  • Max. switching current AC 10 A (per channel), 16 A (total), 18 A (total peak)
  • Max. switching current DC 10 A
  • Sensors, meters
  • Voltmeter (AC) Yes
  • Ammeter (AC) Yes
  • Internal temperature sensor Yes
  • Wi-Fi
  • Protocol 802.11 b/g/n/ax
  • RF band 2412 - 2472 MHz
  • Max. RF power < 20 dBm
  • Distance Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth
  • Protocol 5.0
  • RF band 2402 - 2480 MHz
  • Max. RF power < 4 dBm
  • Distance Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • Zigbee
  • Protocol 802.15.4
  • RF bands 2400 to 2483.5 MHz
  • Max. RF power < 20 dBm
  • Distance Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
  • Microcontroller unit
  • CPU ESP-Shelly-C68F
  • Flash (memory) 8MB
  • Firmware capabilities
  • Schedules/timetables 20
  • Webhooks (URL actions) 20 with 5 URLs per hook
  • Scripting Yes
  • MQTT Yes

ManufacturerShelly
Manufacturer codeSHELLY2PMGEN4
Weight0.033 kg
