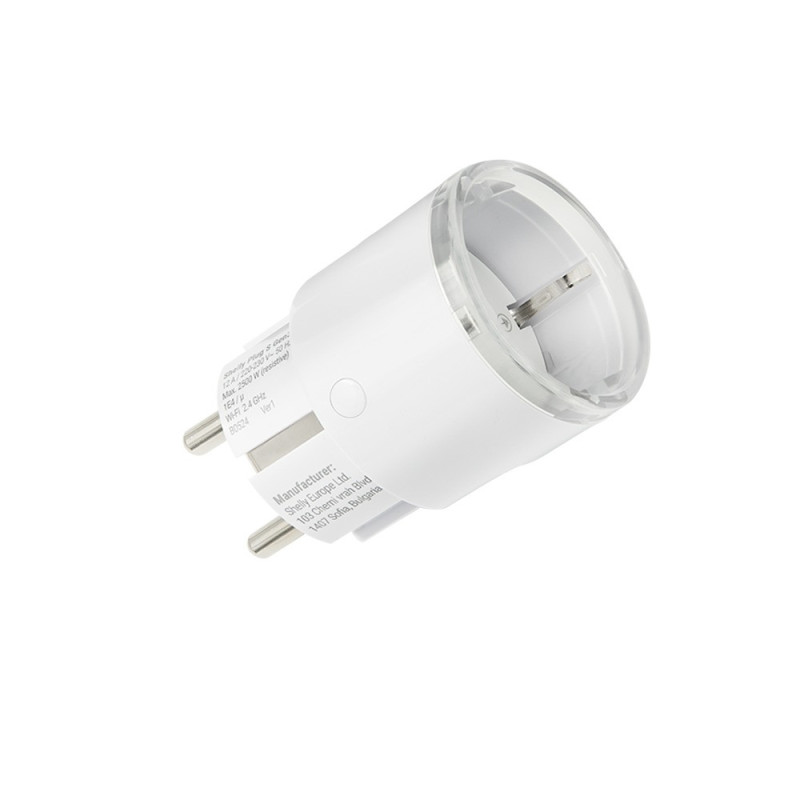

Wi-Fi, Matter controlled relay Shelly Plug S Gen3 (12 A, 220V)
Product reference: 26-3800235261842
  • Type: Smart relay
  • Brand: Shelly
  • Model: Shelly Plug S Gen3
  • Device code: S3PL-00112EU
  • Connectivity: Wi-Fi, Matter
  • Current: 12 A
  • Voltage: 220 - 230 V~ 50/60 Hz
Wi-Fi, Matter controlled relay Shelly Plug S Gen3 (12 A, 220V)

Wi-Fi, Matter controlled relay Shelly Plug S Gen3 (12 A, 220V)

Product reference: 26-3800235261842
  • Type: Smart relay
  • Brand: Shelly
  • Model: Shelly Plug S Gen3
  • Device code: S3PL-00112EU
  • Connectivity: Wi-Fi, Matter
  • Current: 12 A
  • Voltage: 220 - 230 V~ 50/60 Hz
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
21,76 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Physical
  • Size (Height × Width × Depth) 44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in
  • Weight 60 ±1g / 2.08 ±0.04oz
  • Compatible sockets CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)
  • Compatible plugs CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17
  • Housing material Plastic
  • Color White Black
  • Environmental
  • Ambient temperature -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity 30% to 70% RH
  • Maximum height 2000 m / 6562 ft
  • Glow-wire temperature 750°C
  • Degree of contamination 2
  • Forced cooling required No
  • Electrical
  • Power source 220 - 230 V~ 50/60 Hz
  • Energy consumption < 1W
  • Rated impulse-withstand voltage 2500V
  • Output circuit ratings
  • Max. switching voltage 230 V~
  • Max. switching current 12 A
  • Maximum output power 2500 W (resistive load only)
  • Number of on/off cycles 10000
  • Overvoltage category II
  • Duty type S1
  • Switch type One-way
  • Switch configuration SPNO (single-pole, normally-open)
  • Type of circuit disconnection Micro
  • Sensors, meters
  • Internal temperature sensor Yes
  • Voltmeter (AC) Yes
  • Ammeter (AC) Yes
  • Power and energy meters Yes
  • Wi-Fi
  • Protocol 802.11 b/g/n
  • RF band 2401-2473 MHz
  • Max. RF power lt;10 dBm
  • Bluetooth
  • Protocol 4.2
  • RF band 2402 - 2480 MHz
  • Max. RF power:
  • Distance Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
  • Microcontroller unit
  • CPU ESP-Shelly-C38F
  • Flash (memory) 8MB
  • Firmware capabilities
  • Webhooks (URL actions) 20 with 5 URLs per hook
  • Scripting Yes
  • MQTT Yes
  • CoAP No

ManufacturerShelly
Manufacturer codeSHELLYPLUGSMRTGEN3WH
Weight0.058 kg
