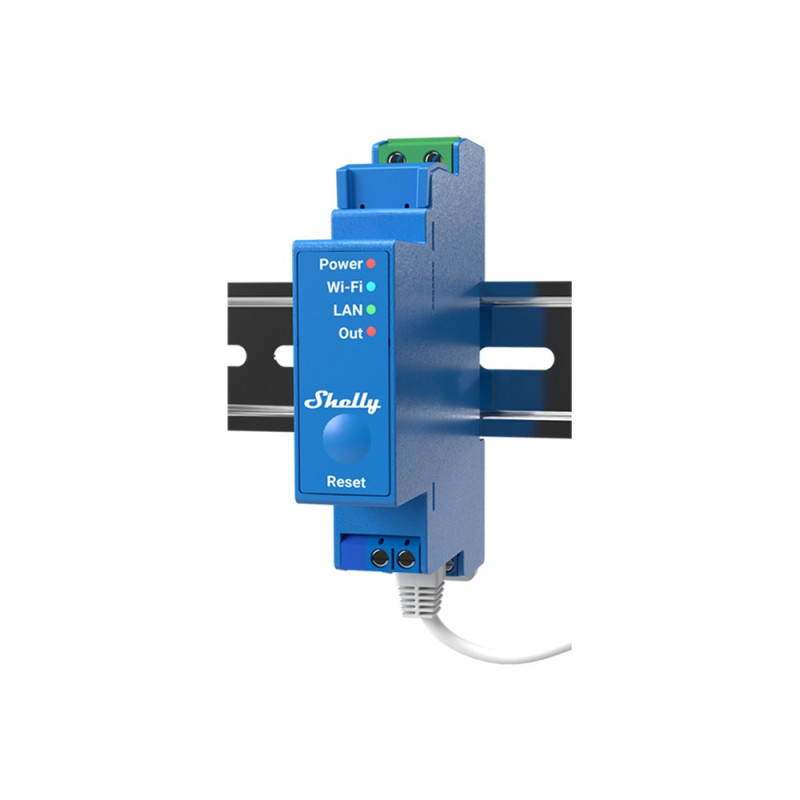

Wi-Fi, Bluetooth controlled smart relay Shelly Pro 1

Product reference: 26-3800235268001

Wi-Fi, Bluetooth controlled smart relay Shelly Pro 1

Product reference: 26-3800235268001

You have 3 products in compare list, please remove someone and try again

Add to compare

54,84 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

General characteristics
Size (Height × Width × Depth) 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight 63g / 2.22oz
Installation DIN rail
Maximum torque of screw terminals 0.4 Nm / 3.54 lbin
Wire cross-sectional area 0.5 to 2.5 mm² / 20 to 14 AWG (green connector), 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in (green connector), 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Housing material Plastic
Color Blue
Ambient temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30% to 70% RH
Maximum height 2000 m / 6562 ft
Power supply voltage AC 110 - 240V
Power supply voltage DC N/A
Energy consumption < 3W
Neutral not needed No
Max switching voltage AC 240V
Max switching voltage DC N/A
Max switching current AC 16 A
Max switching current DC N/A
Internal temperature sensor Yes
RF band 2400 - 2495 MHz
Max RF power < 20 dBm
Wi-Fi protocol 802.11 b/g/n
Wi-Fi range Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depends on local conditions)
Bluetooth protocol 4.2
Bluetooth operating range Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions)
Processor ESP32-D0WDQ6
Flash (memory) 8MB
Schedules/timetables 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
CoAP No
