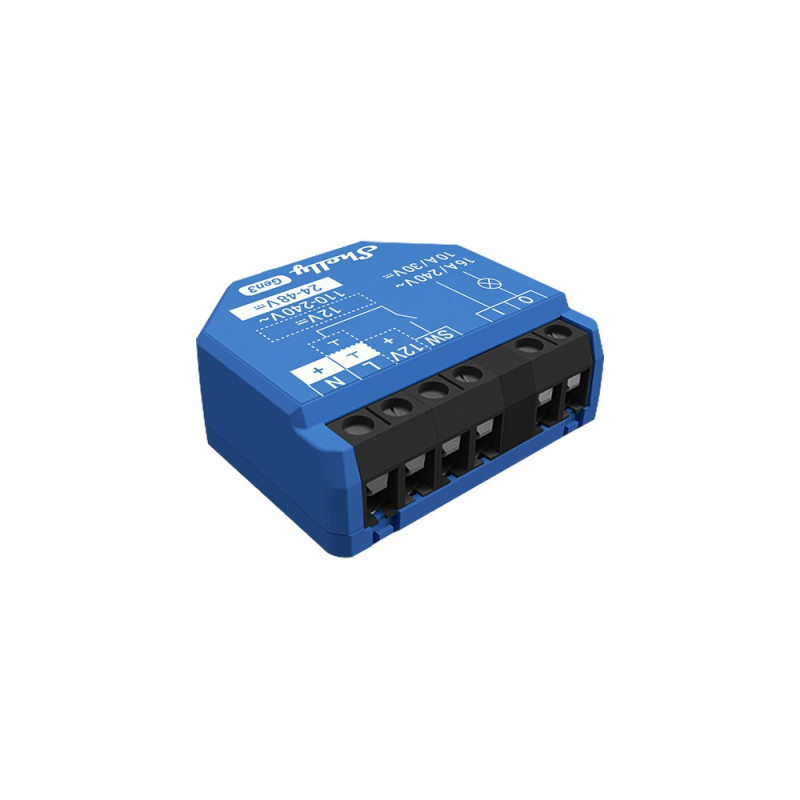

Wi-Fi, Bluetooth controlled relay with dry contacts Shelly 1 Gen3 (16 A, 110-240VAC)
Product reference: 26-3800235261767
  • Type: Smart relay with dry contacts
  • Brand: Shelly
  • Model: Shelly 1 Gen3
  • Device code: S3SW-001X16EU
  • Connectivity: Wi-Fi, Bluetooth
  • Current: 16 A/240 V~ 10 A/30 VDC
  • Voltage: 110-240 V~ 24-48 VDC 12 VDC
Wi-Fi, Bluetooth controlled relay with dry contacts Shelly 1 Gen3 (16 A, 110-240VAC)

Wi-Fi, Bluetooth controlled relay with dry contacts Shelly 1 Gen3 (16 A, 110-240VAC)

Product reference: 26-3800235261767
  • Type: Smart relay with dry contacts
  • Brand: Shelly
  • Model: Shelly 1 Gen3
  • Device code: S3SW-001X16EU
  • Connectivity: Wi-Fi, Bluetooth
  • Current: 16 A/240 V~ 10 A/30 VDC
  • Voltage: 110-240 V~ 24-48 VDC 12 VDC
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
21,57 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Physical
  • Size (Height × Width × Depth) 37x42x16 / 1.46x1.65x0.63
  • Weight 26g / 0.92oz
  • Maximum torque of screw terminals 0.4 Nm / 3.5 lbin
  • Wire cross-sectional area 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
  • Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
  • Installation Wall console
  • Housing material Plastic
  • Body color Blue
  • Terminal Color Black
  • Environmental
  • Ambient operating temperature -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity 30% to 70% RH
  • Maximum height 2000 m / 6562 ft
  • Electrical
  • Power source 110-240V~ 24-48VDC 12VDC
  • Energy consumption < 1.2W
  • External protection Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
  • Output circuit ratings
  • Max. switching voltage 240V~ 30VDC
  • Max. switching current 16 A/240 V~ 10 A/30 VDC
  • Sensors, meters
  • Internal temperature sensor Yes
  • Wi-Fi
  • Protocol 802.11 b/g/n
  • RF band 2401 - 2483 MHz
  • Max. RF power < 20 dBm
  • Distance Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth
  • Protocol 4.2 with BLE
  • RF band 2400 - 2483.5 MHz
  • Max. RF power < 4 dBm
  • Distance Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • Microcontroller unit
  • CPU ESP-Shelly-C38F
  • Flash (memory) 8MB
  • Firmware capabilities
  • Schedules/timetables 20
  • Webhooks (URL actions) 20 with 5 URLs per hook
  • Scripting Yes
  • MQTT Yes

ManufacturerShelly
Manufacturer codeSHELLY1GEN3
Weight0.027 kg
