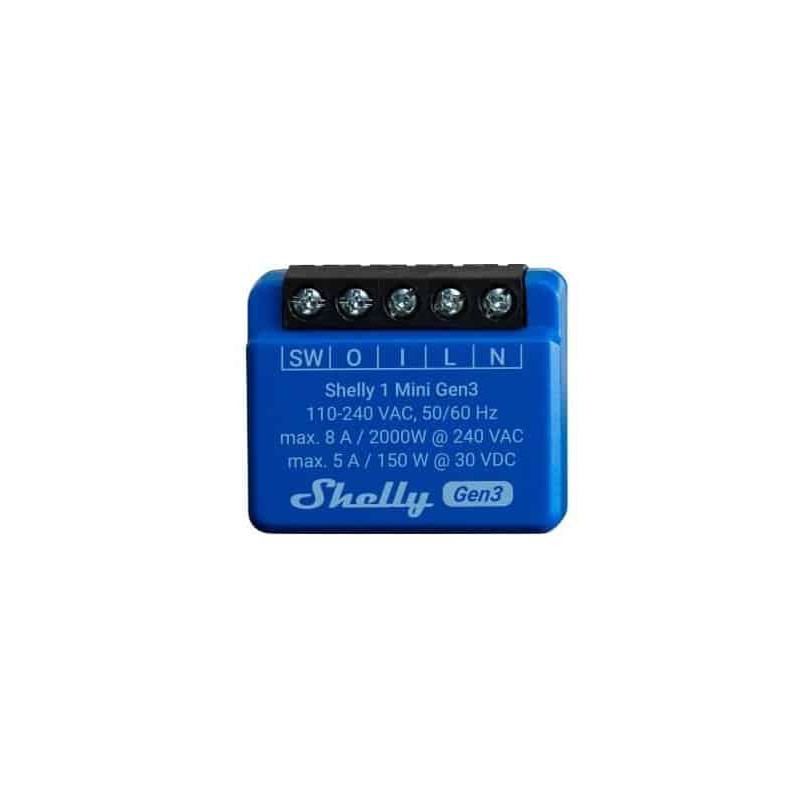

Wi-Fi, Bluetooth controlled relay Shelly Mini 1 Gen3 (8A, 110-240 VAC, 5A 30 VDC)
Product reference:
26-3800235261576
- Wi-Fi controlled smart relay
- Model: Shelly 1 Mini Gen3
- Connectivity: Wi-Fi and Bluetooth
- Current: 8A (110-240 VAC), 5A (30 VDC)
- Power supply: 110-240 VAC or 30 VDC
Wi-Fi, Bluetooth controlled relay Shelly Mini 1 Gen3 (8A, 110-240 VAC, 5A 30 VDC)
Product reference:
26-3800235261576
- Wi-Fi controlled smart relay
- Model: Shelly 1 Mini Gen3
- Connectivity: Wi-Fi and Bluetooth
- Current: 8A (110-240 VAC), 5A (30 VDC)
- Power supply: 110-240 VAC or 30 VDC
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Size (H x W x D) 29x35x16 ±0.5 mm
- Weight 19 ±1g
- Installation Wall box
- Torque for terminals 0.4 Nm
- Wire cross-section 0.2 to 2.5 mm² / 24 to 14 AWG
- Stripped length of wire 6 to 7 mm
- Housing Plastic
- Color Blue
- Temperature -20 to +40 °C
- Humidity 30 to 70% RH
- Max height 2000
- Power supply 110 - 240 VAC
- Energy consumption < 1.2W
- RF band 2400 - 2495 MHz
- Max. RF power lt;20 dBm
- Wi-Fi protocol 802.11 b/g/n
- Wi-Fi range Up to 30m indoors and 50m outdoors
| Manufacturer | Shelly |
| Manufacturer code | SHELLYMINI1GEN3 |
| Weight | 0.018 kg |
