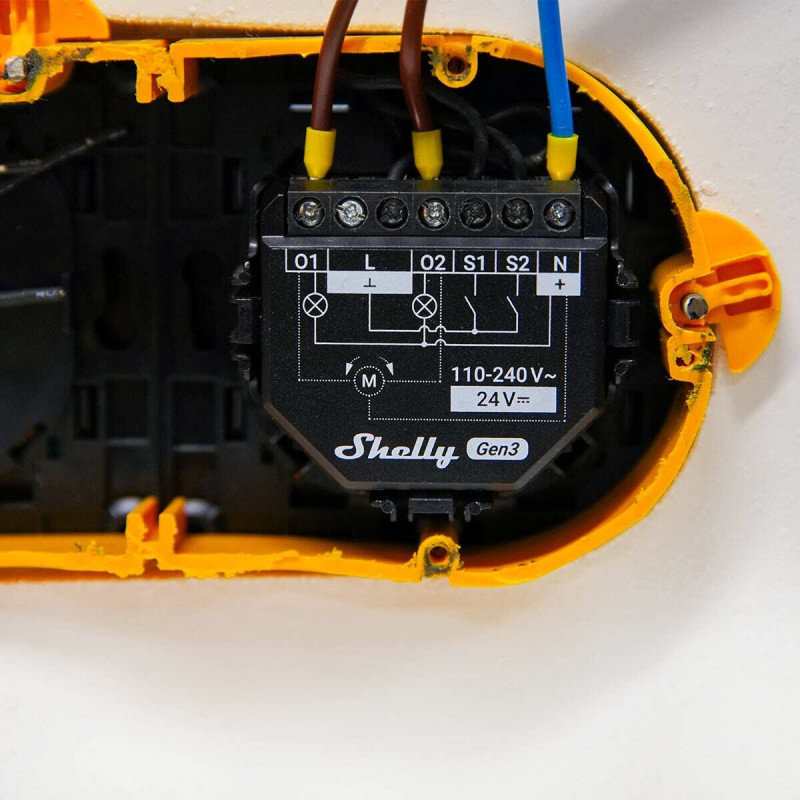

Wi-Fi, Bluetooth controlled relay Shelly 2PM Gen3 (16A, 110-240VAC)

Product reference: 26-3800235261903

You have 3 products in compare list, please remove someone and try again

Add to compare

32,05 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

General characteristics
Size (Height × Width × Depth) 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight 30g / 1.06oz
Maximum torque of screw terminals 0.4 Nm / 3.5 lbin
Wire cross-sectional area 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
Installation Wall box
Housing material Plastic
Body color Black
Terminal color Black
Ambient operating temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max height 2000 m / 6562 ft
Power source 110 - 240V~ / 24V⎓ ±10%
Energy consumption < 1.4W
External protection Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Max. switching voltage 240V~ / 30V⎓
Max. switching current AC 10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC 10 A
Voltmeter (AC) Yes
Ammeter (AC) Yes
Internal temperature sensor Yes
Wi-Fi protocol 802.11 b/g/n
Wi-Fi RF band 2412 - 2472 MHz
Wi-Fi Max RF power < 20 dBm
Wi-Fi range Up to 30 m / 100 ft indoors, 50 m / 160 ft outdoors
Bluetooth protocol 4.2
Bluetooth RF band 2402 - 2480 MHz
Bluetooth maximum RF power < 4 dBm
Bluetooth operating range Up to 10 m / 33 ft indoors, 30 m / 100 ft outdoors
Processor ESP-Shelly-C38F
Flash (memory) 8MB
Schedules/timetables 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
