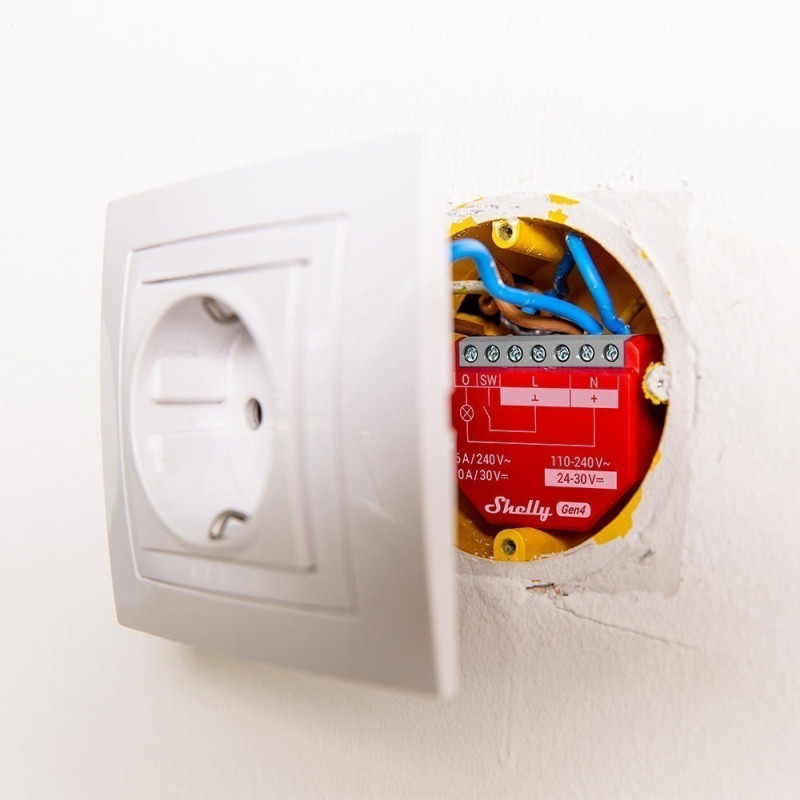

Wi-Fi, Bluetooth controlled relay Shelly 1PM Gen4 (16A, 110-240VAC)

Product reference: 26-3800238070717

You have 3 products in compare list, please remove someone and try again

Add to compare

22,15 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

Physical
Size (Height × Width × Depth) 37x42x16 mm / 1.46x1.65x0.63 inch
Weight 27g / 0.95oz
Maximum torque of screw terminals 0.4 Nm / 3.5 lbin
Wire cross-sectional area 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
Installation Wall console
Housing material Plastic
Body color Red
Terminal color Gray (Mouse Gray)

Electrical
Power source 110-240V~ 24-30VDC
Energy consumption < 1W
Neutral not needed No
External protection Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Wi-Fi
Protocol 802.11 b/g/n/ax
RF band 2412 - 2472 MHz
Max. RF power < 20 dBm
Distance Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth
Protocol 5.0
RF band 2402 - 2480 MHz
Max. RF power < 4 dBm
Distance Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Zigbee
Protocol 802.15.4
Zigbee repeater Yes
RF bands 2400 to 2483.5 MHz
Max. RF power < 20 dBm
Distance Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
