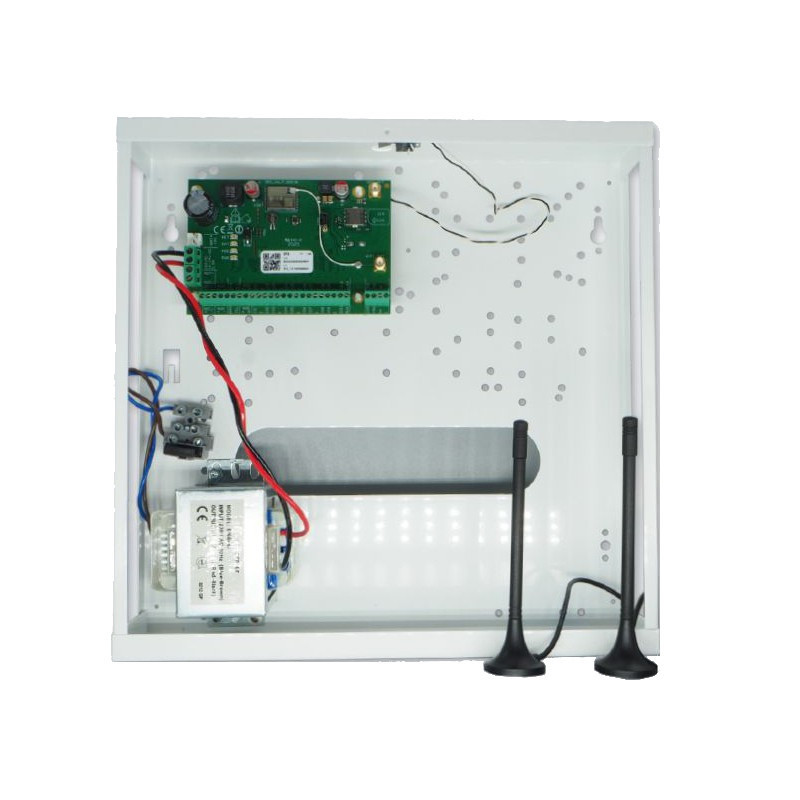

Trikdis FLEXi SP3 4G / WIFI security control panel with housing and transformer
Product reference: 26-RGSMFLEXISP3KIT4GWIFI
  • Up to 32 zones
  • 8 areas
  • Up to 16 controllable outputs
  • WiFi
  • 4G
  • GSM/GPRS
  • NanoSIM
  • Housing with transformer and antennas
Trikdis FLEXi SP3 4G / WIFI security control panel with housing and transformer

Trikdis FLEXi SP3 4G / WIFI security control panel with housing and transformer

Product reference: 26-RGSMFLEXISP3KIT4GWIFI
  • Up to 32 zones
  • 8 areas
  • Up to 16 controllable outputs
  • WiFi
  • 4G
  • GSM/GPRS
  • NanoSIM
  • Housing with transformer and antennas
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
216,09 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Supply voltage [AC / DC] 16 V DC or 16-24 V, 2.5 A AC
  • Current Up to 50 mA (stand-by), Up to 200 mA (short-term, while sending)
  • Backup power supply [BAT] 12 V lead-acid battery, 4 Ah/7 Ah
  • Battery charging current Up to 500 mA
  • Auxiliary device voltage and current [AUX] 12 V DC, up to 1 A
  • Siren output [BELL] 1 A
  • Output [LED] 0.1A
  • PGM output 0.1A
  • WiFi module Yes, built-in
  • WiFi frequency, protocol, encryption type 2.4 GHz, 802.11 b/g/n, WPA, WPA2, WPA mixed
  • WiFi network configuration type DHCP or manual SIM card 1, NANO size
  • GSM/GPRS modem frequencies 850 / 900 / 1800 / 1900 MHz
  • 4G modem frequencies 800 / 850 / 900 / 1900 / 2100 MHz
  • Direction of reporting To main and backup receivers of 2 different security companies; - To Protegus cloud, to iOS/Android Protegus mobile apps; - To 8 mobile phones via SMS messages. Calls 8 mobile phones. If a user answers the call, announces what happened using voice.
  • Event response transmission channels GPRS or 4G, WiFi, LAN (with module E485), SMS, Voice call, VHF/UHF radio waves (with transmitter T16)
  • Protocols for connecting to CMS TCP / IP or UDP / IP, or SMS
  • Event coding Contact ID codes
  • Report coding TRK AES 128, SIA IP AES 128
  • Internal clock Yes
  • Memory 60 events
  • Event memory Up to 1000 events. Oldest entries deleted automatically.
  • User codes 40
  • Danger codes Two code entry methods can be chosen during programming
  • Terminals [I/O] 10
  • Number of partitions 8
  • Number of zones 10 (20 zones if using ATZ), (can be expanded to 32 zones using expanders)
  • Number of PGM outputs 2 (can be 12 if IO terminals are set as outputs. Can be expanded to 16 outputs with expanders)
  • Max. connected keyboards 8
  • Supported keyboards Protegus SK232 LED B/W, Paradox K636, Paradox K10H(V), Paradox K32 LED, Paradox K32+ LED, Paradox K35, Crow CR16, Crow CR-LCD
  • Max. connect RFID (Wiegand 26/34) 2
  • 1-Wire data bus length [1 WIRE] Up to 30 m
  • Compatible temperature sensors Maxim®/Dallas® DS18S20, DS18B20; AM2301 series
  • Max. connected temperature sensors to the 1-Wire data bus 8 (Dallas) or 1 (if an AM2301 series sensor is used)
  • Compatible electronic equipment (iButton) keys [1 WIRE] Maxim®/Dallas® DS1990A
  • Max. connected electronic (iButton) buttons 40
  • RS485 data bus length Up to 100 m
  • Max. number of devices connected to the RS485 data bus 8
  • Working conditions Temperature from -10 °C to +50 °C, relative humidity 80% at +20°C, no condensation.
  • Control panel dimensions 117x79x25 mm
  • Weight 0.1 kg

ManufacturerTrikdis
Manufacturer codeRGSMFLEXISP3KIT4GWIFI
Weight0.25 kg
