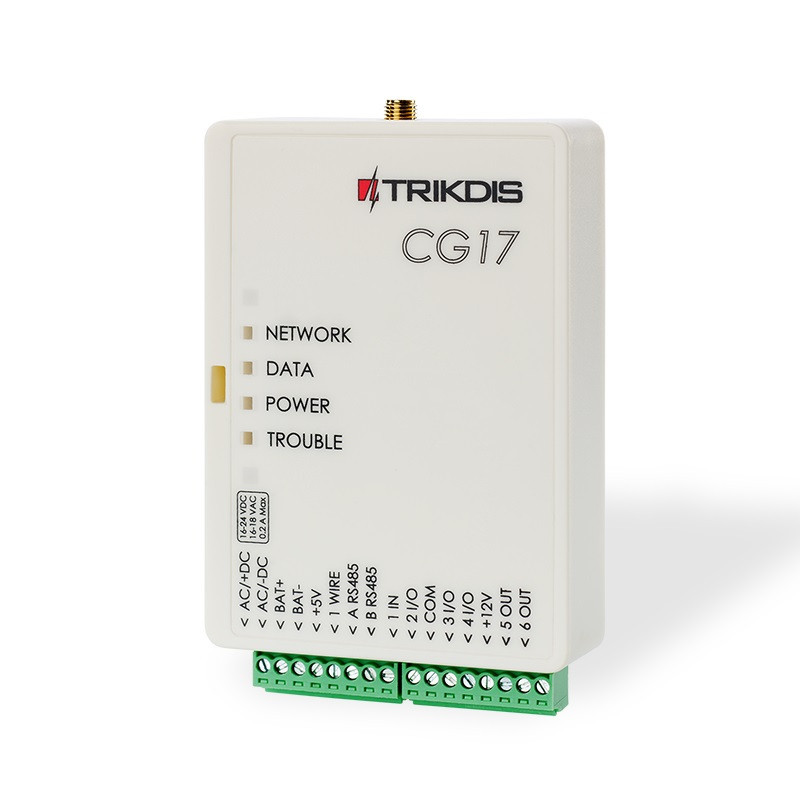

Trikdis controller control panel / controller CG17 with 4G modem
Product reference: 26-RGSMCG174G
  • 4G
  • 4 entrances
  • 5 outputs
  • Can remotely control various equipment
  • Notifies the user about events
  • Can send event notifications to the security service receiver.


Trikdis controller control panel / controller CG17 with 4G modem

Trikdis controller control panel / controller CG17 with 4G modem

Product reference: 26-RGSMCG174G
  • 4G
  • 4 entrances
  • 5 outputs
  • Can remotely control various equipment
  • Notifies the user about events
  • Can send event notifications to the security service receiver.


You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
156,37 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Parameters Description
  • GSM modem frequencies 850 / 900 / 1800 / 1900 MHz
  • 3G modem frequencies 800 / 850 / 900 / 1900 / 2100 MHz
  • Supply voltage DC 16-24 V or AC 16-18 V
  • Current usage 50 mA (standby mode),Up to 200 mA (transmit mode)
  • Contact with CSP Encrypted TCP/IP or UDP/IP, SMS
  • Battery charging current Max. 500 mA
  • Event encryption, key TRK / 6 character key
  • Memory Up to 60 messages
  • Inputs (max. internal) Up to 4 selectable inputs: NC, NO, EOL (10kΩ)
  • Outputs (max. internal) Up to 5 x OC type outputs, (1 OUT, 2 OUT, 3 OUT - 100 mA; 4 OUT, 5 OUT - 1 A)
  • Event transmission Contact ID codes
  • Working environment From -10 °C to 50 °C, relative humidity 80% at +20 °C
  • Measurements 95x65x25 mm
  • Weight 0.10 kg

    • ManufacturerTrikdis
    Manufacturer codeRGSMCG174G
    Weight0.1 kg
