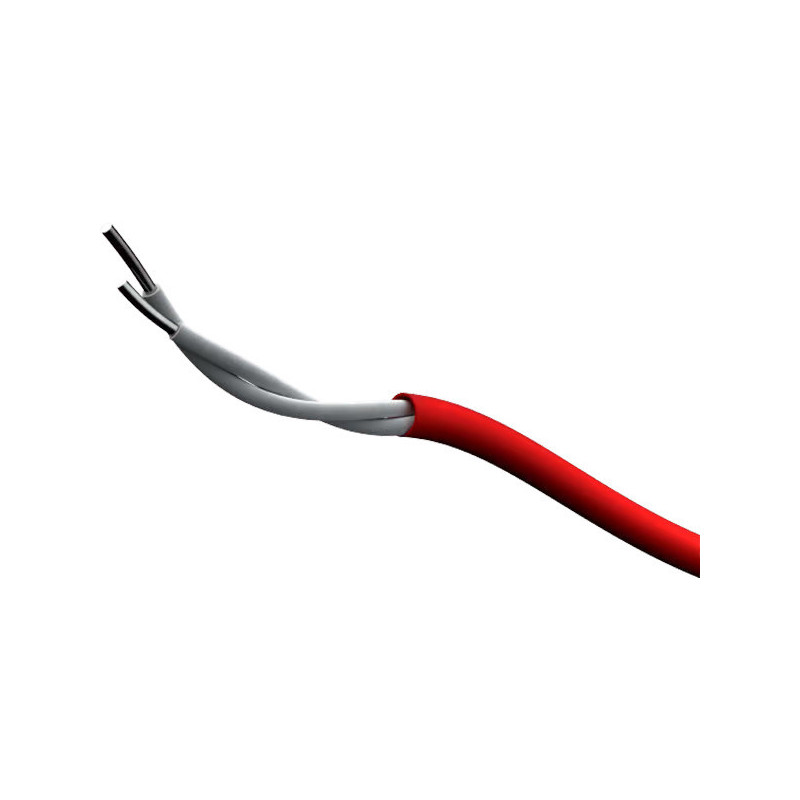

Linear heat detector FT-68-EN 68°C LSZH EN54 500m red
Product reference: 26-DTFT68EN
  • Signaline fixed temperature heat sensitive cable ( Signaline FT) detects heat accumulations occurring at any point it monitors
  • When any point on the cable reaches a certain, pre-set temperature, an alarm is initiated.
  • −25%
Linear heat detector FT-68-EN 68°C LSZH EN54 500m red

Linear heat detector FT-68-EN 68°C LSZH EN54 500m red

Product reference: 26-DTFT68EN
  • Signaline fixed temperature heat sensitive cable ( Signaline FT) detects heat accumulations occurring at any point it monitors
  • When any point on the cable reaches a certain, pre-set temperature, an alarm is initiated.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5,37 €
7,16 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Home
  • Model Signaline FT-68
  • Alarm trigger temperature 68°C ( 155°F )
  • Maximum ambient temperature. 45°C ( 113°F )
  • Conductor resistance 0.1Ω/M or 0.029Ω/FT @ 20°C
  • Maximum voltage 42Vdc or 30Vac
  • Dielectric strength (UL) 500Vdc
  • Tensile strength 1700 N/mm²
  • Minimum bending radius 75mm
  • Overall diameter 3.5mm
  • Weight 13kg/500M
  • Outer shell material PVC
  • Color Red
  • Approvals FM, UL, cUL, KFI

ManufacturerSignaline
Manufacturer codeDTFT68EN
Weight0.032 kg
