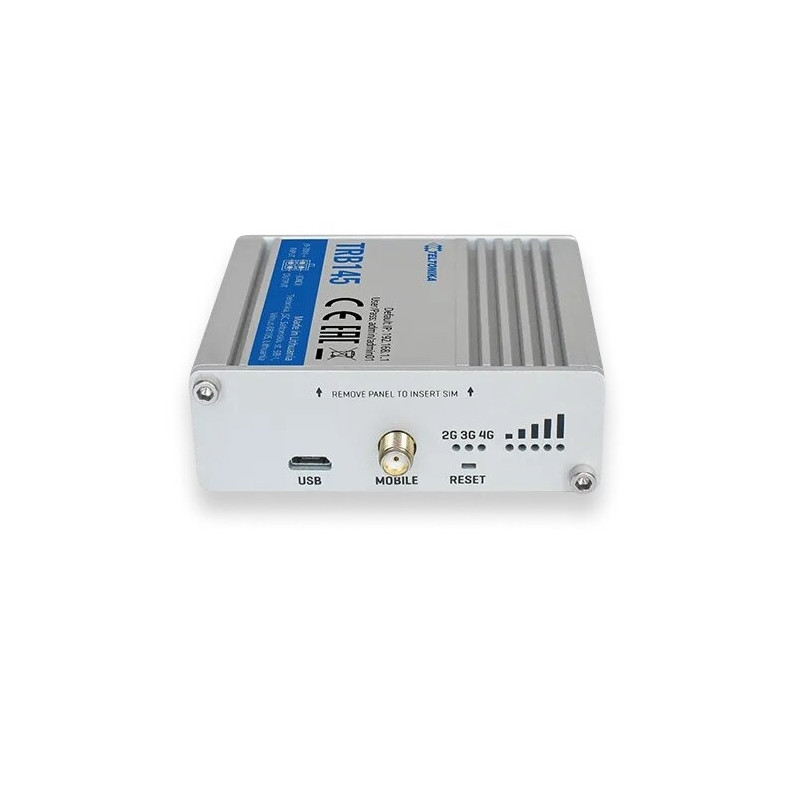

TELTONIKA industrial network interface LTE TRB145 - 4GLTE
Product reference:
26-LTETRB145
- Connection: 4G/LTE (Cat 4), 3G, 2G
- Aluminum body
- Voltage range: 9-30V
TELTONIKA industrial network interface LTE TRB145 - 4GLTE
Product reference:
26-LTETRB145
- Connection: 4G/LTE (Cat 4), 3G, 2G
- Aluminum body
- Voltage range: 9-30V
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
| Mobile connection | |
| Mobile module | 4G (LTE) - Cat 1 up to 10 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| SMS/calls | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| White/black lists | Operator black/white list |
| Lane management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Throughput | Gateway assigns its mobile WAN IP address to another device on LAN |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Network | |
| Transmission | Static routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT |
| Connection management | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| QoS/SQM (planned) | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supported > 25 service providers, others can be configured manually |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| Power | |
| Connection | 4 pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection > 33 VDC 10us max |
| Power consumption | < 5W |
| Physical interfaces | |
| RS485 | 1 x 6 pin terminal block for 2-wire or 4 wire interface |
| I/Os | 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB145*2****) |
| USB | 1 x Virtual network interface via micro USB |
| LED status indicators | 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V |
| Power | 4 pin power connector with 2 x configurable Digital Inputs/Outputs (I/O not available in TRB145*2****) |
| Antenna | 1 x SMA for LTE |
| Restarting | Reboot/User default reset/Factory reset button |
| Physical specification | |
| Housing material | Aluminum housing |
| Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
| Weight | 130 g |
| Installation conditions | Bottom and sides DIN rail, Flat surface |
| Environmental influence | |
| Operating temperature | -40°C to 75°C |
| Moisture resistance during operation | 10% to 90% non-condensing |
| Protection | IP30 |
| Security | |
| Standards | IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
| Manufacturer | Teltonika Networks |
| Manufacturer code | LTETRB145 |
| Weight | 0.000000 kg |
