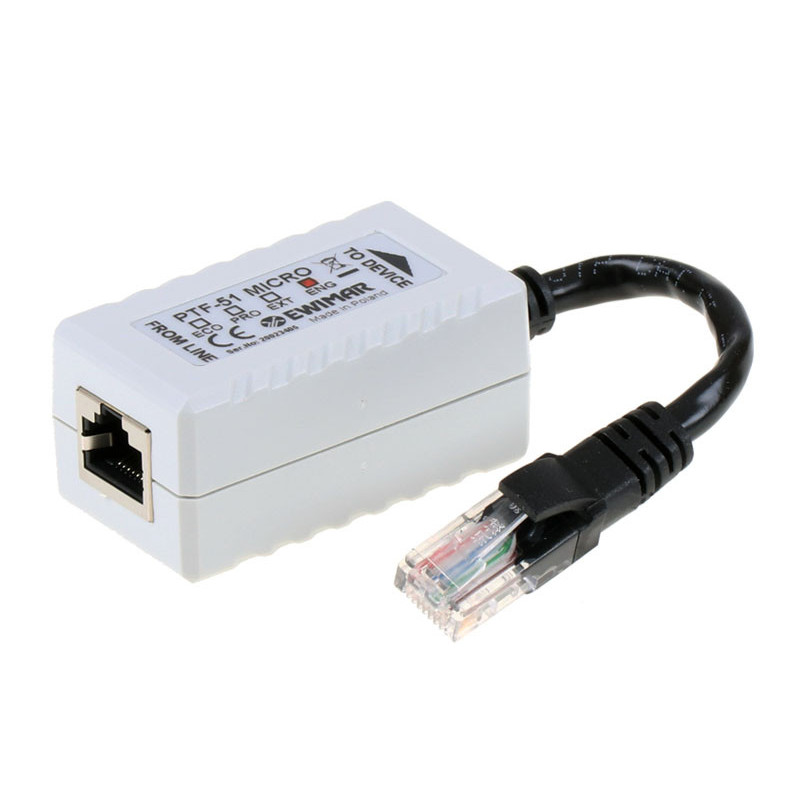

Surge protector for LAN line PTF-51-ENG / PoE / MICRO
Product reference:
26-TVVPPTF51ENGPOEMICRO
- 1kV- 8V (with Mosfet reaction)
- IP54
Surge protector for LAN line PTF-51-ENG / PoE / MICRO
Product reference:
26-TVVPPTF51ENGPOEMICRO
- 1kV- 8V (with Mosfet reaction)
- IP54
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
| Information lines | |
|---|---|
| Supported channels | 1 |
| Compatibility with the network | 10Base-T, 100Base-T, twisted pair 5, 5e, and 6th categories |
| Input connection (unprotected side) | Jack RJ-45 |
| Output connection (on the protected side) | Cable with RJ-45 plug |
| Voltage DC (line-to-line) UN | 3,3V DC |
| Maximum voltage (line-to-line) UC | 3,5V DC |
| Security level 1kV/μs (line-line) UP | 8V (with MOSFET reaction) |
| Discharge current C1 (8/20µS, line-line ) Iimp | 600A |
| Protected lines | 1-2, 3-6 |
| Capacity (line-line) @1MHz | 6-15pF |
| Serial protection | 6Ω / line |
| Current input | 300mA / line |
| PoE protection | |
| Voltage DC (line-line) UN | 58V DC |
| Maximum voltage (line-line) UC | 64V DC |
| Protection level | 93V |
| Discharge current (8/20µS, line-line) Iimp | 600A |
| Protected pairs | (1+2)-(3+6), (4+5)-(7+8) |
| Protected PoE standards | IEEE 802.3af/at/bt-type 3 (HiPoE, UPOE) |
| Simple functions | |
| Dimensions | 56 x 31 x 27.5 (mm) - housing only |
| Place of operation | Inside |
| Installation | Standalone |
| Housing protection | IP54 |
| Operating temperature | -30ºC~60ºC |
| Manufacturer | Kita |
| Manufacturer code | TVVPPTF51ENGPOEMICRO |
| Weight | 0.036 kg |
