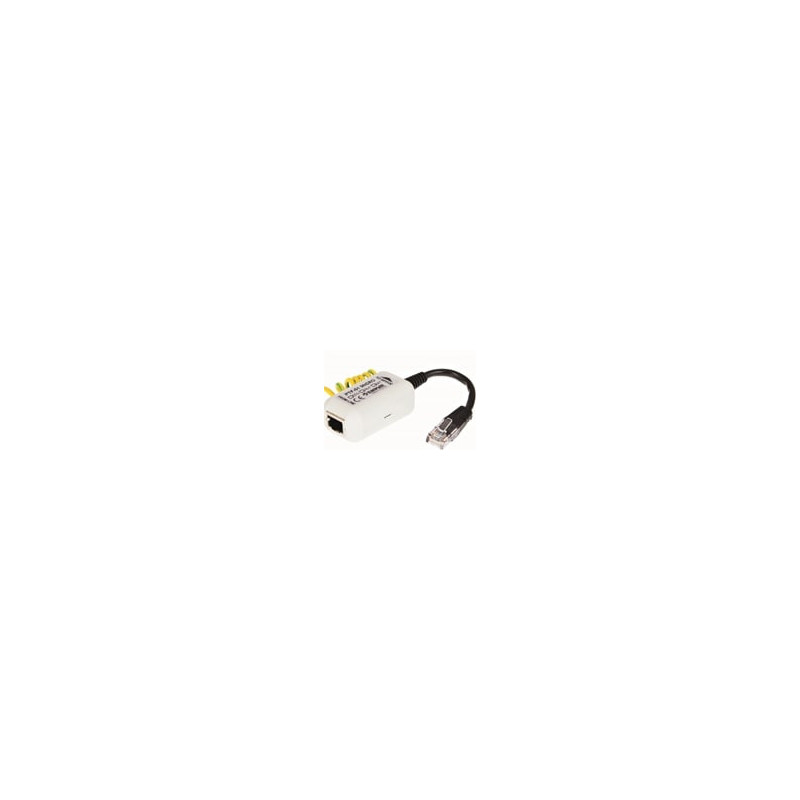

Surge arrester for LAN network PTF-51-ECO / PoE / Micro

Product reference: 26-TVVPPTF51ECO/POE/MICRO

You have 3 products in compare list, please remove someone and try again

Add to compare

22,46 €

Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

Data protection
Supported channels	1
Network compatibility	100Base-T (100Mbit), twisted pair 5, 5e, and 6 categories
Input connector (line side)	Jack RJ-45
Output connector (device side)	Short cable with RJ-45 plug
Voltage DC (line-ground) UN	175V DC
Maximum voltage (line-ground) UC	225V DC
Protection level 1kV/μs (line-ground) UP	455V
Surge current C1 (8/20µS, line-ground ) Iimp	100A
Voltage DC (line-line) UN	6V DC
Maximum voltage (line-line) UC	6,8V DC
Security level 1kV/μs (line-line) UP C3	20V
Surge current C1 (8/20µS, line-line ) Iimp	100A
Protected lines	1-2, 3-6
Capacity (line-line) @1MHz	6-15pF
Capacity (line-ground) @1MHz	2-3pF
Unlinking	Surge resistor
Series resistance	2,2Ω / line
Rated current IN	300mA / line
PoE protection
Voltage DC (line-line) UN	56V DC
Maximum voltage (line-line) UC	64V DC
Security level UP C3	93V
Surge current (8/20µS, line-line) Iimp C3	73A
Protected pairs	(1+2)-(3+6), (4+5)-(7+8)
Protected PoE standards	IEEE 802.3af/at - all types
Features
Measurements	51 x 31 x 24 (mm) - without cable
Adaptation	Insite / outside in additional IP66 housing
Installation	Standalone
IP protection class	IP54
Operating temperature	-30ºC~60ºC
