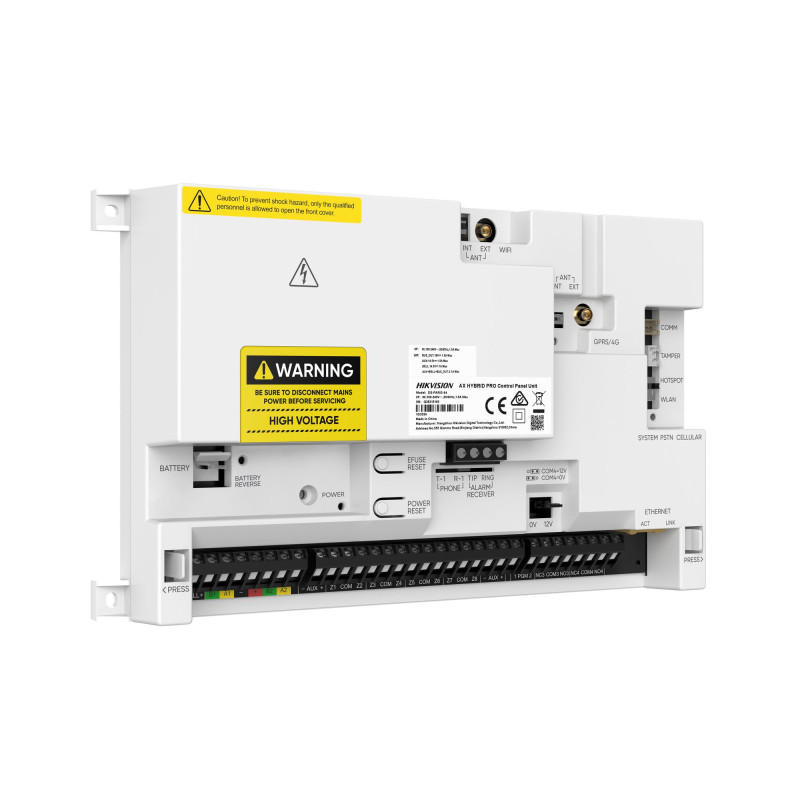

Security control panel Hikvision AX Hybrid Pro DS-PA502-64 (64 zones)
Product reference: 26-6942160499840
  • 64 zones and 64 outputs
  • 32 protection areas
  • 1 installer, 1 administrator, 62 operators
  • Two buses, up to 32 devices
  • Bidirectional messaging to ARC, ARC backup channel supported
  • Supports LAN, Wi-Fi, optional PSTN/GPRS/4G communicator
  • Supports 4-channel installed IPC video verification storage
  • Supports ISAPI and OTAP protocols
  • Standard: EN50131, class 2
Security control panel Hikvision AX Hybrid Pro DS-PA502-64 (64 zones)

Security control panel Hikvision AX Hybrid Pro DS-PA502-64 (64 zones)

Product reference: 26-6942160499840
  • 64 zones and 64 outputs
  • 32 protection areas
  • 1 installer, 1 administrator, 62 operators
  • Two buses, up to 32 devices
  • Bidirectional messaging to ARC, ARC backup channel supported
  • Supports LAN, Wi-Fi, optional PSTN/GPRS/4G communicator
  • Supports 4-channel installed IPC video verification storage
  • Supports ISAPI and OTAP protocols
  • Standard: EN50131, class 2
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
140,40 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Capacity
  • Admin 1
  • Areas 32
  • Automation scenarios 256
  • Cloud installer 120
  • Installer 1
  • Logs 4950 including 1000 mandatory in flash memory
  • User 62 Operators
  • Wireless keyfobs 64
  • Wireless tags 64
  • Communication
  • Mobile connection Compatible with DS-PC501G(Optional)Compatible with DS-PC501S(Optional)Compatible with DS-PC502S(Optional)
  • Ethernet 10/100 Mbps self-adaptive
  • Wi-Fi 802.11b/g/n (2.4GHz)
  • Device management
  • Alarm input Up to 64
  • Alarm output Up to 64
  • Keyboard Up to 8
  • PIR CAM Up to 32
  • Sounder output 12 (1 on-board)
  • Electrical characteristics
  • Battery life Up to 12 hrs
  • Battery type Rechargeable sealed lead-acid battery (not included by default)
  • Mains power ~ 100-240V 50/60Hz, 0.3A
  • Output current AUX: Up to 1.2A (protected by eFuse) BELL: Up to 1.0A (protected by eFuse)
  • Output voltage 14.5V⎓ nominal, 10.7-15 V⎓ with ripple 120 mV(VPP)
  • Power PS Type A
  • Energy consumption Quiescent current: 130 mA @15V⎓ (when on battery)
  • Power interface 1 AUX power output1 BELL power output
  • Power source Total capacity 15.3 V⎓ 2.5 A (0.5 A dedicated to battery)
  • General data
  • Application scenario Indoor
  • Dimension (W×H×D) 261 × 199 × 86.4 mm
  • Working conditions humidity -20°C to 60°C (-4°F to 140°F)
  • Working condition temperature -10°C to 40°C (14°F to 104°F)
  • Weight 1030 g (without battery)
  • Hardware features
  • Will be 2 ports of 2-way encrypted communicaiton, half-duplex, asynchronous bus
  • Protection against counterfeiting 1 tamper input

ManufacturerAX PRO
Manufacturer codeDSPA50264
Weight0.475 kg
