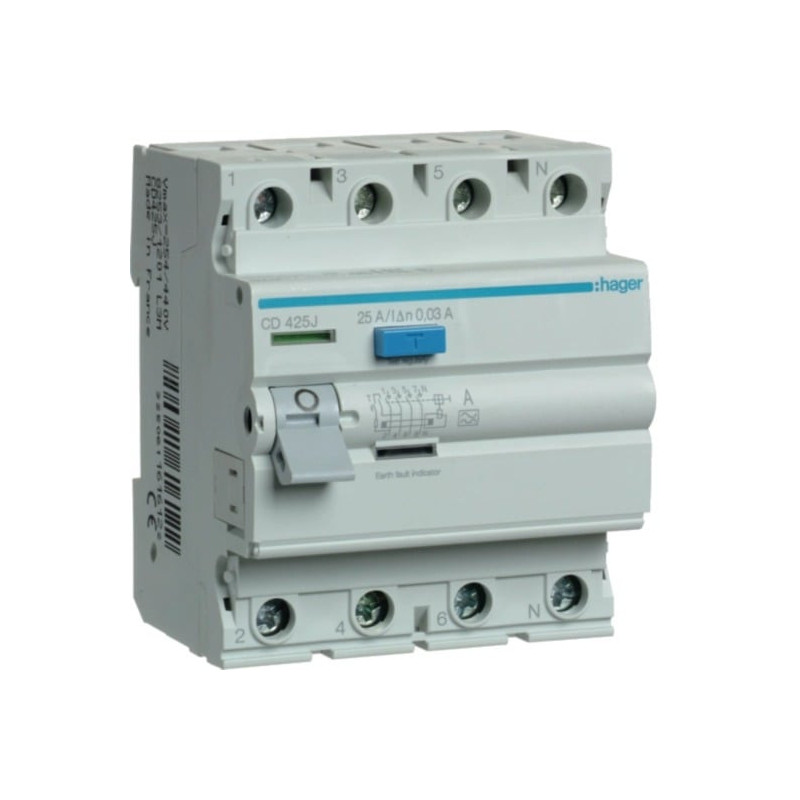

Residual current relay Hager CD425J (A, 25A, 4P, 30mA, 230V)
Product reference:
26-3250611616122
- Type: Residual Current Circuit Breaker (RCCB)
- Manufacturer: Hager
- Model: CD425J
- Number of poles: 4P
- Rated current: 25 A
- Leakage current: 30 mA
- Type: A
- Nominal voltage: 230 V
- Mounting: DIN rail
Residual current relay Hager CD425J (A, 25A, 4P, 30mA, 230V)
Product reference:
26-3250611616122
- Type: Residual Current Circuit Breaker (RCCB)
- Manufacturer: Hager
- Model: CD425J
- Number of poles: 4P
- Rated current: 25 A
- Leakage current: 30 mA
- Type: A
- Nominal voltage: 230 V
- Mounting: DIN rail
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General information
- Pile type 3P+N
- Rated current 25 A
- Rated residual operating current Idn 30 mA
- Idm disconnection and connection capability 1.50kA
- Rated conditional short-circuit current Inc (EN61008-1) 6kA
- Rated current at -25°C 25 A
- Rated current at -20°C 25 A
- Rated current at -15°C 25 A
- Rated current at -10°C 25 A
- Rated current at -5°C 25 A
- Rated current at 0°C 25 A
- Rated current at 5°C 25 A
- Rated current at 10°C 25 A
- Rated current at 15°C 25 A
- Rated current at 20°C 25 A
- Rated current at 25°C 25 A
- Rated current at 30°C 25 A
- Rated current at 35°C 25 A
- Rated current at 40°C 25 A
- Rated current at 45°C 25 A
- Rated current at 50°C 25 A
- Rated current at 55°C 25 A
- Rated current at 60°C 25 A
- Rated current at 65°C 22 A
- Rated current at 70°C 18 A
- Nominal tightening torque (upper terminal) 2.80 Nm
- Nominal tightening torque (lower terminal) 2.80 Nm
- Top connection type Screw terminal
- Bottom connection type Biconnect
- Nominal tightening torque 2.80 Nm
- Rated operating voltage Ue 230-400V
- Supply voltage type AC
- Rated insulation voltage Ui 500V
- Rated impulse withstand voltage Uimp 4,000V
- Maximum operating voltage 440V
- Frequency 50Hz
- Number of modules 4
- DIN rail mounting Yes
- Ingress protection class IP20
- Cross-section of rigid conductors 1-25 mm²
- Cross-section of flexible conductors 1-16 mm²
- Maximum cross-section of flexible conductors 16 mm²
- Maximum cross-section of rigid conductors 25 mm²
- Total power losses at IN 4.50W
- Maximum altitude above sea level 2,000 m
- Electrical durability 2,000 cycles
- Number of mechanical operations 4,000 cycles
- Connector type Screw terminal
- Top terminal layout Aligned terminal
- Bottom terminal layout Aligned terminal
- Height 83 mm
- Width 70 mm
- Depth 70 mm
| Manufacturer | Hager |
| Manufacturer code | HCD425J |
| Weight | 0.32 kg |
