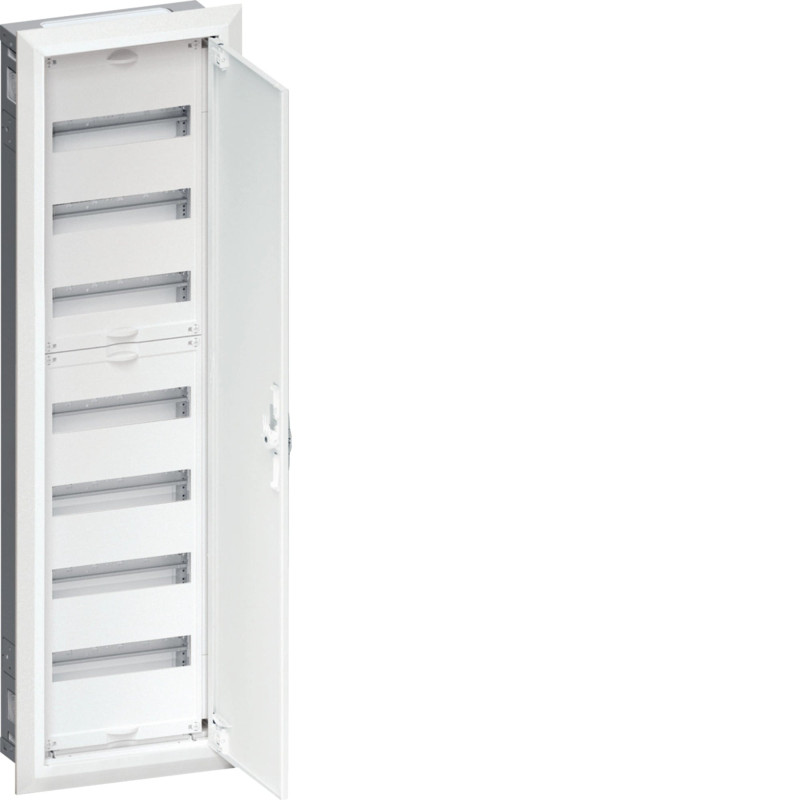

Recessed modular panel Hager FWU71S (84 mod., IP30)
Product reference:
26-HFWU71S
- Type: Recessed modular panel
- Brand: Hager
- Model: FWU71S
- Capacity: 84 modules
- Protection class: IP30
Recessed modular panel Hager FWU71S (84 mod., IP30)
Product reference:
26-HFWU71S
- Type: Recessed modular panel
- Brand: Hager
- Model: FWU71S
- Capacity: 84 modules
- Protection class: IP30
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Connection
- Number of inputs 2
- Installation, mounting
- Suitable for outdoor use No
- Mounting on Flush mounting, Hollow wall
- Electric current
- Rated current 125 A
- Equipment
- Number of rails 7
- Number of rows 7
- Number of sections in relation to width 1
- With lock No
- Has neutral terminal block Yes
- Has earthing terminal block Yes
- Has mounting plate No
- Capacity
- Number of modules 84
- Features
- Has protection main switch No
- With introductions Yes
- Dimensions
- Height 1153 mm
- Width 353mm
- Depth 125mm
- Built-in height 1102 mm
- Built-in width 310mm
- Inlet depth 112 mm
- Number of width units 12
- Cover, door
- Number of wardrobe doors 1
- Type of handle Hinged pattern handle
- Door/cover is transparent No
- Cabinet door type Single door
- Connection options
- Mounting type Screw mounting
- Materials
- Material Steel
- RAL code 9010
- Color Pure white
- Security
- Protection class Insulation class II
- Impact resistance IK IK09
- IP protection class IP30
- Lock type Without lock
- Glow wire test 850°C
| Manufacturer code | HFWU71S |
| Manufacturer | Hager |
| Weight | 0 kg |
