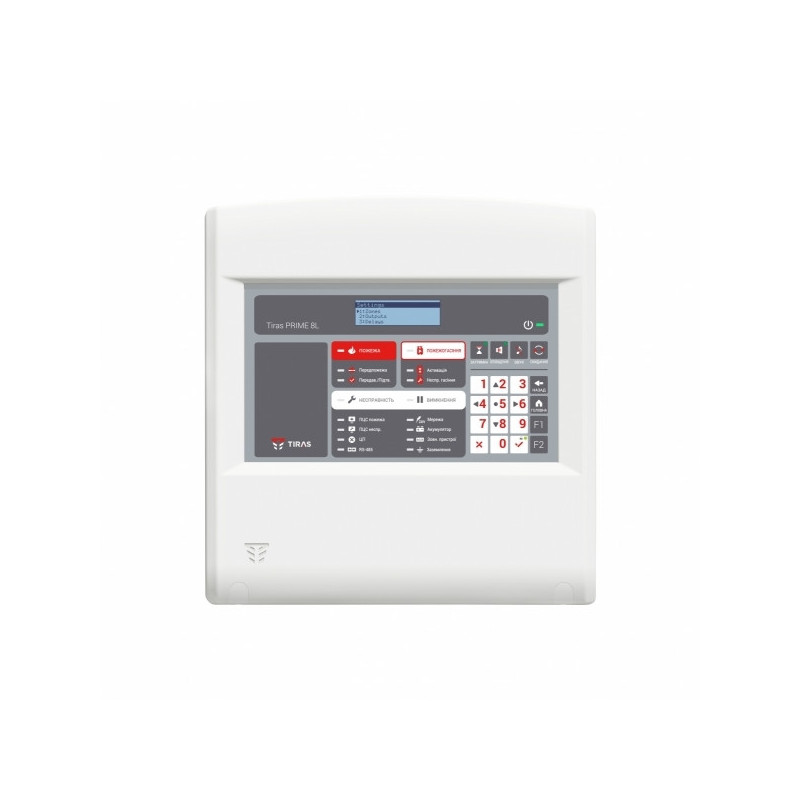

PRIME 8L tank
Product reference: 26-CGTIRASPRIME8L
  • 8 basic alarm zones with the possibility of expanding to 20 with the MZ(f) module.
  • 3 types of verification
  • 2 programmable relay outputs
  • 2 Notification controlled outputs
  • "Fire" and "Fault" outputs.
PRIME 8L tank

PRIME 8L tank

Product reference: 26-CGTIRASPRIME8L
  • 8 basic alarm zones with the possibility of expanding to 20 with the MZ(f) module.
  • 3 types of verification
  • 2 programmable relay outputs
  • 2 Notification controlled outputs
  • "Fire" and "Fault" outputs.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
126,63 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Zones
    • Number of zones: 8 basic zones, expandable to 20 zones;
    • Zone voltage: 24 V (nominal value);
    • Number of detectors in the zone: no more than 32 pcs.;
    • Terminal resistance: 6.8 kOhms or 3.9 kOhms;
    • Additional resistance resistance (two-wire circuit): 1kOm;
    • Shunt resistance (four-wire circuit): not supported.
  • Exits
    • Output types/quantities: 2 "warning" outputs, 2 programmable relay outputs, "fire" and "error" outputs.
  • Software
    • tLoader/operating system: WindowsXP/7/8/10, Android (with OTG).
  • Zone expansion modules, additional outputs
    • Modules: MZ (f), M-OUT4R.
    • Maximum number of modules: MZ (f) - 1 pc., M-OUT4R - 1 pc.
  • Power supply unit
    • Primary power supply and current consumption: 220V (-15% + 10%), 50 ± 1 Hz, 0.27 A;
    • Maximum current load on outputs (for external devices): 2x24V x400 mA;
    • Maximum current on the warning output: 2x3 A (switching);
    • Backup battery type/capacity: 2 lead-acid batteries/ 7 Ah, 12 V or 9 Ah, 12 V;
    • Minimum current consumption from the battery: 75 mA.
  • General characteristics
    • Operating temperature: nuo-5 ° c to + 40 ° c;
    • Dimensions: 350x370x96 mm;
    • Weight: 4 kg (without battery);
    • Housing material: plastic;
    • Enclosure protection class: IP30;
    • Average operating life: at least 10 years
  • Features of the fire alarm control panel
    • Inspection according to types A, B and C in zones (according to EN 54-2);
    • Event log - 1000 events;
    • Real-time clock;
    • Night and day mode;
    • Scenarios for exits;
    • USB connector;
    • Smart charger;
    • Powerful switching power supply

ManufacturerTiras
Manufacturer codeCGTIRASPRIME8L
Weight2.3 kg
