Power Supply - Armac UPS 1500VA LCD
Product reference:
14-5901969406658
This UPS device provides 950 W output power and 1500 kVA capacity, features a line interactive design with automatic voltage regulation and various protection features to guarantee a reliable power supply.
Power Supply - Armac UPS 1500VA LCD
Product reference:
14-5901969406658
This UPS device provides 950 W output power and 1500 kVA capacity, features a line interactive design with automatic voltage regulation and various protection features to guarantee a reliable power supply.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

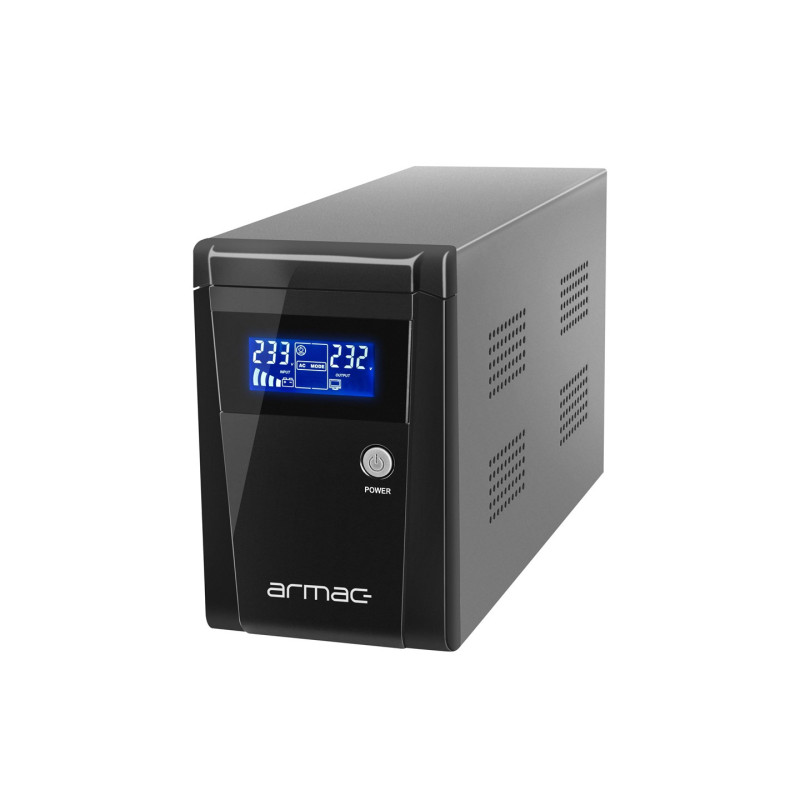

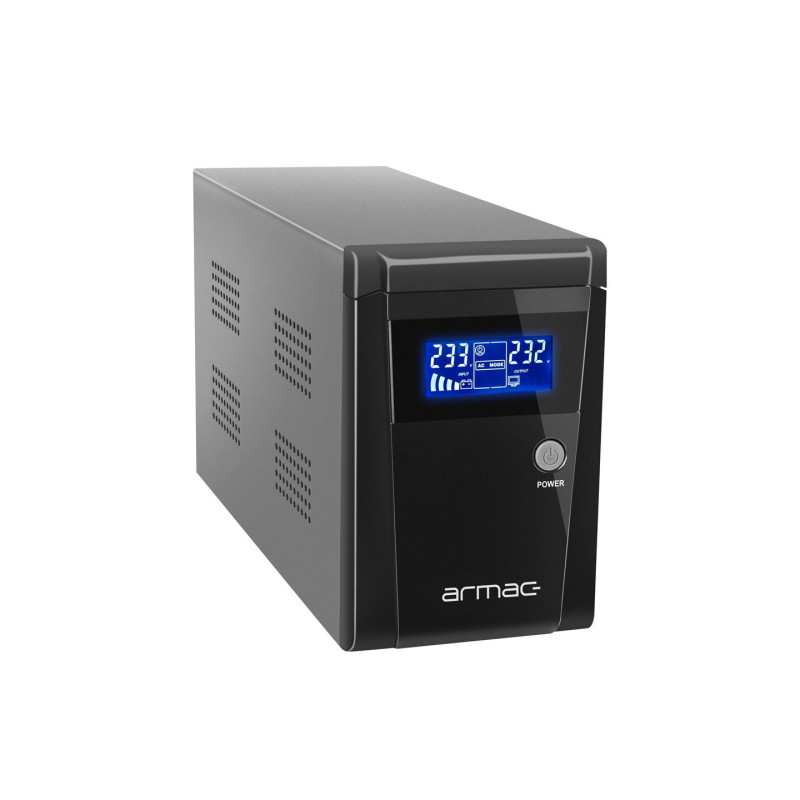

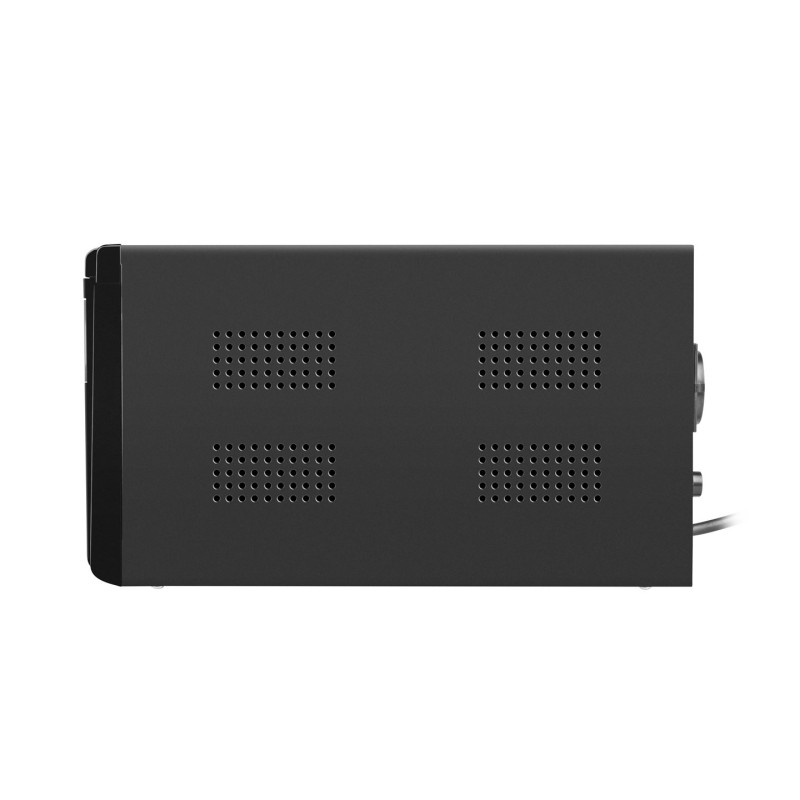

Armac UPS 1500VA LCD
Armac UPS OFFICE LINE-INTERACTIVE O/1500F/LCD is a reliable emergency power supply designed for offices and industry, ensuring a stable electricity supply in the event of disruptions.
Essential features:
- Linear interactive topology
- 950W output power
- Automatic Voltage Regulation (AVR) with protection against overvoltage, overpower, short circuit and input fuse
- Sine wave form
Features | |
|---|---|
| Noise level | 45 dB |
| Reaction time | 2 - 6ms |
| Output power | 950W |
| UPS topology | Linear interactive |
| Power protection functions | Battery discharge, surge protection, short circuit, over-power, input fuse |
| Input frequency | 45 - 65 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power capacity | 1500 kVA |
| Maximum output voltage operation | 195 V |
| Minimum output voltage operation | 255V |
| Waveform | Sin |
| Output voltage | 230V |
| Output frequency | 50Hz |
| Minimum input voltage | 145V |
| Maximum input voltage | 290V |
| Automatic reload | Yes |
Design | |
| Product color | Black |
| Form factor | Thorn |
| Built-in screen | LCD |
Operating conditions | |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (OT) | 0 - 45 °C |
Weight and dimensions | |
| Depth | 350mm |
| Width | 120mm |
| Weight | 11.2 kg |
| Height | 188 mm |
Package contents | |
| USB cable included | N |

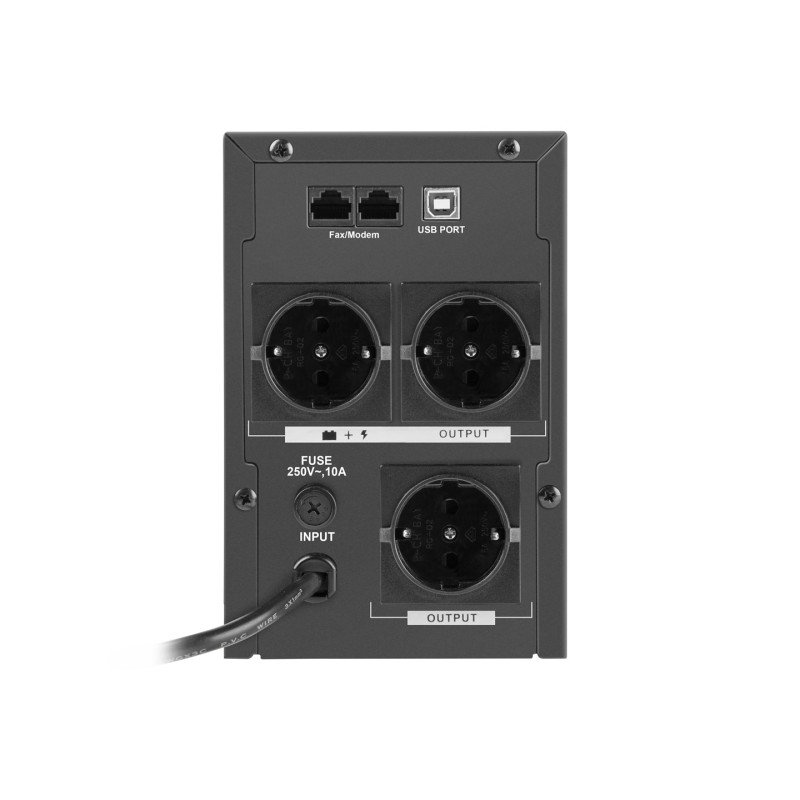

Ports and interfaces | |
| AC number of sockets | 3 AC sockets |
| RJ-45 number of ports | 2 |
| AC socket types | Type F |
| USB port | Yes |
Battery | |
| Battery technology | Maintenance-free, lead acid (AGM) |
| Battery capacity | 9 Ah |
| Number of supported batteries | 2 |
| Battery voltage | 12V |
| Typical backup time at half load | 20 minutes |
| Battery charging time (90%) | 6 hours |
| Cold start | Yes |
| Automatic battery test | Yes |
| Typical backup time at full load | 3 minutes |
| Height | 200mm |
| Length | 450mm |
| Weight | 12500 grams |
| Width | 350mm |
