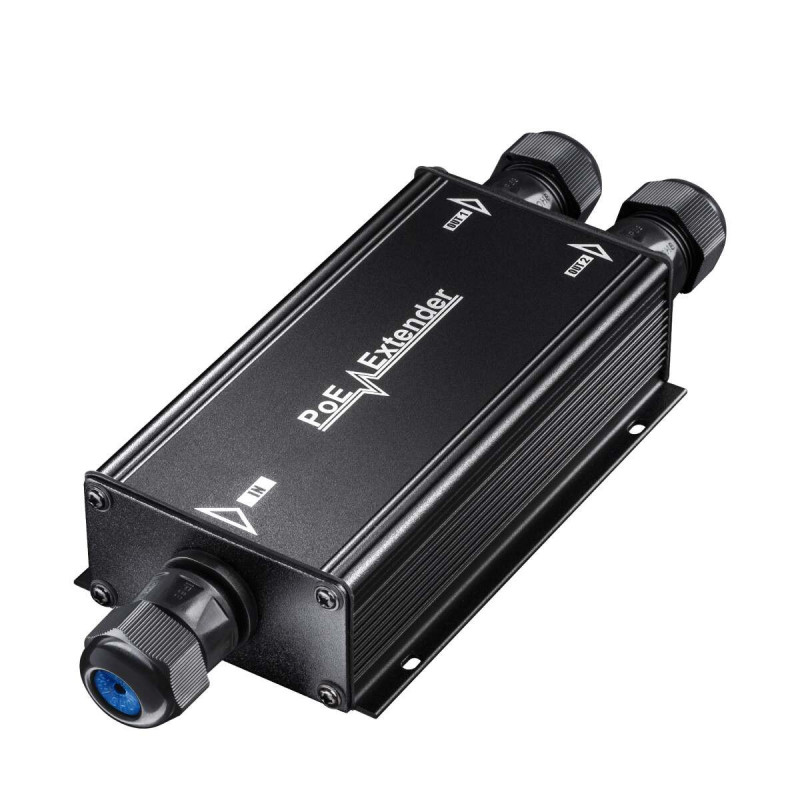

PoE extender Cudy POE25
Product reference: 26-6971690791506
  • Type: PoE extender
  • Model: CUDY POE25
  • Uplink: 1 x GbE 802.3bt/at/af
  • PIN modes: Mode A, Mode B, Four-Pair
  • Downlink: 2 x GbE 802.3at/af
  • Transmission distance: 100m @ GbE
  • Input power: 60 W
  • Output: 2 x 30W
PoE extender Cudy POE25

PoE extender Cudy POE25

Product reference: 26-6971690791506
  • Type: PoE extender
  • Model: CUDY POE25
  • Uplink: 1 x GbE 802.3bt/at/af
  • PIN modes: Mode A, Mode B, Four-Pair
  • Downlink: 2 x GbE 802.3at/af
  • Transmission distance: 100m @ GbE
  • Input power: 60 W
  • Output: 2 x 30W
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
69,65 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version POE25 1.0
  • Supported protocols IEEE 802.3i (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps), 802.3x (Flow Control), 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
  • Uplink traffic 1× GbE, 802.3af/at
  • Uplink PIN assignment Mode A / Mode B
  • Downlink traffic 2× GbE, 802.3af/at
  • Downlink PIN assignment Mode A
  • Transmission distance Cat 5e or higher: 100 m at Gigabit
  • Power input ≥60W recommended
  • Maximum output power 2× 30W
  • Note on output power Actual output depends on input
  • Maximum power consumption 2W
  • Customer protection Polarity Protection, Overvoltage Protection, Short-Circuit Protection, Automatic Voltage Regulation
  • EMC compliance IEC/EN 61000-4-2 Level 3 (ESD Contact: 6kV, Air: 8kV)
  • Grounding method Grounding Point
  • Ambient operating temperature -25°C ~ 55°C (-13°F ~ 131°F)
  • Storage temperature -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity 10% ~ 100% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Intrusion protection IP67
  • Certificates FCC, CE
  • Daisy Chain Support Up to 3 extenders in a chain
  • Installation type Desktop, Wall-mount
  • Dimensions 230×90×40 mm (9.06×3.54×1.57 inches)
  • Housing material Metal
  • Product weight 305g (10.76oz)

ManufacturerCudy
Manufacturer codeCUDYPOE25
Weight0.333 kg
