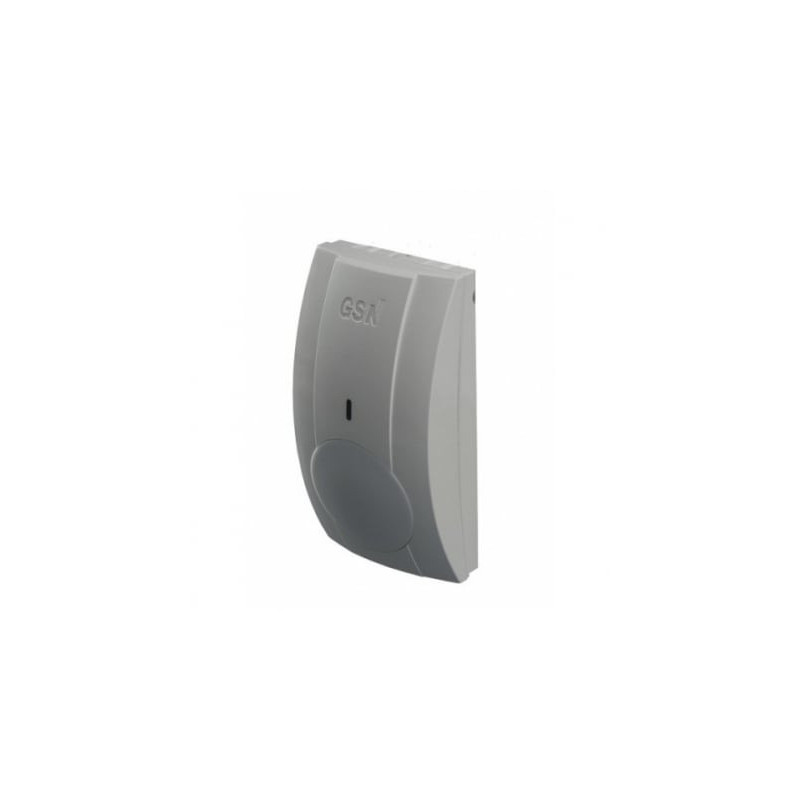

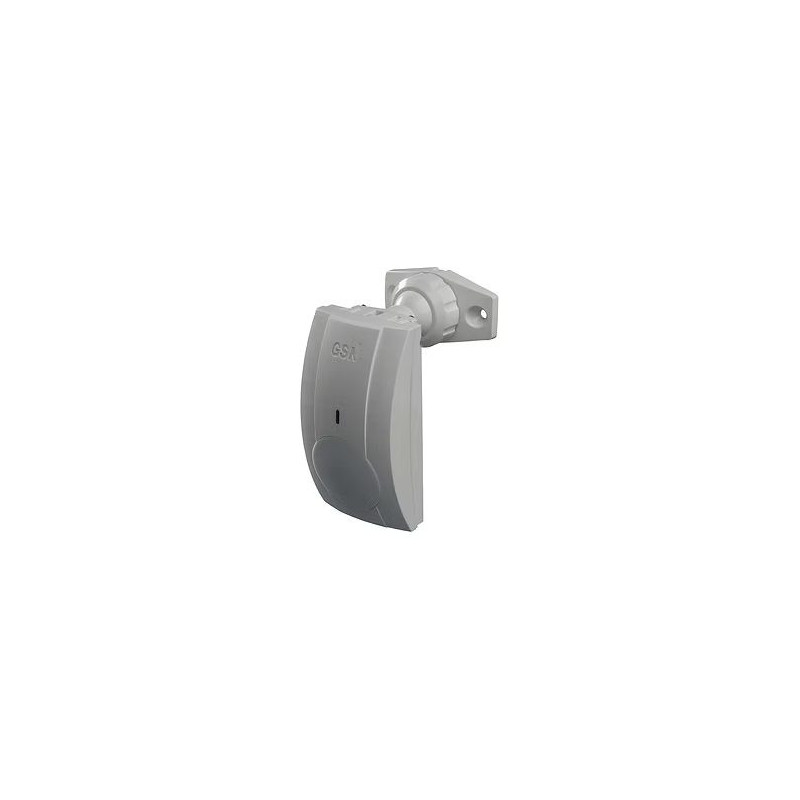

PIR Detector PATROL 203 PET
Product reference: 26-JGP203PET
  • IR motion detector with dual pyrosensor.
  • PET function
PIR Detector PATROL 203 PET

PIR Detector PATROL 203 PET

Product reference: 26-JGP203PET
  • IR motion detector with dual pyrosensor.
  • PET function
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
12,26 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Supply voltage

8.5-16VDC

Standby power consumption

12mA

Current consumption in alarm mode

16.5mA

Preparation time for work

60sec

Detection zone

15.6mx 120º

Detection speed

0.3 - 3m/sec

Relay output

NC; 60V; 100mA; 16Ω

Tamper output

NC; 10Ω

Alarm time

3 seconds

Restart time (Reset)

5 ± 1sec

PET mode

10/20kg

Mounting height

2.0 - 2.5m

Lightfastness without sunlight filter

no less than 6500 Lux

Lightfastness with sunlight filter

more than 30,000 Lux

Working temperature

- 30ºC +60ºC

Storage temperature

- 50ºC +80ºC

RFI immunity

30V/m at a frequency range of 30MHz-1GH

EMI resistance

50,000V

Measurements

54mm x 33mm x 99mm

Weight

75g

posters 203 pet

Patrol-203PET


Manufacturer codeJGP203PET
ManufacturerGSN
Weight0.066 kg
