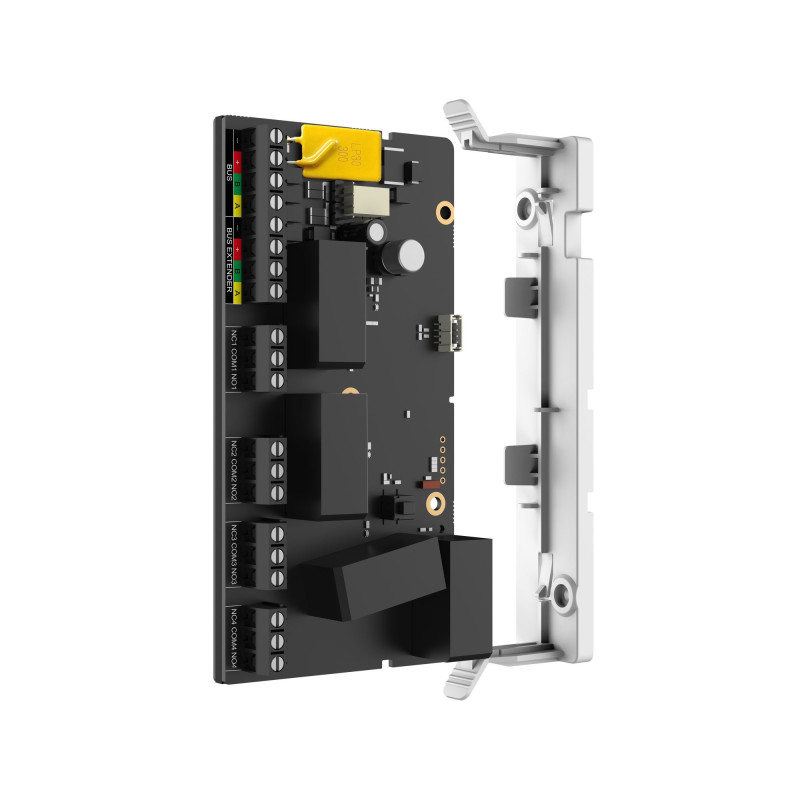

Output module Hikvision AX Hybrid Pro DS-PM1-O4H-WE (4 relays, without housing)
Product reference:
26-6936422172466
- Supports 4 relay outputs for flexible control
- Integrated bus extender for longer bus range
Output module Hikvision AX Hybrid Pro DS-PM1-O4H-WE (4 relays, without housing)
Product reference:
26-6936422172466
- Supports 4 relay outputs for flexible control
- Integrated bus extender for longer bus range
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Bus interconnection
- Bus extender Yes
- Trunk technology Half-Duplex RS-485
- Trunk cables 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
- Compliance
- EN 50131 Security Grade 2, Environmental Class II
- Electrical compliance CE, CB
- Environmental
- Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
- Relative humidity 10% ~ 90% non-condensing
- Storage temperature -20°C to 60°C (-4°F to 140°F)
- Outputs
- Max. number of outputs 4
- Integrated relay outputs 4
- Physical
- Dimension (W × H × D) 110 × 155 × 31mm
- Installation method Wall mount
- Protection against counterfeiting Front and Rear
- Weight 272 g
- Power supply - general
- Input voltage 12 VDC nominal (9~16 VDC), powered by bus
- Max. current 300 mA @12VDC
- Standby current 200 mA @12VDC
- Relay output
- Relay output SPDT relay, 16A 24VDC, 16A 250VAC
| Manufacturer | AX PRO |
| Manufacturer code | DSPM501R4UNIT |
| Weight | 0.12 kg |
