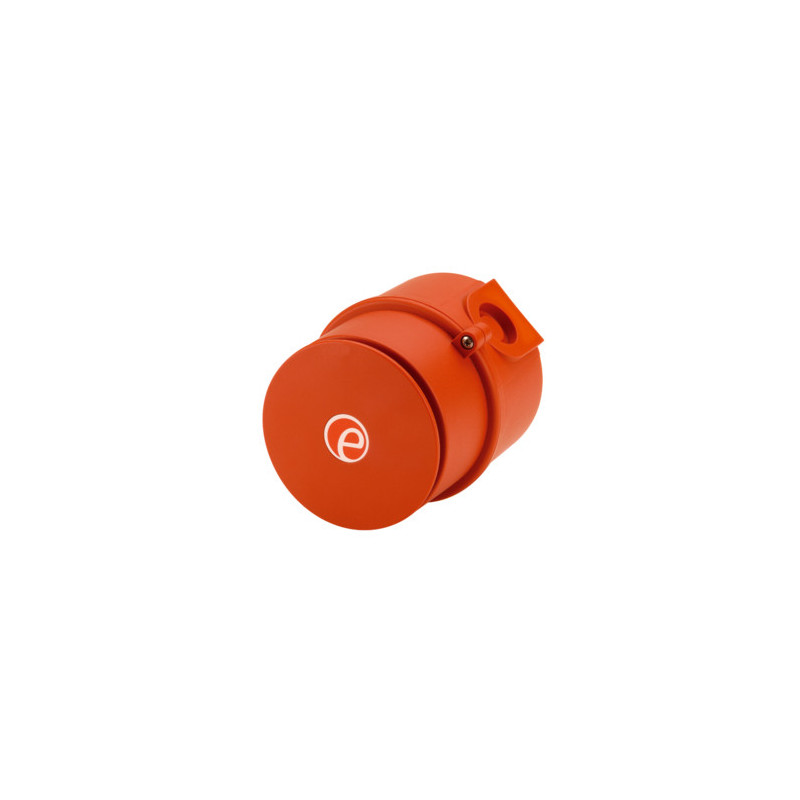

Outdoor fire siren for explosive environments E2S IS-MA1 (without flash, 100dB, -40° +60°C, IP65)
Product reference:
26-SGE2SISMA1
- For explosive environments
- Maximum volume: 100dB
- Working conditions: -40° +60°C
- IP65
Outdoor fire siren for explosive environments E2S IS-MA1 (without flash, 100dB, -40° +60°C, IP65)
Product reference:
26-SGE2SISMA1
- For explosive environments
- Maximum volume: 100dB
- Working conditions: -40° +60°C
- IP65
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Nominal output 100dB(A) @ 1m +/- 3dB - Tone 2*[91dB(A) @ 10ft/3m]
- Number of tons 49 (UKOOA/PFEER compliant)
- Number of stages 3
- Audio control Max. 100dB(A); Min. 90dB(A) - Tone 2
- Effective range 40m/131ft @ 1KHz
- Rated voltage 16-28vdc via Zener barrier or galvanic isolator
- Rated current 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
- IP class IP65
- Rating Continuous
- Housing material UL94V0 5VA FR ABS
- Body color RAL3000 Red
- Fasteners Stainless Steel
- Cable entries 2 x M20 clearance gland knockouts. Custom configurations also available.
- MTBF 273.1 years / 2,392,344 hours - MIL 217
- Contacts 0.5 to 2.5mm²
- Operating temperature -40° to +60°C [-40 to +140°F]
- Storage temperature -40° to +70°C [-40 to +158°F]
- Relative humidity 90% at 20°C [68°F]
- Weight 0.36Kg / 0.79Ibs
| Manufacturer | E2S |
| Manufacturer code | SGE2SISMA1 |
| Weight | 0.000000 kg |
