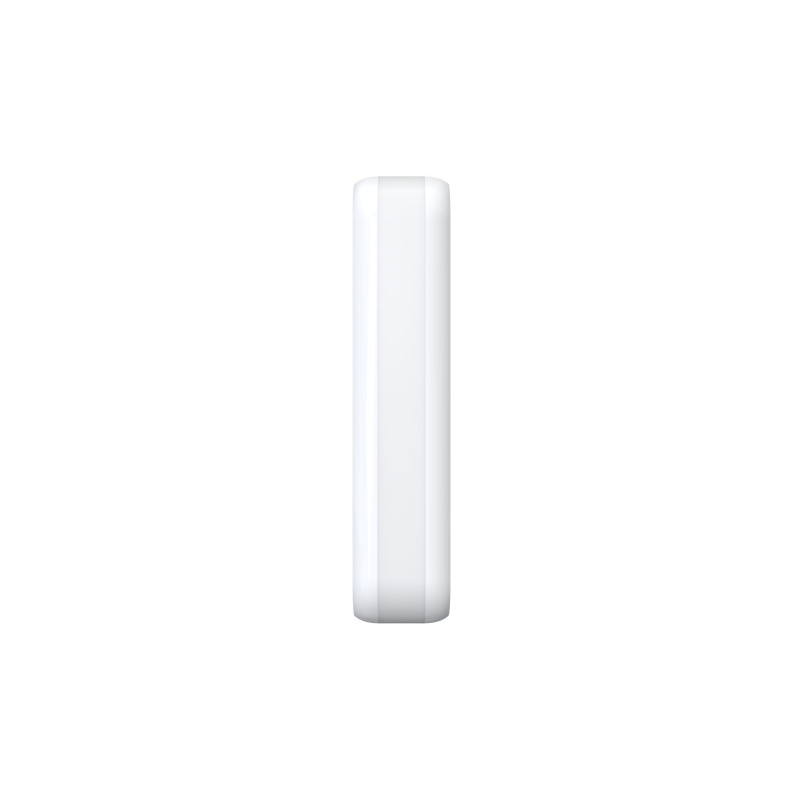

Outdoor and indoor PIR + microwave curtain Ellipse detector Hikvision DS-PDC10DM-VG3
Product reference: 26-6931847124724
  • Slim design allows for installation on window frames
  • EOL anti-counterfeiting protection
  • Active IR anti-masking
  • Protection against damage
  • Automatic sensitivity
  • IP65
Outdoor and indoor PIR + microwave curtain Ellipse detector Hikvision DS-PDC10DM-VG3

Outdoor and indoor PIR + microwave curtain Ellipse detector Hikvision DS-PDC10DM-VG3

Product reference: 26-6931847124724
  • Slim design allows for installation on window frames
  • EOL anti-counterfeiting protection
  • Active IR anti-masking
  • Protection against damage
  • Automatic sensitivity
  • IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35,36 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Fixing
  • Fixing method Passive Infrared;Microwave
  • Capture range

    Wall Mount：10m

    Ceiling Mount：6m
  • Locking angle 5°
  • Capture zones 32
  • Capture speed 0.2～3m/s
  • Sensitivity Car
  • White light filter 6500lux
  • Microwave frequency 24GHz(24.15～24.25GHz)
  • Digital temperature compensation Support
  • Protection against ground-crawling creatures Support
  • Anti-masking function Support
  • Features
  • Digital processing Support
  • Protected/enclosed optics Support
  • Protection against counterfeiting Front;Rear
  • One-way locking Support
  • Interface
  • Alarm output Normally Closed
  • LED indicator Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)
  • Transmission
  • Transmission method Wired
  • Electrical characteristics
  • Energy consumption 22mA Max
  • Power supply 9 to 16 VDC
  • Characteristic voltage 12VDC
  • Home
  • Working conditions -25 °C to 60 °C (-13 °F to 140 °F)
  • Operating conditions -25 °C to 60 °C (-13 °F to 140 °F)
  • Moisture resistance 10% to 90%
  • IP rating IP65
  • Size(WxHxD) 29.2mm × 134.4mm × 39.5mm
  • Weight 79g
  • Mounting height 2 to 4m
  • Installation method Wall;Ceiling
  • Application Indoor,Outdoor
  • Holder L-shaped adapter included

ManufacturerHikvision
Manufacturer codeDSPDC10DMVG3
Weight0.08 kg
