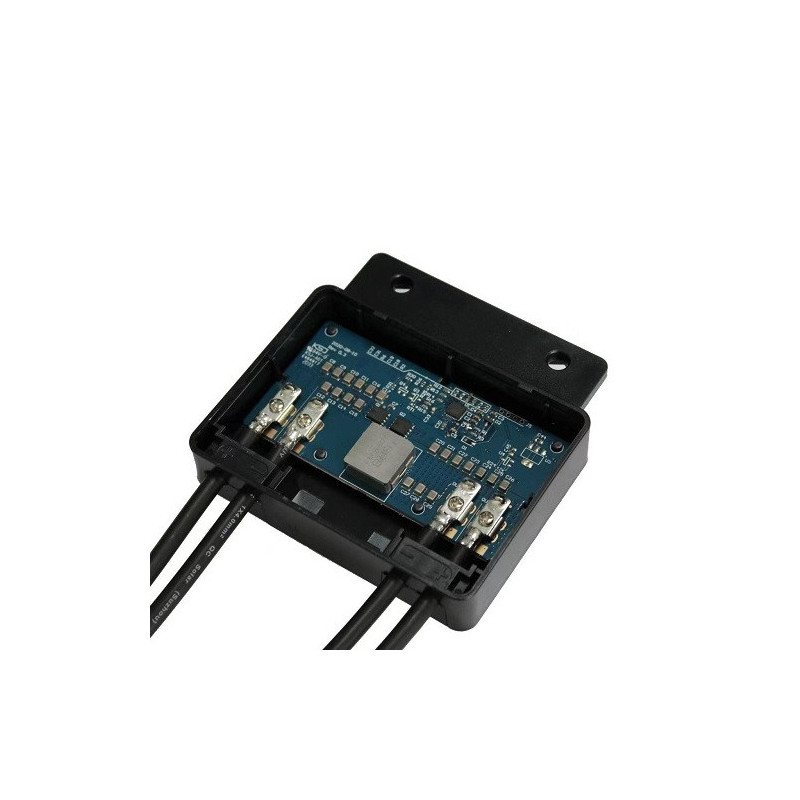

Optimizer - disconnector 600W

Optimizer - disconnector 600W
Features:
With module level optimization. 99.5% efficiency.
15A 600W, compatible with various PV modules.
Reduces PV panel mismatch losses, suitable for complex and variable installation locations.
Lower maintenance costs.
Waterproof and dustproof (IP68), flameproof (UL 94-5VA), with short circuit protection.
Safe and reliable for photovoltaic panels in the shade.
Technical data:
DC input:
DC input power: 600W.
Max. input voltage: 55V.
MPPT voltage: 8-55V DC.
Maximum input current: 15A DC.
Maximum efficiency: 99.5%.
DC output:
Max output current: 15A DC.
Max output voltage: 42V DC.
Surge protection: 18A DC.
General parameters:
Voltage: 1500V DC.
Connector: QC4.10 / MC4.
Contact resistance: <0.5mOm.
Wire size: 5.7 / 6.1 / 6.4 mm.
Cable length: input 0.5m, 1m.
Protection class: IP68.
Safety standards: UL1741,IEC62109-1.
EMC: IEC61000-6-2, IEC61000-6-3.
Flammability standard: UL 94-5VA.
Operating temperature: -40°C ~ +85°C.
Weight: 510g.
Dimensions: 105x100x21mm.
Warranty: 24 months
